Quick Details
-
Weight (KG):
-
350
-
Voltage:
-
380 V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHIEN, ZHIEN Machinery
-
Dimension(L*W*H):
-
(L)2750*(W)1000*(H)1450mm
-
Usage:
-
Plasticine Packaging Machine
-
Packing speed:
-
30-120bags/min
-
Bag length:
-
L:80-100mm W:50-160mm
-
Film Width:
-
Max.350mm
-
Machine Weight:
-
750KG
-
Power:
-
380V 50HZ 4.95KVA
-
keyword:
-
Play Dough Packing Machine
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, counting
-
Packaging Type:
-
Bags, Film, Foil, Pouch, case
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
350
-
Voltage:
-
380 V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHIEN, ZHIEN Machinery
-
Dimension(L*W*H):
-
(L)2750*(W)1000*(H)1450mm
-
Usage:
-
Plasticine Packaging Machine
-
Packing speed:
-
30-120bags/min
-
Bag length:
-
L:80-100mm W:50-160mm
-
Film Width:
-
Max.350mm
-
Machine Weight:
-
750KG
-
Power:
-
380V 50HZ 4.95KVA
-
keyword:
-
Play Dough Packing Machine

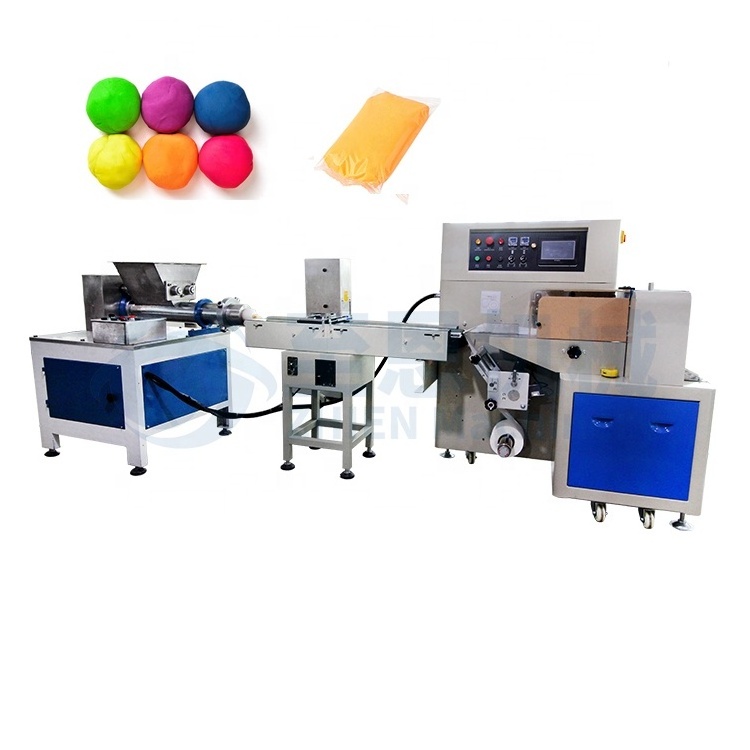

Colored Clay Play Dough Plasticine Quantitative Feeding Cutting Bag Packing Machine
▶Machine Overview
▶Application
This automatic flow packing machine with extruder is suitable for playdough (toy clay, light clay, colored clay, oil clay, water-based clay, space clay, pearl clay, snow clay, clay, ultra-light clay), and soft food, etc auto feeding, cutting and packing into bags.
▶Parameter
|
Model
|
ZE-350Q
|
|
Film Packing Width
|
≤350mm
|
|
Film Packing Thickness
|
30-70 um
|
|
Film size
|
Outer diameter Φ≤300mm，
Inner diameterΦ≤75 mm
|
|
Bag size
|
L(65-180)*W(50-160)*H(3-45)mm
|
|
Packing speed
|
30-200 bags/min
|
|
Voltage
|
380V 50Hz 4.95kw
|
|
Size
|
3000*1100*1380mm(L*W*H)
|
|
Weight
|
750KG
|
Products Description
Characteristic and Advantage
1. Double inverter control, bag length is set to cut, no need to adjust the empty walk, one-step, save time and film.
2. Human-machine interface, convenient and quick parameter setting.
3. Fault self-diagnosis function, fault display at a glance.
4. High-sensitivity photoelectric eye color scale tracking, digital input sealing and cutting position, so that the sealing and cutting position is more accurate.
5. Independent PID control of temperature, better suitable for various packaging materials.
6. Positioning stop function, no sticky knife, no waste of package film.
7. Simple transmission system, more reliable work, more convenient maintenance.
8. All controls are realized by software, convenient for function adjustment and technology upgrade, never lag behind.
9. This machine can complete automatic measuring, mud squeezing, mud cutting and packing functions independently.
