Quick Details
-
Dimension (L*W*H):
-
440*420*178MM
-
Weight:
-
48KG
-
Protection Class:
-
IP67
-
Item:
-
48v lithium ion battery
-
Battery type:
-
Lithium Iron Phosphate Battery
-
Nominal Voltage:
-
48V DC
-
Normal Capacity:
-
100Ah
-
Size:
-
482*420*178mm
-
Compatible inverter:
-
Victron,Goodwe,Sofar,Growatt
-
Cycle life:
-
10 years
-
Product name:
-

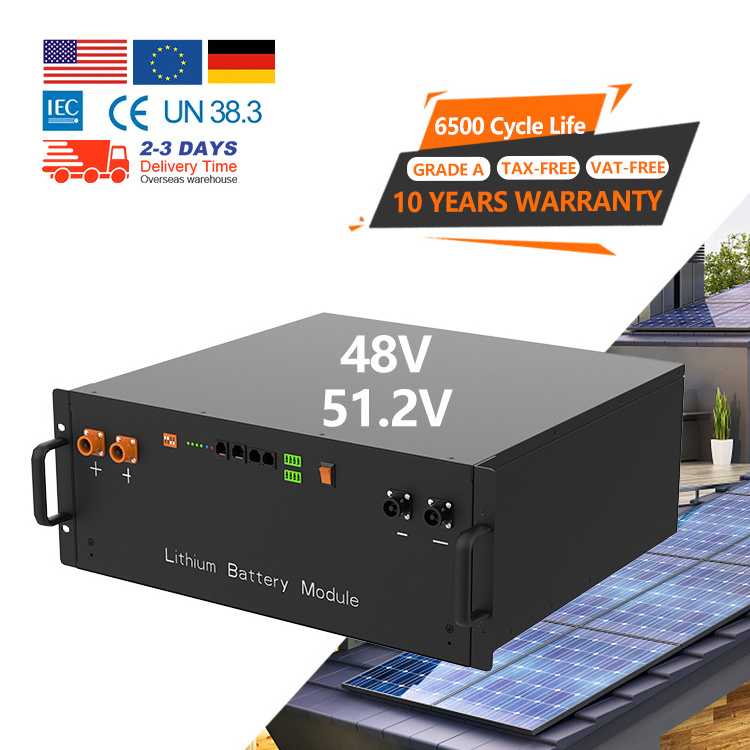

Home Lithium LiFePO4 Battery 48V 5kWh 6000 cycles Off Grid ESS
Quick Details
-
Model Number:
-
TE2000, TE4000 48V 100Ah
-
Brand Name:
-
Lithtech
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
440*420*178MM
-
Weight:
-
48KG
-
Protection Class:
-
IP67
-
Item:
-
48v lithium ion battery
-
Battery type:
-
Lithium Iron Phosphate Battery
-
Nominal Voltage:
-
48V DC
-
Normal Capacity:
-
100Ah
-
Size:
-
482*420*178mm
-
Compatible inverter:
-
Victron,Goodwe,Sofar,Growatt
-
Cycle life:
-
10 years
-
Product name:
-
Home Lithium LiFePO4 Battery 48V 5kWh 6000 cycles Off Grid ESS
Battery Features
Choice LCD Display
Battery is with digital display which allow users to monitor voltage of each serial of cells, battery’s rated voltage and capacity, temperatures and BMS parameters etc.
Support max. 32 parallel
If without master control, it support max. 32 parallels for highest 160Kwh battery system; If with standard master controls, it can be paralleled and serialed with more batteries.
Global Warehouse
Battery Functions
|
Model No
|
TE2000
|
TE4000
|
customization
|
customization
|
customization
|
||||
|
Voltage
|
48 V/51.2V
|
48 V/51.2V
|
48 V/51.2V
|
48 V/51.2V
|
48 V/51.2V
|
||||
|
Capacity
|
50Ah
|
100Ah
|
150Ah
|
200Ah
|
300Ah
|
||||
|
Energy
|
2.4KWH
|
5.12KWH
|
7.68KWH
|
10.24KWH
|
15.36KWH
|
||||
|
Operation voltage
|
35.25-54.75 Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
||||
|
Max.charging voltage
|
54.75Vdc
|
58.4 Vdc
|
58.4 Vdc
|
58.4 Vdc
|
58.4 Vdc
|
||||
|
Max.charging and discharging current
|
50A
|
100A
|
100A
|
100A
|
100A
|
||||
|
Max Power
|
2400W
|
5120W
|
7680W
|
10240W
|
15360W
|
||||
|
Life time(25°C)
|
10 years
|
|
|
|
|
||||
|
Life cycles(80% DOD, 25°C)
|
6500+ Cycles
|
|
|
|
|
||||
|
Storage time / temperature
|
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
|
|
|
|
|
||||
|
Operation temperature
|
-20°C to 60°C @60+/-25% Relative Humidity
|
|
|
|
|
||||
|
Storage temperature
|
0°C to 45°C @60+/-25% Relative Humidity
|
|
|
|
|
||||
|
Lithium Battery Standard
|
U.L1642, IEC62619, UN38.3, ROHS,CE-EMC
|
|
|
|
|
||||
|
Enclosure protection rating
|
IP65
|
|
|
|
|
||||
|
Dimensions(L×W×H)mm
|
482*410*89
|
482*410*89
|
482*430*222
|
482*500*280
|
482*500*280
|
||||
|
Weight
|
25KG
|
43KG
|
65KG
|
82KG
|
112KG
|
||||
