Item
|
Descirption
|
Flow Chart
|
raw water→ raw water pump→quartz sand filter→activated carbon filter→water softener(optional) →security filter →one stage high
pressure pump→one stage RO system →UV light/ozone generator →water supply point
|
Raw water tank
|
Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously
for whole system. Customer provides for themselves, because big size will result in expensive freight.
|
Raw water pump
|
provide the pressure to quartz sand filter/active carbon filter
|
Automatic sand filter
|
Get rid of turbidity, suspended matter, organic matter, colloid, ect
|
Activate carbon filter
|
Remove the color, free chloride, organic matter, harmful matter, ect.
|
Water softener, demineralizer, or called Na+ exchanger
|
Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw
water, System can make resin intelligently regenerate, recycling
|
Security filter or pp filter, or called PP sediment filter
|
Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
|
High pressure pump
|
Provide the high pressure to RO membrane
|
RO system
|
main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
|
Salt Water Tank
|
It can achieve continuous deionization and continuous regeneration of ion exchange resins.
|
UV sterilizer
|
kill bacteria
|
Voltage
|
220V/50Hz,220V/60Hz,380V110V Single phase or three phase, 440V 60hz 3phase or customization
|
Desalination
|
96%-99%
|
Application raw water
|
Tap water, city water, ground water,well water, borehole water
|
Raw water TDS
|
0-2500ppm
|

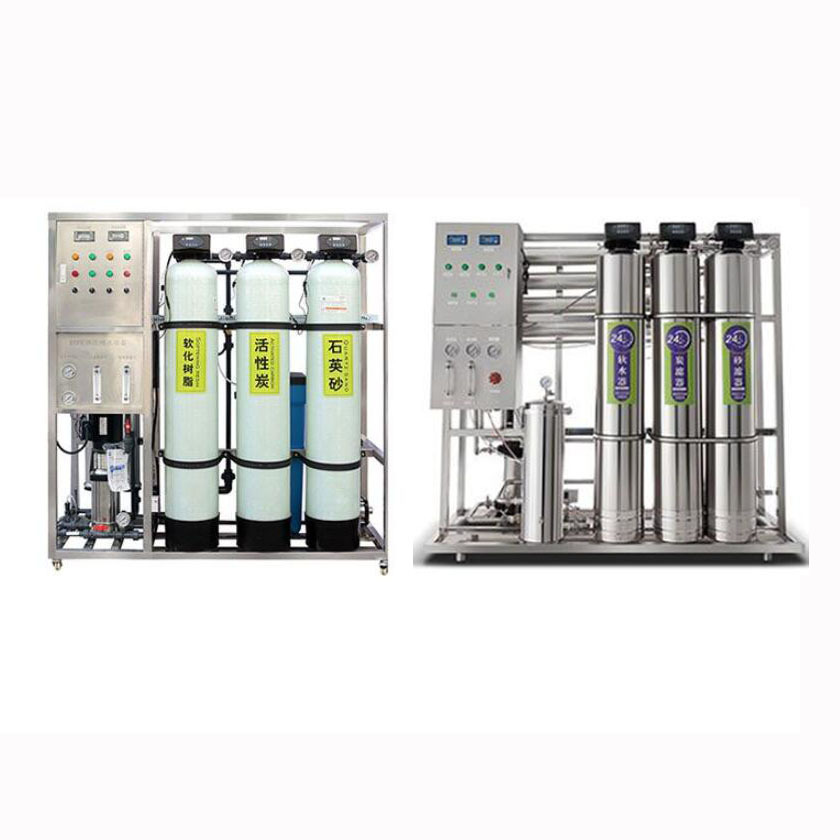

Material
|
Stainless Steel 304 or FRP Fiberglass
|
RO Membrane
|
Aromatic polyamide; The pore diameter of RO reverse osmosis membrane is as small as nanometer. Under the pressure, water molecules
can pass through RO membrane, while inorganic salts, heavy metal ions, organics, colloids, bacteria, viruses and other impurities
cannot pass through RO membrane
|
Application
|
· Various kinds of pure water and drinking water purification
|
|
· Industrial water purification and useful material recycling
|
|
· Medical sterile water and water for injection to manufacture
|
|
· Juice concentrated and refined
|
|
· Minerals purification and sterile
|
|
· Process water purification and sterile
|
|
· Wine and lighter white spirit refined through membrane method
|
|
1)Electronic industry, semiconductor industry ultrapure water treatment
|
|
2)Chemical industry, pharmaceutical industry pure water treatment
|
|
3)Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
|
|
4)Electroplating and leather industry waste water treatment
|
|
5)Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
|
|
6)Cosmetic products, car battery, liquid fertilizer production pure water treatment
|
|
7)Edible cube ice, tube ice etc.
|
|
8)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure
|
|
boiler water treatment
|
