Quick Details
-
Model Number:
-
HKB-201/402
-
Mechanical Life:
-
100000
-
Product name:
-

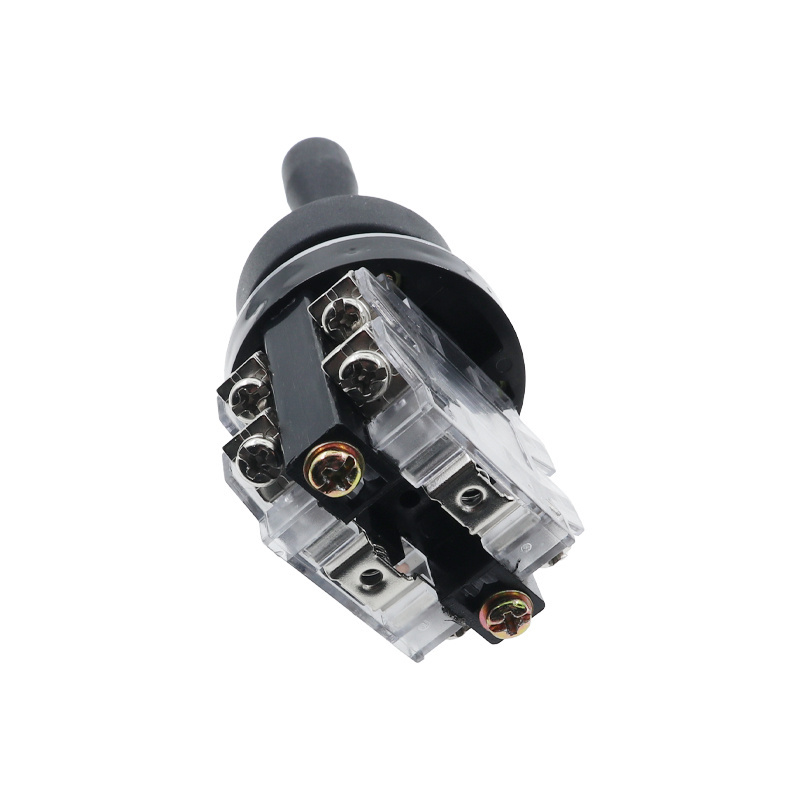

Cross Switch
-
Rated Voltage:
-
150/250/600V
-
Rated Current:
-
5/10/15A
-
Conductive material:
-
Copper
-
Contact material:
-
Silver alloy
-
Mechanical life:
-
100000 times
-
Electrical life:
-
100000 times
-
Hole size:
-
30mm
-
Product form:
-
2 direction / 4 direction
-
Operating characteristics:
-
Automatic Reset / Self-locking
Quick Details
-
Max. Voltage:
-
600V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FzOlink
-
Model Number:
-
HKB-201/402
-
Mechanical Life:
-
100000
-
Product name:
-
Cross Switch
-
Rated Voltage:
-
150/250/600V
-
Rated Current:
-
5/10/15A
-
Conductive material:
-
Copper
-
Contact material:
-
Silver alloy
-
Mechanical life:
-
100000 times
-
Electrical life:
-
100000 times
-
Hole size:
-
30mm
-
Product form:
-
2 direction / 4 direction
-
Operating characteristics:
-
Automatic Reset / Self-locking
More product options
Product Parameters
Product Feature
●
Durability: The cross rocker switch is made of high quality materials and manufacturing process
●
Electrical conductivity: The cross rocker switch uses copper guide silver alloy contacts, which has excellent electrical conductivity
●
Compatibility: Suitable for all kinds of equipment, such as automobile control panel, aircraft control, industrial equipment, etc
●
Anti-slip design: The surface of the cross rocker switch is made of high-quality rubber material to increase the anti-slip texture
● E
asy to clean and maintain: The surface design of the switch is easy to clean and maintain
● Comfortable feel: The rocker design is ergonomic, providing a comfortable grip and operating experience.
● Comfortable feel: The rocker design is ergonomic, providing a comfortable grip and operating experience.
Quality service: We provide quality pre-sale and after-sales service to ensure that the products you buy can be fully guaranteed and supported.
|
Product name
|
Cross Switch
|
Product model
|
HKB-201/402
|
||
|
Rated voltage
|
150/250/600V
|
Rated current
|
5/10/15A
|
||
|
Wire size
|
24 AWG
|
Opening diameter
|
30mm
|
||
|
Material
|
Connector shell: Plastic.
Contact point: Silver.
Conductor: Copper.
Rocker non-slip sleeve: Rubber.
|
Durability
(Electrical and Mechanical life)
|
100000 times
|
||
|
Contact type
|
2NO/4NO
|
Product Features
|
Two-way Automatic Reset/Self-locking
Four-way Automatic Reset/Self-locking
Four-way/up and down Automatic Reset, left and right Self-locking
|
||
|
Applicable scene
|
Automotive control panel, Aircraft control, Industrial equipment, Entertainment equipment, Medical equipment
|
|
|
||
The cross rocker switch is mainly used in occasions where multiple directions need to be controlled, such as:
1. Construction machinery control panel: used to control the direction of operation of the robot arm
2. Aircraft control: used to control various parameters of unmanned aerial vehicles, such as flight altitude, speed, direction, etc.
3. Industrial equipment: used to control the operation of industrial equipment, such as robots, automation equipment, etc.
4. Entertainment equipment: parameters used to control game consoles, audio and other entertainment equipment
5. Medical devices: used to control the parameters of medical devices, such as adjusting the position and Angle of medical instruments.
More optional model
Thank you for taking the time to familiarize yourself with our Monolever Switch products. We understand the importance of selecting the appropriate switch for your project, and we are delighted by your interest in our offerings. Please do not hesitate to reach out to us as we have a wider range of similar products available. We firmly believe that these products will effectively meet your requirements while enhancing convenience and efficiency in your work.
