Quick Details
-
Voltage:
-
3phase 380V/240V/50HZ/60HZ
-
Disc Dia.:
-
None
-
No Load Speed:
-
None
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WeiLongDa
-
Model Number:
-
WLD9100
-
Warranty:
-
1 year
-
Air Flow:
-
24000m3/h.
-
Air Speed:
-
0.3-0.5m/s.
-
Color choice:
-
blue,red,orange,white
-
Vehicle Suited:
-
Saloon Car
-
Wall panels:
-
50mm EPS
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Control System:
-
Micro-computer Control Panel
-
Filters:
-
4-stage Filter System
-
Lighting System:
-
40pcs LED Lights
-
Warranty Time:
-
12 Months
Quick Details
-
Power:
-
12kw
-
External Size:
-
7000X5430X3250mm
-
Internal Size:
-
6900X3900X2600mm
-
Voltage:
-
3phase 380V/240V/50HZ/60HZ
-
Disc Dia.:
-
None
-
No Load Speed:
-
None
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WeiLongDa
-
Model Number:
-
WLD9100
-
Warranty:
-
1 year
-
Air Flow:
-
24000m3/h.
-
Air Speed:
-
0.3-0.5m/s.
-
Color choice:
-
blue,red,orange,white
-
Vehicle Suited:
-
Saloon Car
-
Wall panels:
-
50mm EPS
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Control System:
-
Micro-computer Control Panel
-
Filters:
-
4-stage Filter System
-
Lighting System:
-
40pcs LED Lights
-
Warranty Time:
-
12 Months

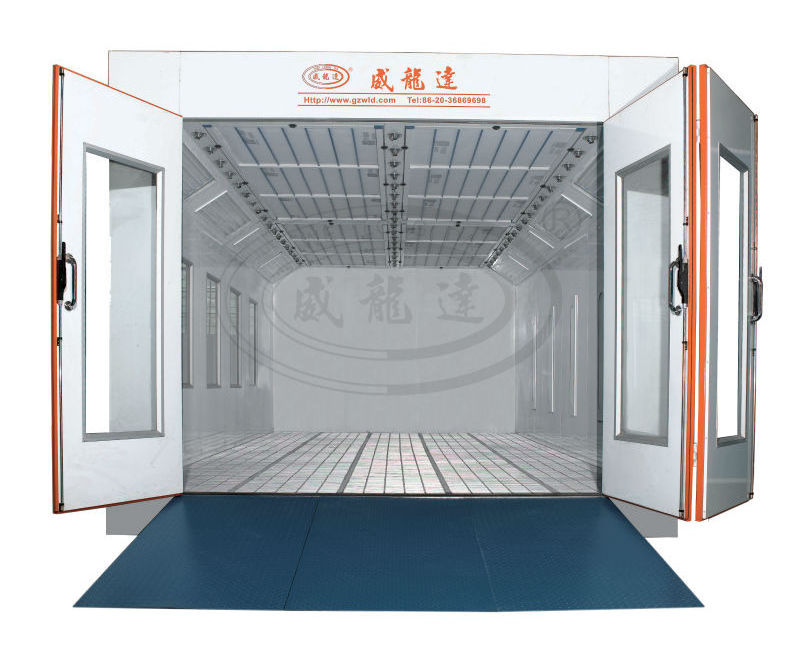

WLD9100 Environmental Painting Oven, Car Painting Oven
Configuration:
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. Full ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.
Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C).
Max temperature at 80.C. Fuel consumption is 5-6kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light 32 pcs of 15w LED lamps. Side light has 16 pcs of 15w LED lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Special configure with Multilayer Active Carbon Cabinet Filter System
|
Model |
External Size (m) |
Internal Size (m) |
Air Flow (m3/h) |
Air Speed (m/s) |
Power (kw) |
Vehicle Suited |
|
WLD9100 |
7x5.45x3.48 |
6.9x3.9x2.8 |
24000 |
0.3-0.5 |
16 |
Saloon Car Jeep |
