Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1500*1300*1500mm
-
Weight (KG):
-
220
-
Power (kW):
-
1
-
Processing width range:
-
13-150mm
-
Processing length range:
-
3000-15000mm
-
Processing thickness range:
-
0.5-5mm
-
Pitch range:
-
5-36mm
-
Grinding wheel speed:
-
6000rpm
Quick Details
-
Wheel Size(mm):
-
125*125mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHOOT
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1500*1300*1500mm
-
Weight (KG):
-
220
-
Power (kW):
-
1
-
Processing width range:
-
13-150mm
-
Processing length range:
-
3000-15000mm
-
Processing thickness range:
-
0.5-5mm
-
Pitch range:
-
5-36mm
-
Grinding wheel speed:
-
6000rpm
Product Description

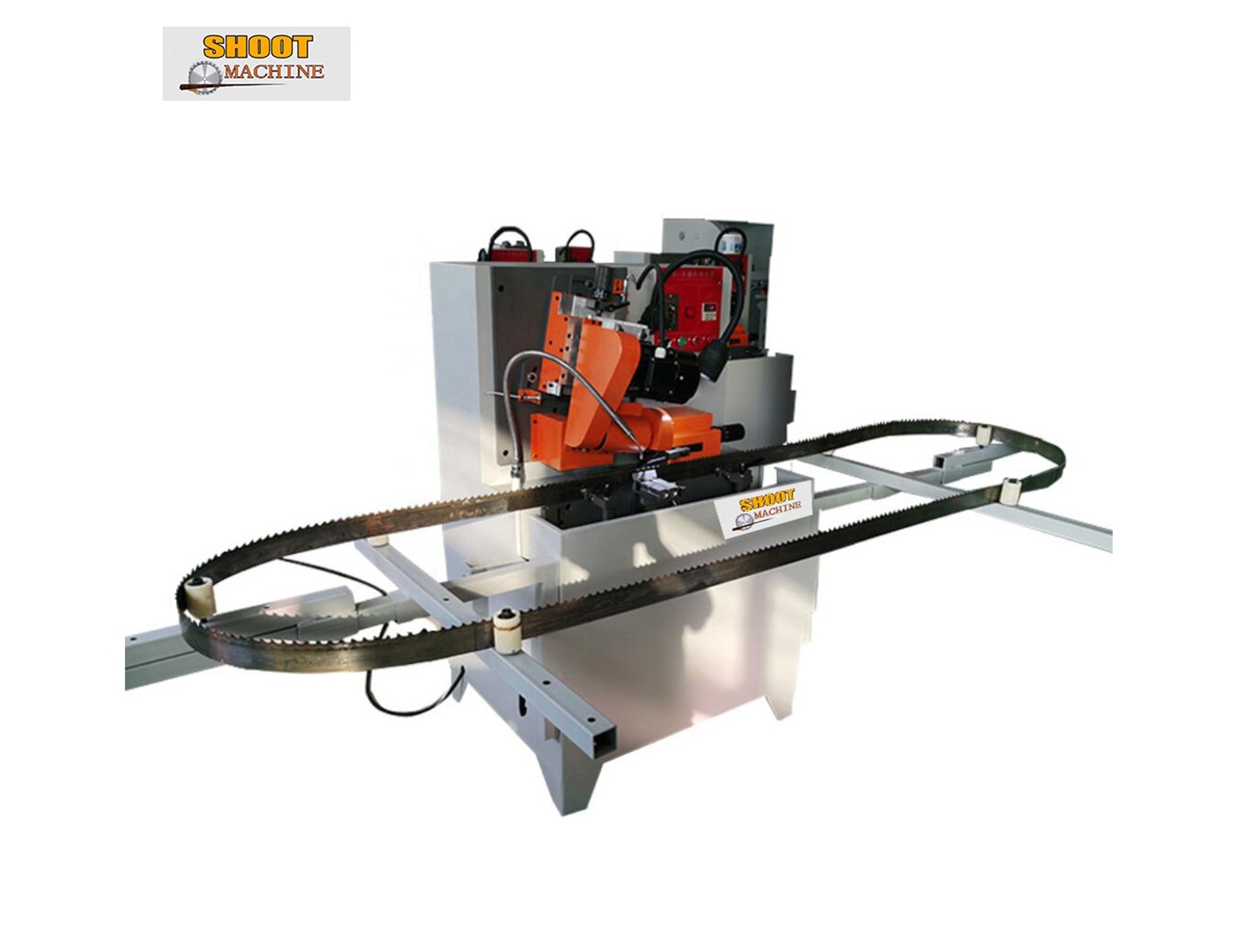

| CNC Band Saw Blade Grinding Machine | |
| Feature | |
| This machine can precisely grind various types of fine woodworking band saw blades, bimetallic band saw blades, hard alloy band saw blades, frame saw blades, suitable for mechanical factories, wood processing factories, steel sawing processing factories, automatic gear shifting, simple operation, high grinding accuracy, and can adjust the grinding angle and depth according to needs. The saw path loss error is less than 0.03MM, greatly reducing consumption costs. | |
| Model | SHCNC680D |
| Processing width range | 13-150mm |
| Processing length range | 3000-15000mm |
| Processing thickness range | 0.5-5mm |
| Pitch range | 5-36mm |
| Rake angle range | 1-30° |
| Grinding wheel speed | 6000rpm |
| Operating speed | 1-40Teeth/minute |
| Grinding wheel motor power | 0.6KW |
| Retarding motor power | 0.3KW |
| Water pump power | 0.04KW |
| Water tank capacity | 35L |
| Whole machine power | 1KW |
| Grinding wheel diameter | 125mm |
| Inner bore of grinding wheel | 20mm |
| Dimensions of complete machine | 1500*1300*1500mm |
| N.W./G.W. | 220/240kg |
Packaging & Shipping
Packing: by Plywood Case or Plastic Film
Shipping: Qingdao Port
Deliver time: 30days after receive payment
