Quick Details
-
Brand Name:
-
BT
-
Model Number:
-
LUGB
-
Key words:
-
Vortex Type Gas Flow Meter Air
-
Accuracy:
-
1.0% /1.5%
-
Power supply:
-
12-24VDC
-
Output signal:
-
4-20mA/ pulse/Hart/ RS485
-
Nominal pressure:
-
1.6Mpa 2.5Mpa 4.0Mpa
-
Temperature:
-
-40℃~350℃
-
Size:
-
DN15-DN300
-
Measuring medium:
-
liquid, general gas, steam
-
Connection:
-
Flange Clamp Thread
-
Certification:
-
CE, ISO
Quick Details
-
Type:
-
Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
18 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BT
-
Model Number:
-
LUGB
-
Key words:
-
Vortex Type Gas Flow Meter Air
-
Accuracy:
-
1.0% /1.5%
-
Power supply:
-
12-24VDC
-
Output signal:
-
4-20mA/ pulse/Hart/ RS485
-
Nominal pressure:
-
1.6Mpa 2.5Mpa 4.0Mpa
-
Temperature:
-
-40℃~350℃
-
Size:
-
DN15-DN300
-
Measuring medium:
-
liquid, general gas, steam
-
Connection:
-
Flange Clamp Thread
-
Certification:
-
CE, ISO

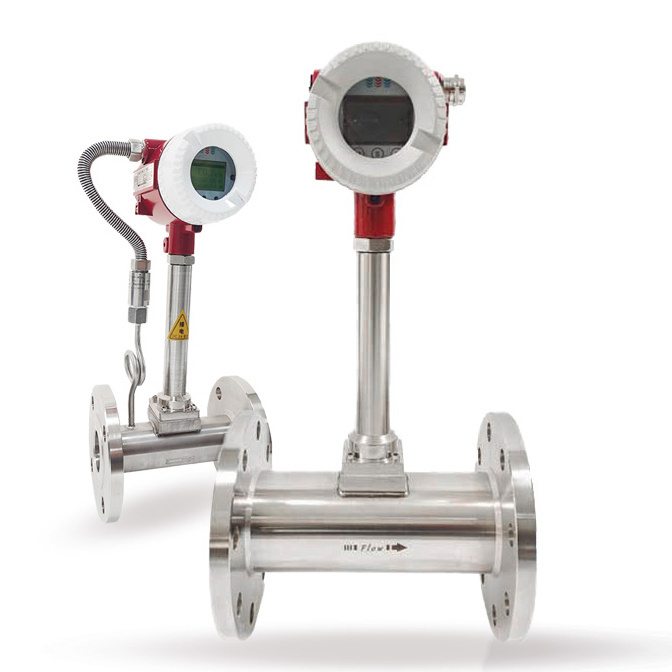

Product show
High Temperature Compact Digital PN40 Co2 Nitrogen Propane Butane Methane Flue Lpg Natural Gas Vortex Type Gas Flow Meter Air
Vortex Type Gas Flow Meter Air :
1.
Vortex Type Gas Flow Meter Air
has a wide measuring range, high precision, small pressure loss, high reliability and long-term stability.
2. The structure is simple, easy to install and maintain, no moving parts, no mechanical wear.
3.Can be long-distance transmission of flow signals, and computer networking, centralized management
Product parameter
|
Name
|
Vortex Type Gas Flow Meter Air
|
|
Measured Medium
|
Liquid;Gas;steam;oxygen;biogas; air;overheat steam
|
|
Medium Temp.
|
-40~+250℃;-40~+350℃ （high temperature probe）
|
|
Nominal Pressure
|
1.6MPa; 2.5MPa; 4.0MPa; 6.4MPa (Other pressure can be customized)
|
|
Accuracy
|
±1.0%, ±1.5%
|
|
Specifications
|
DN15~DN300mm (flange); DN200-3000mm (insertion type)
|
|
Sensor Material
|
Carbon steel, SS304, SS316L
|
|
Protection grade
|
IP65, IP68
|
|
Ex-proof class
|
Exd IICT6 Gb
|
|
Power Supply
|
12-24V/DC or 3.6V battery powered
|
|
Signal Output
|
Pulse, 4-20mA, Hart, RS485
|
