High precision YMS advanced API petroleum liquids density product portable digital densimeter densimetro measuring instrument

High precision YMS advanced API petroleum liquids density product portable digital densimeter densimetro measuring instrument

FOB Reference Price: Get Latest Price

≥1 Sets

US $1610

≥20 Sets

US $1132

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: YMS

Material:: Engineering plastics,Stainless steel

Power supply:: 220V 50Hz ;( or Four No.2 dry battery )

Measuring range:: 0.1-5.0 g/cm3

Measuring accuracy:: 0.01 g/cm3

Cup capacity:: 200ml

Net weight / Gross weight:: 3.0kg/3.76kg

Product name:: petroleum liquids density product portable digital densimeter

Application:: petroleum, chemical engineering, food and medicine etc

Key words:: API Petroleum Digital Densimeter

Usage:: Test Equipment

Quick Details

Warranty:: 1 Year

Place of Origin:: Shandong, China

Brand Name:: haitongda

Model Number:: YMS

Material:: Engineering plastics,Stainless steel

Power supply:: 220V 50Hz ;( or Four No.2 dry battery )

Measuring range:: 0.1-5.0 g/cm3

Measuring accuracy:: 0.01 g/cm3

Cup capacity:: 200ml

Net weight / Gross weight:: 3.0kg/3.76kg

Product name:: petroleum liquids density product portable digital densimeter

Application:: petroleum, chemical engineering, food and medicine etc

Key words:: API Petroleum Digital Densimeter

Usage:: Test Equipment

High precision YMS advanced API petroleum liquids density product portable digital densimeter densimetro measuring instrument

Product Description

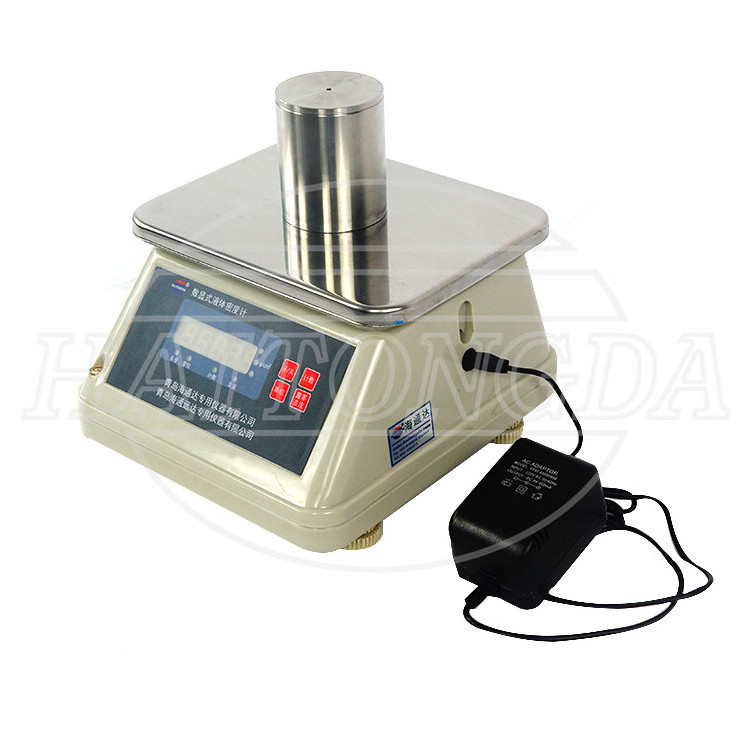

Density is a measurement of fluid weight per unit of volume. This measurement is often referred to as mud weight and is reported as pounds per gallon or grams per cubic centimeter. The primary function of monitoring density is to control formation pressures and minimize loss of returns. The Model YMS Digital Liquid Densitometer is used to measure the density of various liquids, whose precision is sufficient to reach ±0.01g/cm3. Adopting pressure sensor and calculating using computer program, the instrument can directly display the density of liquids from the liquid crystal monitor, so as to avoid the effect on precision due to the damage or deforming of lever, supporting edge and rider occurred in other kinds of densitometer. It is characterized by the large measuring scope, simple operation and high precision. Hence, the densitometer is considered as an advanced measuring instrument to date and can be extensively applied in the professions such as petroleum, chemical engineering, food and medicine, etc.

The Model YMS Digital Liquid Densitometer is constructed with an easy-to-read beam graduated into one scales: g/cm3 (grams per cubic centimeter)

Qingdao Hai Tong Da density balances meet all the requirements of the API standard procedures for testing water base drilling fluids, oil base drilling fluids and oil well cements.

Fill the drilling fluid into material cup and cover it, place it on weighing part, the sensor inside of the weighing part sense the material sample weight and convert to density, the digital meter show the sample density directly.

Product Paramenters

Power supply	220V 50Hz ；（ or Four No.2 dry battery ）
Measuring range	0.1-5.0 g/cm3
Measuring accuracy	0.01 g/cm3
Cup capacity	200ml
Net weight / Gross weight	3.0kg/3.76kg
Overall dimensions	240×270×140mm
Packing size	385×320×250mm

Detailed Images

In drilling process, one of the most important characteristics is the density of drilling fluid.

Fluid densitometer is a common instrument designed and produced for measuring drilling fluid density, digital display version is one of kind of them.

The date of digital display pressurized fluid densitometer is collected by sensors, processed by CPU, material density is displayed in display panel. Different from the traditional densimeter, it reduces the accumulated error and improves the measurement accuracy. Our digital display pressurized fluid densitometer combines the advantage of wide measuring range and sample operation, widely applicable to all kinds of oil fields, chemical industry, laboratories, food industry , medicine, etc.

Our company (Qingdao HaiTongYuanDa Special Purpose Instrument Co.,Ltd) have four kinds of densitometer , see below:

◎Model YM Mud balance with plastic material cup

◎Model XYM Mud balance with metal material cup

◎Model YYM Pressurized fluid densitometer

◎Model YMS Digital display fluid densitometer

Digital display pressurized fluid densitometer is mainly used to measure the specified density of volume of liquid, can measure the density of any liquid with the accuracy within ±0.01g/cm 3 ,expect liquid. This densitometer adopts pressure sensor to convert by microprocessor control program, and the liquid density is displayed on LCD directly.

Compared with ruler type densitometer, this instrument avoids the influence of measuring accuracy due to the deformation and damage of the ruler, the supporting edge and the movable weight, it is advanced measuring instrument with wide measuring range and simple operation characteristics.

Ruler adopts metric system：g/cm 3

This instrument has two kinds of power supply: electricity and battery, remove the bottom screw and install the battery for easy carry and suitable for outdoor use.
