Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDS1-AGQ19F-11/J/N
-
Head shape:
-
LED illuminated metal momentary switches
-
Terminal type:
-
Pin terminal
-
Brand:
-
CDOE
-
oontact configuration:
-
1NO1NC
-
Mounting Hole Size:
-
19mm
-
Material:
-
Nickel-plated brass
-
Certificate:
-
CE/UL
-
Protection Degree:
-
IP67,IK08
-
Original:
-
WenZhou,China
-
Certification:
-
UL
Quick Details
-
Protection Level:
-
IP67,IK08
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDS1-AGQ19F-11/J/N
-
Head shape:
-
LED illuminated metal momentary switches
-
Terminal type:
-
Pin terminal
-
Brand:
-
CDOE
-
oontact configuration:
-
1NO1NC
-
Mounting Hole Size:
-
19mm
-
Material:
-
Nickel-plated brass
-
Certificate:
-
CE/UL
-
Protection Degree:
-
IP67,IK08
-
Original:
-
WenZhou,China
-
Certification:
-
UL
Parameter
|

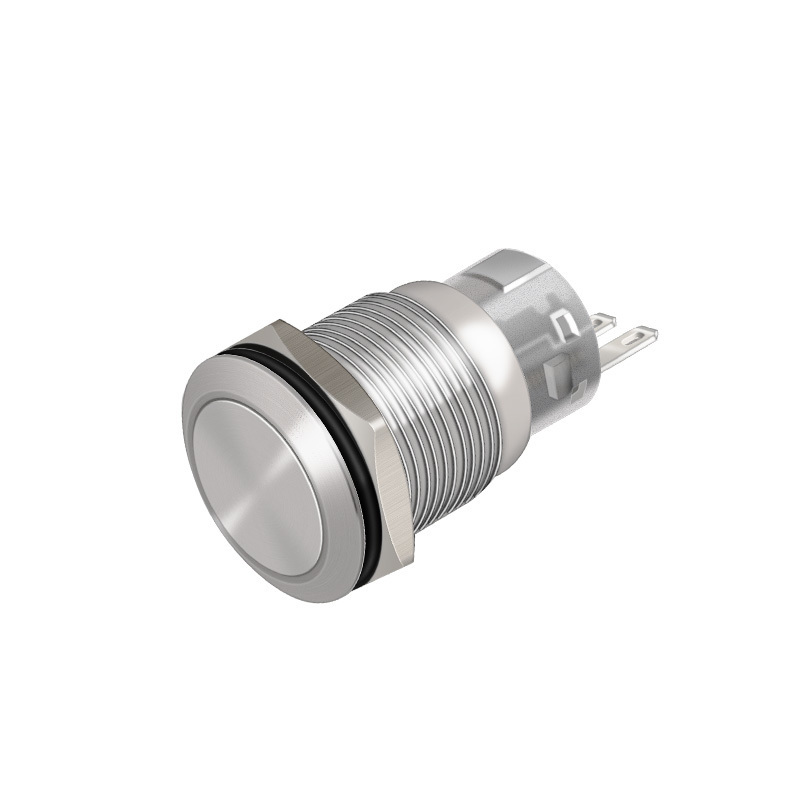

Metal Push Button Switch With Led
|
|
|
|
|
||||
|
Mounting hole size :
|
|
|
19mm
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Switch value:
|
|
|
5A/250V AC
|
|
||||
|
Operation type:
|
|
|
Momentary
|
|
||||
|
Contact configuration:
|
|
|
1NO1NC
|
|
||||
|
Head shape：
|
|
|
Flat
|
|
||||
|
Crust material:
|
|
|
Nickel-plated brass
|
|
||||
|
Terminal type:
|
|
|
Pin terminal
|
|
||||
|
Electrical life :
|
|
|
≥50,000 times
|
|
||||
|
Mechanical life:
|
|
|
≥1,000,000 times
|
|
||||
|
Operation temperature:
|
|
|
-25℃~+65℃
|
|
||||
|
Contact Resistance:
|
|
|
≤50mΩ
|
|
||||
|
Insulation Resistance:
|
|
|
≥100mΩ
|
|
||||
|
Operation stroke:
|
|
|
3.2mm
|
|
||||
|
Protection grade :
|
|
|
IP67
|
|
||||
|
Contact material:
|
|
|
Silver alloy
|
|
||||
