Minimum order quantity 1 unit
- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
12460
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
SINOTRUK HOWO
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8750*2550*3450mm
-
Cargo Tank Dimension:
-
8750*2550*3450mm
-
Product name:
-
SINOTRUK HOWO Dump Truck
-
Chassis model:
-
ZZ3257N3847A
-
Cabin:
-
HW76, with one sleeper
-
Engine:
-
WD615.47 (371HP)
-
Transmission:
-
HW19710, 10F & 2R
-
Steering system:
-
ZF8118, hydraulic steering with power assistance
-
Front axle:
-
HF9
-
Drive axle:
-
HC16
-
Tyre:
-
12.00R20, radial tyres with one spare tyre
-
Cargo Body Size:
-
5600*2300*1500mm
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
12460
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
SINOTRUK HOWO
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8750*2550*3450mm
-
Cargo Tank Dimension:
-
8750*2550*3450mm
-
Product name:
-
SINOTRUK HOWO Dump Truck
-
Chassis model:
-
ZZ3257N3847A
-
Cabin:
-
HW76, with one sleeper
-
Engine:
-
WD615.47 (371HP)
-
Transmission:
-
HW19710, 10F & 2R
-
Steering system:
-
ZF8118, hydraulic steering with power assistance
-
Front axle:
-
HF9
-
Drive axle:
-
HC16
-
Tyre:
-
12.00R20, radial tyres with one spare tyre
-
Cargo Body Size:
-
5600*2300*1500mm

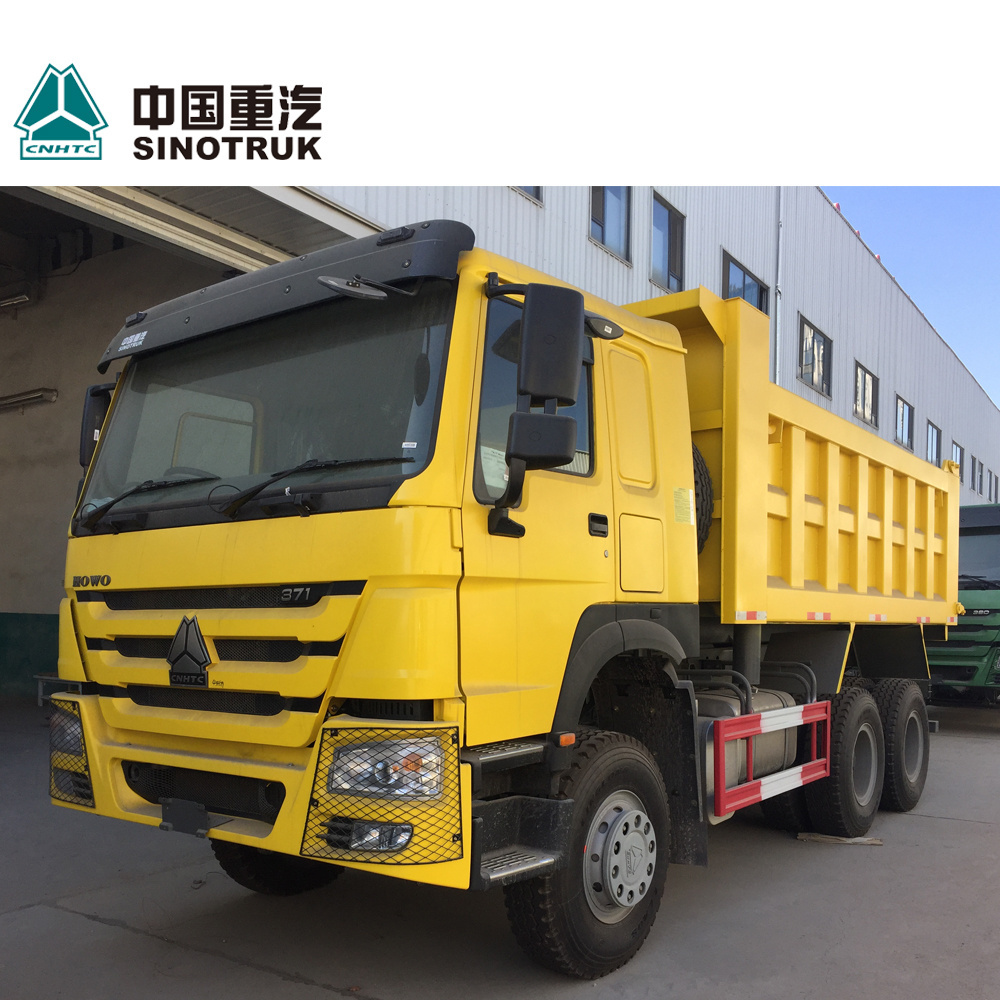

HOWO Euro 2 371HP 16 Cubic Meter 10 Wheel Dump Truck
HOWO Euro 2 371HP 16 Cubic Meter 10 Wheel Dump Truck
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on.
Power range: 266HP - 420HP.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
New HOWO dump truck, High Quality , More Lighter,
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
Product Name
|
SINOTRUK HOWO 6X4 Dump Truck
|
Chassis Model
|
ZZ3257N3847A
|
Driving Type
|
LHD (RHD is optional)
|
Cabin
|
HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
|
Engine
|
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission
|
HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering
|
ZF power steering, modol ZF8118, hydraulic steering with power assitance
|
Front Axle
|
HF9,1x9000 KGS
Steering with doubleT-cross section beam
|
Rear Axle
|
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
Chassis
|
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
Brake
|
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics
|
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tyres
|
12.00R20, radial tyres with one spare tyre
|
Fuel Tank
|
300L
|
Cargo Body
|
5800*2300*1500 mm, 20 CBM, Floor 8mm Side 6mm
|
Overall Dimension
|
8750*2550*3450mm
|
Title goes here.
1)competitive price, cost-effective
2)with all kinds of truck model, which can fulfil your requirements
3)all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4)using the high strength steel, make it has a long service life
5)The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6)excellent apperance of cabin, safety, reliable
7)quick and efficient spare parts supply bring you more convenient
8) you can choose cargo body with Front lifting type or Middle lifting type which you prefer
9) The hydraulic system using HYVA brand or Domestic famous brand
10)low fuel consumption
11) strong enough engine
12)fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency
Parts Service
Sinotruk is capable of developing and testing complete vehicles, engines, parts, material technologies and other all-round R&D and testing capabilities. It's equipped with various state-of-the-art and precision equipment in processing, experiment and testing, of which the equipment related to engine, complete vehicle, vibration of parts and strength testing, etc. have reached world class level...
Shipping Service
Sinotruk has established good strategic partnership with many shipping companies which have professional logistics operation experience and are specialized in services for vehicle logistics, CKD, SKD, ect to meet different requirements of different customers.
Techincal Service
First-class enterprise and first-class products can only be made with first-class R&D capability. Customer demand has always been the driving force of Sinotruk's change and innovation and the core of Sinotruk product research and development. Sinotruk R&D is devoted to providing tailor-made solutions for our customers.
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing and delivery
Packing Details : Nude and waxed before delivery
Delivery Details : 30 working days after receiving deposit.
Ro-Ro Ship
Cargo Bulk Ship
Minimum order quantity 1 unit
Flat Rack Container Ship
Minimum order quantity 2 Units
Q: What Is Your Main Products?
1. As the first class the agent of SINOTRUCK and SHACMAN, we can export the SINOTRUCK and SHACMAN brand tractor head, dump truck,
2. We can provide various trailers such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer,cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer,stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as special design
fuel tanker truck, water tanker truck, cargo truck , concrete mixture truck etc with great price and service advantages.
3. Except trucks and trailers, our company can also provide trailer parts and engineering machinery such as crane and excavator etc.
Q: How long is your delivery time?
Generally it is 20-30 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Where Is Your Main Markets? Which Country That You Already Cooperate With?
Our company has enjoyed great preference by customers from Africa, South America, middle east, North Asia, South Asia and South east Asia So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Fiji,Uganda, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru,Uruguay, Argentina etc.
Q: What is your terms of payment ?
1.Payment 30% T/T in advance ,balance before shippment.
2.Payment L/C at sight.
