Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
20
-
Input Voltage(V):
-
AC100-240V ,50-60Hz
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XinLian
-
Emitting Color:
-
Changeable
-
Light Source power:
-
300W
-
Rated power:
-
400W
Quick Details
-
Color Temperature(CCT):
-
9700K
-
Type:
-
Beam Lights
-
Application:
-
Stage, night club, wedding, bar, etc.
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
20
-
Input Voltage(V):
-
AC100-240V ,50-60Hz
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XinLian
-
Emitting Color:
-
Changeable
-
Light Source power:
-
300W
-
Rated power:
-
400W
Product Effect Display

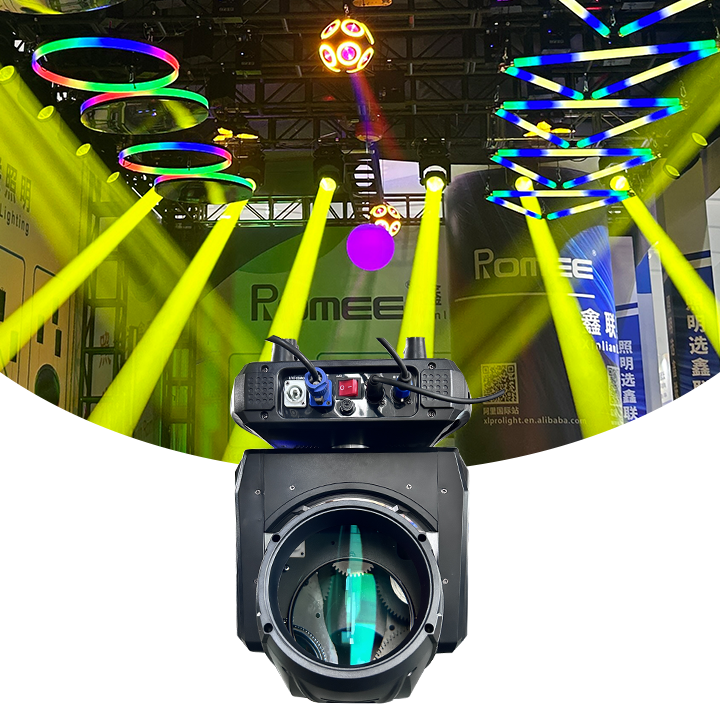

Part of the on-site shooting renderings
prism 、gobo wheel、Light Power support customisation
Product Paramenters
Special Note
The manual measurement error is normal within the range of 1-2cm for reference only.
Please refer to the actual product.
Internal Function Description
Support Light Source、Color plate、Gobo plate Customize according to your needs
|
Voltage
|
AC100-240V ,50-60Hz
|
|
Light source
|
LED300W white light beads mould
|
|
Color temperature
|
9700K
|
|
Lifespan
|
20000H
|
|
Beads light angle
|
65°
|
|
Beam angle
|
0-5 °
|
|
Dimming
|
0-100% linear dimming
|
|
Strobe
|
1-13/S
|
|
Atomization
|
1 disc of atomization, with soft and gentle spot.
|
|
Prism disc
|
2 prism discs including a 8-prism and another 8+16+24 honeycomb
|
|
Color plate
|
including 12 color discs+ white color
|
|
Multi-color plate
|
including a multiple color plate for multiple beam effect and prism effects.
|
|
Gobo plate
|
including 15 gobos+ white color, each has shaking effects as well as front-back, slow-fast and water flowing effects
|
|
Control mode
|
self-propelled, master-slave, DMX and voice control
|
|
Protocol
|
DMX512
|
|
DMX Channel
|
double-channel working
|
|
Self-correction automation
|
horizontal-vertical optoelectronic resetting and automatic searching after accidental errors.
|
|
Focusing
|
electronic linear focusing, super minor focusing.
|
|
Built-in RDM
|
automatic change of address code by signal wire to inspect light error and update program version of intelligent control
|
|
Display
|
LCD display
|
|
X line
|
540 degrees and DPI 8Bit/16Bit
|
|
Y line
|
270 degrees and DPI 8Bit/16Bit
|
|
Safety
|
electronic temperature over heating protection, which has a automatic cut-off protection while system over heats.
|
|
Waterproof level
|
IP20
|
|
Packing
|
66.5x32x40cm
|
|
Gross weight
|
19KG
|
Details Images
Product packaging
Packaging Options and Charges
We default to carton packaging but also provide flight case packaging.
If you choose flight case packaging, it requires an additional quotation.
