Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
wanshfa
-
Model Number:
-
WSF22H-10N
-
IP level:
-
IP65
-

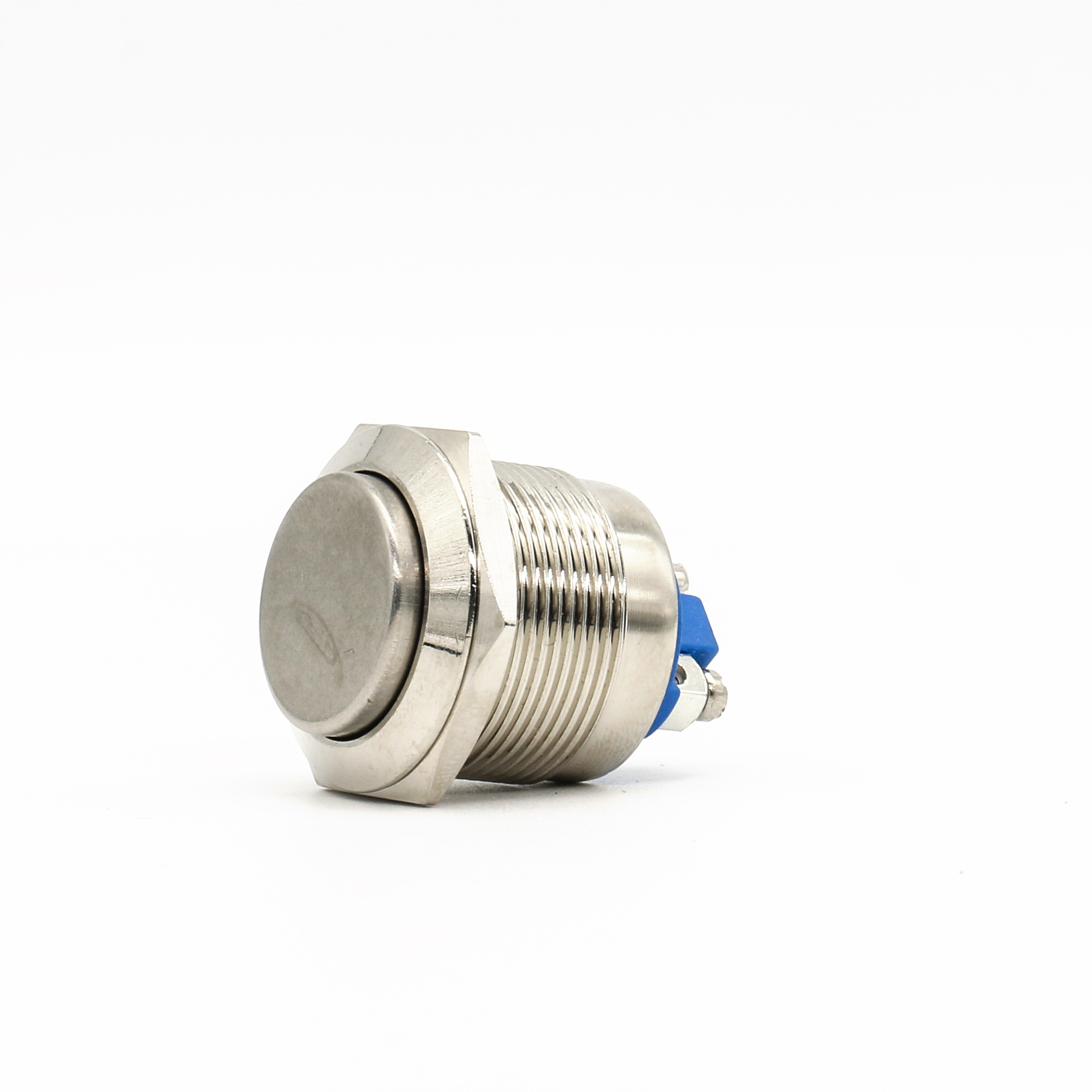

Product name:
-
Matel Push Button Switch
-
Material:
-
Nickel plated brass
-
Head shape:
-
High Head
-
Contact configuration:
-
1NO- Normal Open
-
Operation type:
-
Self-resetting
-
Terminal type:
-
2 screw terminals
-
Mounting Hole Size:
-
22mm Diameter
-
Certification:
-
CE
-
Function:
-
Electronic Control System
-
Application:
-
Industrial Control
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
5A
-
Max. Voltage:
-
5V, 12V, 24V, 36V, 50V, 100V, 110V, 125V, 220V, 240V, 250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
wanshfa
-
Model Number:
-
WSF22H-10N
-
IP level:
-
IP65
-
Product name:
-
Matel Push Button Switch
-
Material:
-
Nickel plated brass
-
Head shape:
-
High Head
-
Contact configuration:
-
1NO- Normal Open
-
Operation type:
-
Self-resetting
-
Terminal type:
-
2 screw terminals
-
Mounting Hole Size:
-
22mm Diameter
-
Certification:
-
CE
-
Function:
-
Electronic Control System
-
Application:
-
Industrial Control
Product Description
|
item
|
value
|
|
Certification
|
CE
|
|
Whether the smart
|
No
|
|
Place of Origin
|
China
|
|
Brand Name
|
wanshfa
|
|
Model Number
|
WSF22H-10N
|
|
Protection Level
|
IP65
|
|
Max. Current
|
5A
|
|
Max. Voltage
|
5V--250V
|
|
Material
|
Nickel plated brass
|
|
Head shape
|
High Head
|
|
Contact configuration
|
1 NO
|
|
Terminal type
|
2 Screw Terminals
|
|
Mounting Hole Size
|
22mm Diameter
|
METAL HOUSING:
▨Stainless Steel Shell
▨Nickel Plated Brass Shell
▨Aluminium Alloy Shell
ADVANTAGES:
▨Anti-corrosion
▨Fire-proof
▨Dust-proof
▨Explosion-proof
▨Waterproof
▨Nickel Plated Brass Shell
▨Aluminium Alloy Shell
ADVANTAGES:
▨Anti-corrosion
▨Fire-proof
▨Dust-proof
▨Explosion-proof
▨Waterproof
PREMIUM WATERPROOF
PREMIUM WATERPROOF
▨IP65 Waterproof Degree
▨Waterproof Silicone Sealing Ring in Internal
▨Waterproof Rubber O-ring Attached
▨IP65 Waterproof Degree
▨Waterproof Silicone Sealing Ring in Internal
▨Waterproof Rubber O-ring Attached
LED ILLUMINATED:
▨High-brightness Pure Color LED Light
▨Long Service Life
▨Voltage Range: 3~250V
OR NON-ILLUMINATED
▨Without LED Lamp
▨High-brightness Pure Color LED Light
▨Long Service Life
▨Voltage Range: 3~250V
OR NON-ILLUMINATED
▨Without LED Lamp
HIGH QUALITY
FIAME RESISTANCE BASE
▨PA66 Nylon Base▨More safe & reliable
SCREW / SOLDER TERMINAL
▨High Quality Silver Plated Contacts & Terminals
MATCHED CONNECTING SOCKET
▨High Quality Flame Resistant Material
Packing & Delivery
we have the standard cartons and boxes , and every model all have the same as standard boxes and cartons , in case of the product wrong question . because different model has the different product boxes .our cartons all are the natural cartons . and according customs demands , we will put markers on the cartons .
