- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZONEDING
-
Dimension(L*W*H):
-
different models
-
Weight:
-
10000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Spring cone crusher hydraulic cone crusher cost
-
Crusher type:
-
Secondary crusher
-
Processed materials:
-
Stones and ores
-
Spare parts supply:
-
Paid
-
Operation training:
-
provision of service
-
Installation and adjustment:
-
Provide
-
Flowchart:
-
Provide
-
Color:
-
Customerized
-
Price:
-
Negotiable and reasonable
Quick Details
-
Application:
-
Aggregate field,
-
Capacity(t/h):
-
27-635 tph
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZONEDING
-
Dimension(L*W*H):
-
different models
-
Weight:
-
10000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Spring cone crusher hydraulic cone crusher cost
-
Crusher type:
-
Secondary crusher
-
Processed materials:
-
Stones and ores
-
Spare parts supply:
-
Paid
-
Operation training:
-
provision of service
-
Installation and adjustment:
-
Provide
-
Flowchart:
-
Provide
-
Color:
-
Customerized
-
Price:
-
Negotiable and reasonable

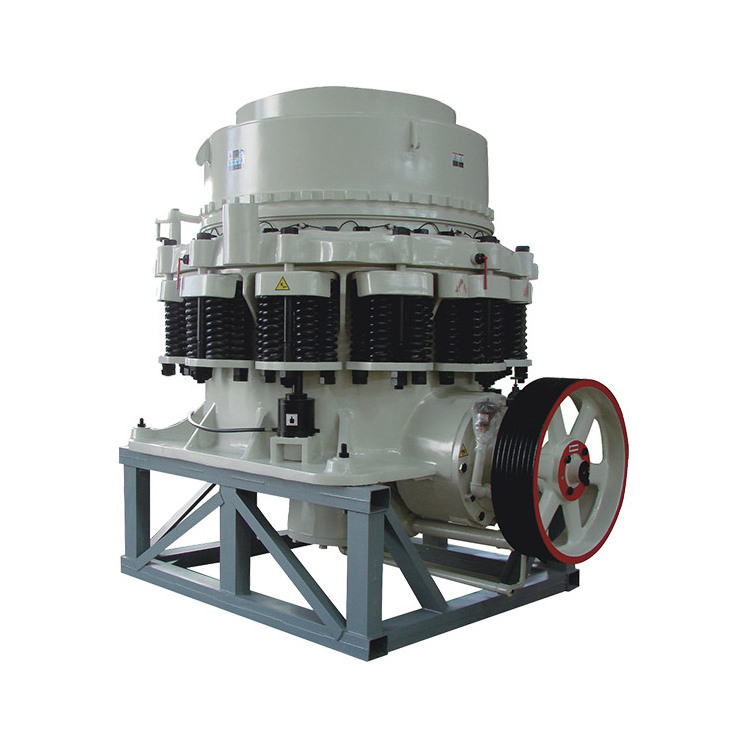

Plaster Mine Crusher Stone Symons Cone Crusher
Why Choose Us
Product Description
| Product Description of High Efficient Cone Crusher Manual |
| Brand |
|---|
| ZONEDING Free Price |
| Type |
|
Secondary crusher
|
| Capacity |
| 27-635 t/h |
| Feed Size |
| 85-313 mm |
| Adjusting Range of Outlet |
| 9-64 mm |
| Processed Materials |
| Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz, diabase, etc. (for hard stone). |
| Applications |
| Aggregate field, concrete mixing plant, dry mortar plant desulfurization, quartz sand, etc. |
| Brief Introduction |
|
Symons Cone Crusher is a kind of secure crusher, which is urrently most widely used in the world, with the characteristics of high quality, fine products, even size, long service life and high efficiency. Symons Cone Crusher developed by ZONEDING has been experienced the optimized improvement so that Symons Cone Crusher features perfect reasonable structure, more advanced technology and have the excellent performance in the manufacturing, installation and maintenance. |
| Features |
|
Technical Parameters of High Efficient Factory Price Symons Cone Crusher Manual
| Model | Chamber type | Diameter of crushing cone(mm) | Max. feed size(mm) | Discharge range(mm) | Capacity(t/h) | Power(kw) | Weight(t) | Overall dimension (L×W×H)(mm) |
| 3' | Standard fine type | 914 | 85 | 9-22 | 45-91 | 75 | 9.98 | 2656×1636×2241 |
| Standard coarse type | 150 | 13-38 | 59-163 | |||||
| Standard extra coarse type | 150 | 25-38 | 118-163 | |||||
| Short-head fine type | 35 | 3-13 | 27-90 | 10.53 | ||||
| Short-head medium type | 65 | 3-16 | 27-100 | |||||
| Short-head coarse type | 85 | 6-19 | 59-129 | |||||
| 4 1/4' | Standard fine type | 1295 | 115 | 13-31 | 109-181 | 160 | 22.46 | 2983×1866×3156 |
| Standard medium type | 178 | 16-38 | 132-253 | |||||
| Standard coarse type | 205 | 19-51 | 172-349 | |||||
| Standard extra coarse type | 220 | 25-51 | 236-358 | |||||
| Short-head fine type | 54 | 3-16 | 36-163 | 22.59 | ||||
| Short-head medium type | 76 | 6-16 | 82-163 | |||||
| Short-head coarse type | 89 | 8-25 | 109-227 | |||||
| Short-head extra coarse type | 113 | 16-25 | 209-236 | |||||
| 5 1/2' | Standard fine type | 1676 | 178 | 16-38 | 181-327 | 220 | 43.27 | 3941×2954×3771 |
| Standard medium type | 205 | 22-51 | 258-417 | |||||
| Standard coarse type | 228 | 25-64 | 299-635 | |||||
| Standard extra coarse type | 313 | 38-64 | 431-630 | |||||
| Short-head fine type | 60 | 5-13 | 90-209 | 43.87 | ||||
| Short-head medium type | 76 | 6-19 | 136-281 | |||||
| Short-head coarse type | 113 | 10-25 | 190-336 | |||||
| Short-head extra coarse type | 113 | 13-25 | 253-336 |
Note: Any change of technical data shall not be advised additionally.
Delivery
Site
of High Efficient Factory Price Symons Cone Crusher Manual
Working Site
of High Efficient Factory Price Symons Cone Crusher Manual
Certifications
FAQ
| FAQ |
| Q: How about the quality of your products? |
|---|
| A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection. |
| Q: How about the price? |
| A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount. |
| Q: Do you provide after-sale service? |
| A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. |
| Q: Do you provide equipment operation training? |
| A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. |
| Q: Can you test our samples? |
| A: Yes. You can send your samples to us for test and analysis. |
| Q: Do you provide beneficiation flow chart? |
| A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. |
