Quick Details
-
Voltage:
-
Customized
-
Power:
-
21.2KW
-
Warranty:
-
1 year
-
Capacity:
-
400kg/h
-
Length of roller drum:
-
10m
-
Diameter of roller drum:
-
1m
-
Diameter of cooling device:
-
0.6m
-
Height of cooling device:
-
2.5m
-
Diameter of dust collecting device:
-
0.6m
-
Height of dust collecting device:
-
2m
-
Weight:
-
10 ton
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
E.P
-
Dimension(L*W*H):
-
12*1.5*1.5
-
Voltage:
-
Customized
-
Power:
-
21.2KW
-
Warranty:
-
1 year
-
Capacity:
-
400kg/h
-
Length of roller drum:
-
10m
-
Diameter of roller drum:
-
1m
-
Diameter of cooling device:
-
0.6m
-
Height of cooling device:
-
2.5m
-
Diameter of dust collecting device:
-
0.6m
-
Height of dust collecting device:
-
2m
-
Weight:
-
10 ton
-
Certification:
-
CE
Product Description
Products Description

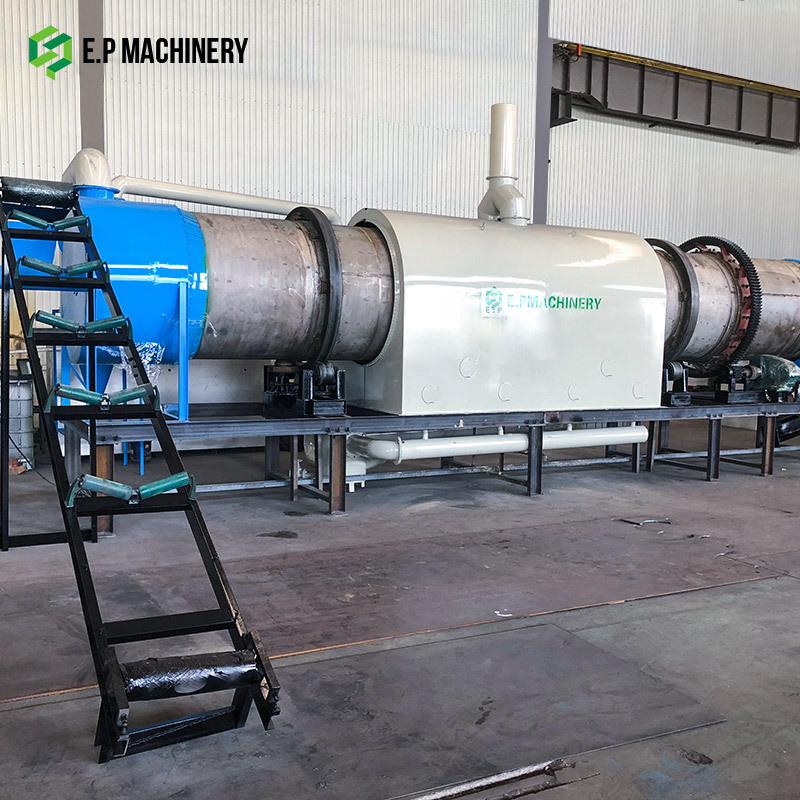

Rotary type carbonization furnace, the applicable raw materials can be
Coconut shell,
wood sawdust, rice husk, peanut shell, small wood chips and so on (size less than 30mm).
|
Model
|
HSGTL-15*12
|
|
Driving motor power
|
7.5KW
|
|
Feeding motor power
|
2.2+1.1KW
|
|
Discharging conveyor power
|
1.1KW
|
|
Fan motor power
|
4kw*2=8kw
|
|
Water pump power
|
1.1KW*4=4.4KW
|
|
Drum diameter
|
1.5m
|
|
drum length
|
10m
|
|
Size
|
12.3M*2M*1.60M
|
|
Weight
|
20Ton
|
Application
Coconut shell
Coconut shell charcoal
Wood sawdust
Charcoal dust
Rice Husk
Rice Husk Ash
Certifications
Why choose us
Our Advantages
1. We have a wealth of project experience and can provide complete technical guidance.
2. Provide integrated installation and complete guidance services
Strong Technical Team
Customized service:
customize equipment according to your requirements.
Installation service: send our workers to your country to install the production line.
Installation service: send our workers to your country to install the production line.
Packaging & Shipping
Packaging Specification:
Outside Package : Wooden Packing as Exported Standard.
Inner Package : Stretch Film
About Shipping
We can be responsible for the shipping according to the customers's requirments to ship the machines by sea, express or air. Besides, we can cooperate with your agent if you have shipping forwarder in China.
