Quick Details
-
Brand Name:
-
haiyong
-
Voltage:
-
as requirement
-
Dimension(L*W*H):
-
3400x1400x1400
-
Weight (KG):
-
1980
-
Power (kW):
-
4
Quick Details
-
Wheel Size(mm):
-
200x110x32
-
Year:
-
2022
-
Place of Origin:
-
China
-
Brand Name:
-
haiyong
-
Voltage:
-
as requirement
-
Dimension(L*W*H):
-
3400x1400x1400
-
Weight (KG):
-
1980
-
Power (kW):
-
4

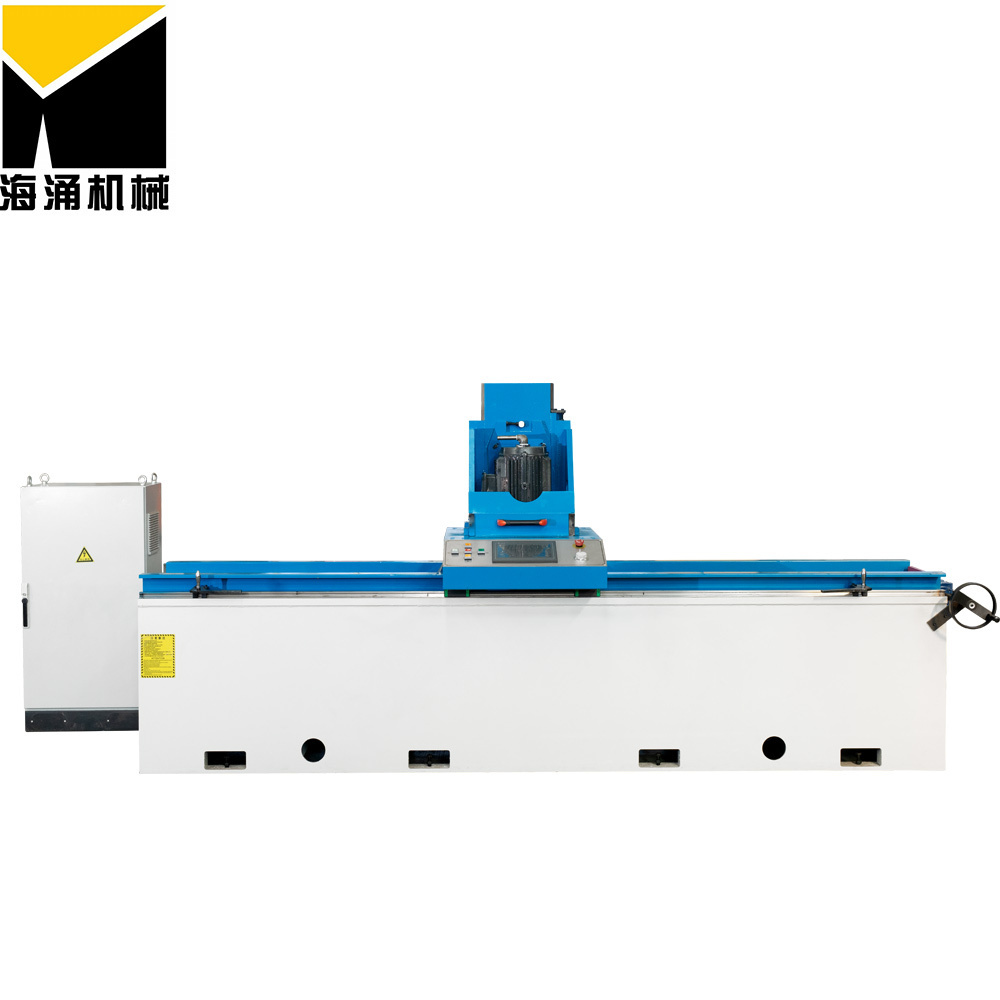

Product Description
Specification
specification
The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
3. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
4. The machine chooses rack driving, so the grinding head traveling is smoother.
5. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.
6.The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the
dropping of the knife. It is the no clearance transmission.
8.The linear guide imported from TAIWAN HIWIN with high accuracy and long service time.
9.The movement of the grinding head is controlled by the inverter. Its speed can be fitted for both accurate grinding and rough grinding.
10 CHINA BRAND touch screen, and plc program. Setting the plc , can control the automatic cycle time, automatic feed number, feed
parameter,traveling speed etc.
11pulse control the grinding stone down to the knife. The lifting motor use servo motor
2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
3. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
4. The machine chooses rack driving, so the grinding head traveling is smoother.
5. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.
6.The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the
dropping of the knife. It is the no clearance transmission.
8.The linear guide imported from TAIWAN HIWIN with high accuracy and long service time.
9.The movement of the grinding head is controlled by the inverter. Its speed can be fitted for both accurate grinding and rough grinding.
10 CHINA BRAND touch screen, and plc program. Setting the plc , can control the automatic cycle time, automatic feed number, feed
parameter,traveling speed etc.
11pulse control the grinding stone down to the knife. The lifting motor use servo motor
|
Name/ model
|
HMK1815
|
|
Max grinding length
|
1500mm
|
|
Width of the working table
|
180mm
|
|
grinding head power
|
4kw
|
|
Linear speed of grinding wheel
|
15m/s
|
|
Pump power
|
250w
|
|
Specification of grinding stone
|
200x110x32mm
|
|
Tilting range of the working table
|
±90°
|
|
Speed of the sliding plate
|
Stepless speed change
|
|
Weight
|
1980kg
|
|
Overall dimension
|
33000x1400x1400mm
|
|
|
|
Packing & Delivery
wooden box, container
