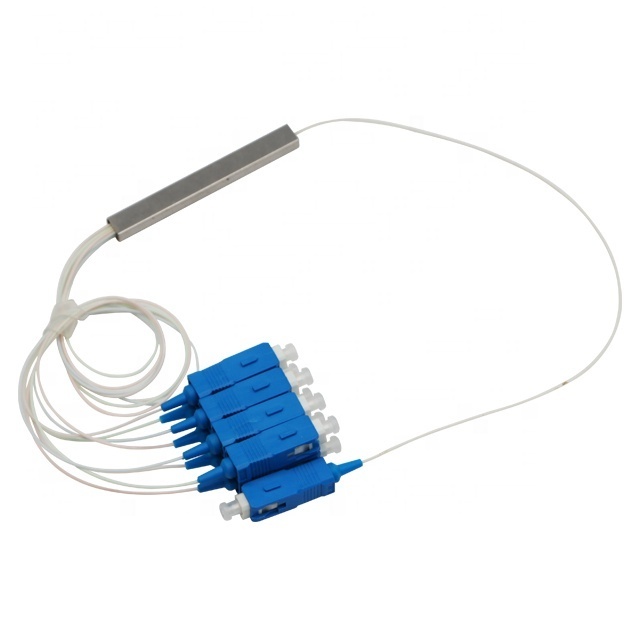

It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
QualitY
-
Use:
-
FTTH FTTX FTTB Network
-
Warranty Time:
-
1 Year
-
Product Type:
-
Fiber Optic SC/UPC Cassette PLC Splitter
-
Certification:
-
CE/ROHS/ISO9001
-
Brand:
-
Accept OEM
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Connector Type:
-
SC/UPC Connector
-
Cable Diameter:
-
0.9 mm/ 2.0 mm/ 3.0 mm or customized
-
Cable Length:
-
1m/ 2m/ 3m or customized
-
Return Loss:
-
≥50dB
-
Insertion Loss:
-
≤0.3dB
-
Operating Temperature:
-
-25 ~ +70℃
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
QYPLC1006
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QualitY
-
Use:
-
FTTH FTTX FTTB Network
-
Warranty Time:
-
1 Year
-
Product Type:
-
Fiber Optic SC/UPC Cassette PLC Splitter
-
Certification:
-
CE/ROHS/ISO9001
-
Brand:
-
Accept OEM
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Connector Type:
-
SC/UPC Connector
-
Cable Diameter:
-
0.9 mm/ 2.0 mm/ 3.0 mm or customized
-
Cable Length:
-
1m/ 2m/ 3m or customized
-
Return Loss:
-
≥50dB
-
Insertion Loss:
-
≤0.3dB
-
Operating Temperature:
-
-25 ~ +70℃
SM Armored Cable Duplex NSN DLC IP68 Waterproof Connectors Military Tactical Fiber Optical Armour Patch Cord For Broadcast
Products Description
Features
PLC splitters have high quality performance, such as low insertion loss, low PDL, high return loss, etc.
PLC splitters enable the transmission power at each splitter output port to be the same, which simplifies the network design and reduces the costs.
Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
Applications
Specifications
|
Parameters (P/S Grade)
|
|
1x2
|
1x4
|
1x6
|
1x16
|
1x32
|
1x64
|
||||||
|
Operatin Wavelength(nm)
|
|
1260--1650
|
|
|
|
|
|
||||||
|
Fiber Type
|
|
G657A1 or customer specified
|
|
|
|
|
|
||||||
|
Insertion Loss with Connector (dB)
|
max
|
4.1/4.4
|
7.4/7.9
|
10.5/11.0
|
13.8/14.1
|
17.1/17.4
|
20.4/21.0
|
||||||
|
Insertion Loss without Connector (dB)
|
max
|
3.8/4.1
|
7.1/7.6
|
10.2/10.7
|
13.5/13.8
|
16.8/17.1
|
20.1/20.7
|
||||||
|
Polarization Dependent Loss (dB)
|
max
|
0.2
|
0.2
|
0.2
|
0.3
|
0.3
|
0.3
|
||||||
|
Return Loss (dB)
|
max
|
45(UPC), 60(APC)
|
|
|
|
|
|
||||||
|
Loss Uniformity (dB)
|
max
|
0.6
|
0.7
|
0.8
|
1.0
|
1.5
|
2.0
|
||||||
|
Directivity (dB)
|
min
|
55
|
55
|
55
|
55
|
55
|
55
|
||||||
|
Operating Temperature (℃)
|
-20～+70
|
- 40 ~ +85
|
|
|
|
|
|
||||||
