- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
5200 x 1800 x 1900mm
-
Weight:
-
1250 KG
-
Marketing Type:
-
New Product 2024
-
Engine power:
-
25HP diesel engine, electric start
-
Application:
-
firewood splitting
-
Split cylinder force:
-
50T
-
Max splitting diameter:
-
450mm
-
Max. length of splitting wood:
-
1050mm
-
Adjustable wedge:
-
4, 6, 8, 12 way wedges with hydraulic adjustable
-
Oil pump:
-
32 GPM
-
Circular saw blade:
-
1065mm
-
Capacity:
-
15 cbm/hour(3.5-4 cords)
-
Ram speed / hydraulic cycle:
-
6 Second
Quick Details
-
Use:
-
Split Wood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BF
-
Dimension(L*W*H):
-
5200 x 1800 x 1900mm
-
Weight:
-
1250 KG
-
Marketing Type:
-
New Product 2024
-
Engine power:
-
25HP diesel engine, electric start
-
Application:
-
firewood splitting
-
Split cylinder force:
-
50T
-
Max splitting diameter:
-
450mm
-
Max. length of splitting wood:
-
1050mm
-
Adjustable wedge:
-
4, 6, 8, 12 way wedges with hydraulic adjustable
-
Oil pump:
-
32 GPM
-
Circular saw blade:
-
1065mm
-
Capacity:
-
15 cbm/hour(3.5-4 cords)
-
Ram speed / hydraulic cycle:
-
6 Second

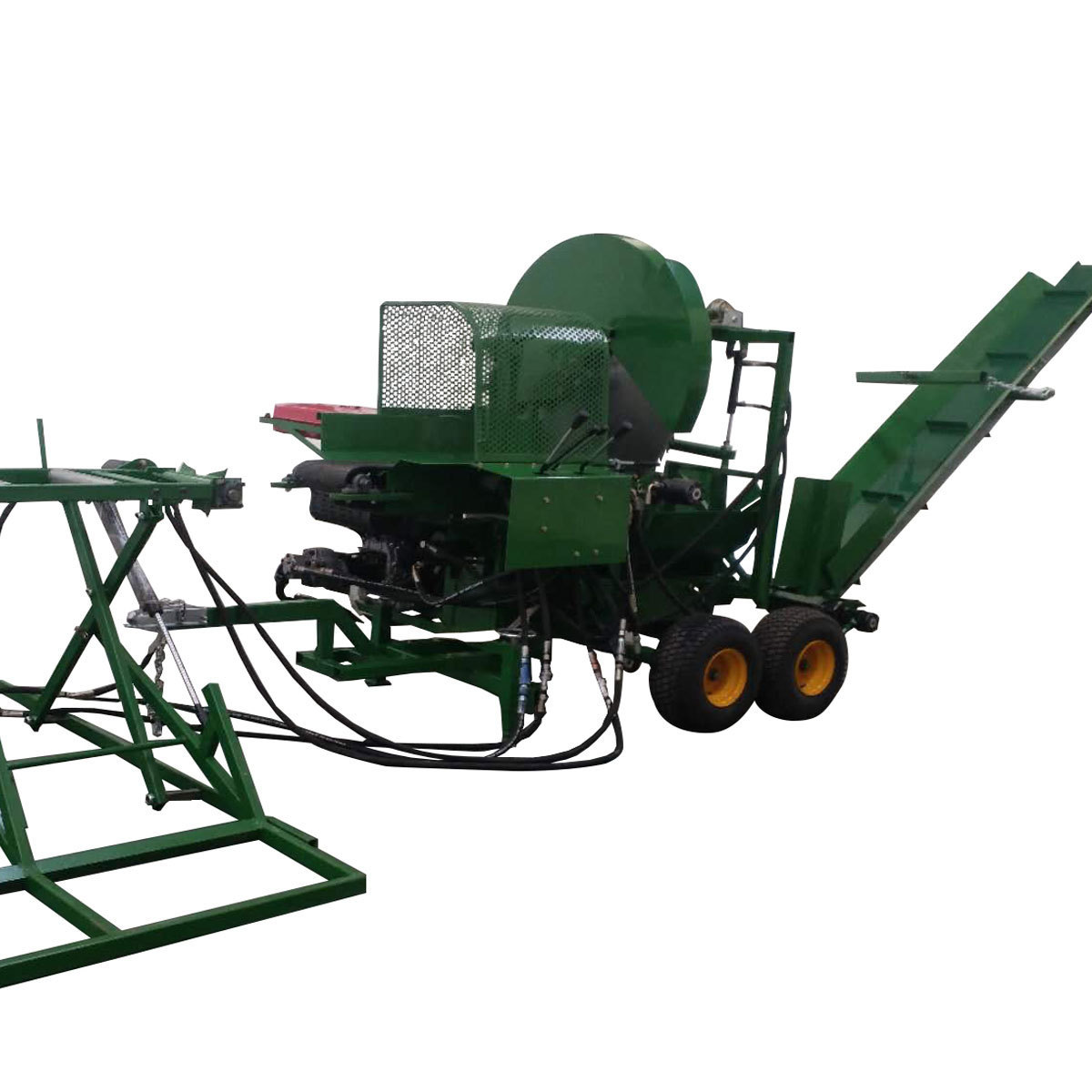

Model FWP50T-450(37G), this is a latest commercial grade 50 ton saw blade version full hydraulic firewood processor
powered by 37hp gasoline V-twin motor, electric start, EPA approved, processor equiped with a 1065mm big ciruclar saw blade
with max. 450mm splitting diameter and 1050mm length, towable with trailer coupler and wheels, easy to move
Price is for both the processor machine and all accessories below:
*foldable log chain table
*3m firewood discharge belt conveyor with remote(5m optional)
*4 and 6 way wedges(8 and 12 way wedges optional)
Detailed specification:
Split cylinder force: 50T
Capacity: 15 cbm/hour(3.5-4 cords)
Blade saw diameter: 1065mm
Length of feeding wood: 100-6000mm
Max splitting diameter: 450mm
Max. length of splitting wood: 1050mm
Ram speed / hydraulic cycle (s): 6
Adjustable height wedges: 4/6/8/12 way wedge with hydraulic adjustable
Engine power: 37hp gasoline V-twin motor, 999cc, electric start, EPA approved
Blade rotate speed: 2000rpm
Split cylinder diameter: 5 inch
Hydraulic Oil Pump Flux (GPM):32
Hydraulic oil tank capacity: 54L
Fuel tank capacity: 25L
Control valve: 5 handle, 14-directional control valve
Tyres: 106/104R highway tyre
Machine size: 5200 x 1800 x 1900mm
Packing size: 5000 x 2000 x 2200mm
N.W/G.W: 1250/1500kg
Products details:
customer working site show:
Related products:
Log trailer with crane for customer's choice if required, our log crane range from 1 ton -12 ton, trailer length from 3.6m to 6.3m, crane have CR02/CR04/CR06 accordingly, power option has PTO, gasoline/diesel engine for choice, and extendedable beam for option.
Q: what is the warranty?
A: we give 24 month manufactuer's warranty on the processor and accessories.
Q: Any engine choice?
A: 37hp gasoline Lifan engine or Honda GX690 optional
Q: what kind of accessories could i choose?
A: 1) log table with chain and in feed conveyor
2) log deck with hydraulic lifter(customer can choose either log table or this log lifter)
3) firewood discharge belt conveyor(3m standard, 4m/5m optional at extra cost)
4) splitting wedge (4 way/6 way/8 way optional)
5) oil cooler
Q: what is the delivery lead time?
A: usually speaking 30 days
Q: any certificate?
A: EPA approval for USA, Canada, Australian market and the rest market CE okay
Q: how it delivered?
A: usually ocean freight, as this machine is big in size and gross weight up to 990kg, so ocean freight is first choice,
LCL or FCL all okay.
Q: if any parts damaged or broken during warrany, what can you do for that?
A: we will provide the parts for free and get it delivered to customer by express or sea freight, it depends on the parts size and weight; ; also we make sure to provide all the parts for our machine for more than 5 years.
