Quick Details
-
Place of Origin:
-
Guangdong, China
-
Name:
-
4G Outdoor Panel antenna
-
Gain:
-
22dbi
-
Frequency:
-
698-960/1710-2700-MHz
-
VSWR:
-
≤1.5
-
Connector:
-
SMA/N-Female or customized
-
Input Impendence::
-
50 Ω
-
power:
-
50W
-
Polarization type:
-
Vertical
-
Color:
-
White/black
-
Horizontal Beam Width:
-
360de
Quick Details
-
Type:
-
RFID/NFC Antenna
-
Brand Name:
-
YC
-
Model Number:
-
4G antenna
-
Place of Origin:
-
Guangdong, China
-
Name:
-
4G Outdoor Panel antenna
-
Gain:
-
22dbi
-
Frequency:
-
698-960/1710-2700-MHz
-
VSWR:
-
≤1.5
-
Connector:
-
SMA/N-Female or customized
-
Input Impendence::
-
50 Ω
-
power:
-
50W
-
Polarization type:
-
Vertical
-
Color:
-
White/black
-
Horizontal Beam Width:
-
360de

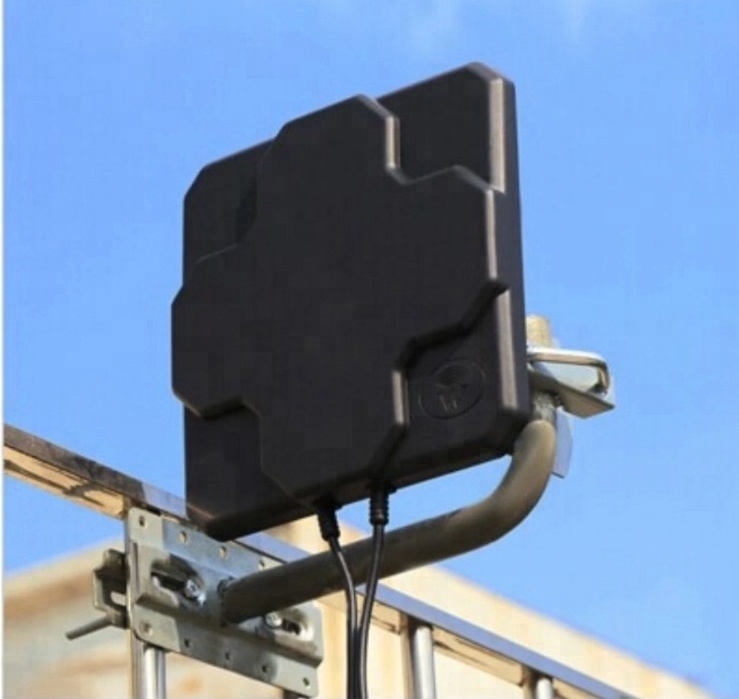

Manufactory 4G LTE antenna Outdoor Panel 18dbi High Gain 698-2690MHz Aerial Directional MIMO External Antenna
Manufactory 4G lte Omni-directional Antenna, is a broadband or wide-band multi-frequency Omni-directional style antenna designed for outdoor use that covers from 698 to 960 MHz and 1710 to 2700 MHz. This antenna is useful for cellular, PCS and Wi-Fi applications. It is frequently used in cellular repeater or amplifier applications.
1.Broad band, low PIM, low VSWR, high power .
2. Light weight and easy to install.
3.All weather operation,quality guarantee .
4. Weather-proof and corrosion Resistance
5. Apply to IEEE802.11b/g wireless lan & Public wireless hotspot.
6. Heavy-Duty Stainless Steel Mounting Brackets.
| Electrical specifications | |
| Frequency range(MHz) | 698-2100-2700Mhz |
| Impedance | 50 Ω |
| V.S.W.R | ≤1.8 |
| Gain |
22 DBi |
| Polarization type | Vertical or Horizontal |
| Power Capacity (w) | 50 W |
| Mechanical specifications | |
| connector | N male or customized |
| Color | white/black |
| Radiating Material | Cu or stainless steel |
| Cable length | Depend on your request |
| Dimension | 21*21*2.5 cm |
| Weight (kg) | 0.6kg |
| Operating Temp(°C) | "-40°C~+70°C" |
