Quick Details
-
Power Source:
-
Manual
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
H O
-
Model Number:
-
CCB
-
Power (W):
-
0
-
Voltage (V):
-
0
Quick Details
-
After-sales Service Provided:
-
None
-
Warranty:
-
None
-
Application:
-
Household
-
Power Source:
-
Manual
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
H O
-
Model Number:
-
CCB
-
Power (W):
-
0
-
Voltage (V):
-
0

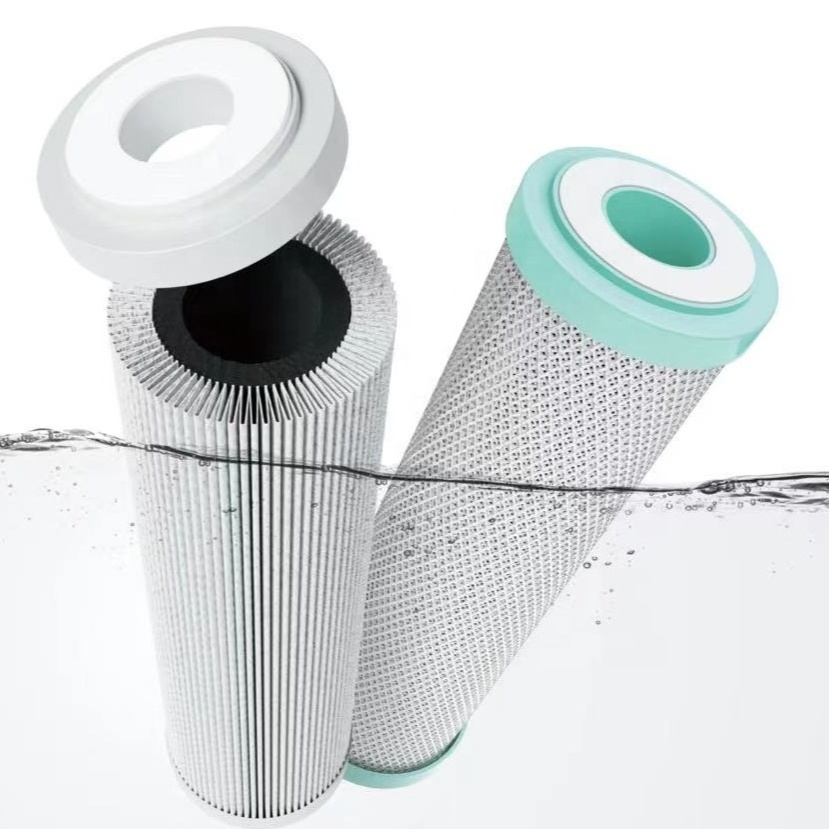

Compound Filter Cartridge Features
Better composite effect. High chemical compatible ability.
Wide application in liquid filtration field.
Excellent absorbency, no release of carbon fines.
Extended dirt holding capacity, low pressure drop and good filtering effect.
Effectively wipe off chlorine, bad taste, odor and other impurities of dissolved organics.
1. Two or three in one design, with small size, more performance.
2. Radial flow as carbon block.
3. Automatic glue process, no bypass happens.
4. Options: Sediment PP, Plated paper, thin film membrane.
5. CCB is certified by NSF for material safety against NSF42.
Wide application in liquid filtration field.
Excellent absorbency, no release of carbon fines.
Extended dirt holding capacity, low pressure drop and good filtering effect.
Effectively wipe off chlorine, bad taste, odor and other impurities of dissolved organics.
1. Two or three in one design, with small size, more performance.
2. Radial flow as carbon block.
3. Automatic glue process, no bypass happens.
4. Options: Sediment PP, Plated paper, thin film membrane.
5. CCB is certified by NSF for material safety against NSF42.
6.
The assembly process are fully automated.
7.
Custom shapes, dimensions and filter media.
|
Carbon Block Specifications
|
|
|
|
|
||||
|
Diamensions: 45*22*240mm
|
|
|
Maximum operating temperature: 60 Centigrade
|
|
||||
|
Maximum operating pressure: 0.7Mpa
|
|
|
Maximum differential pressure: 0.4Mpa
|
|
||||
|
Filter media: Coconut Shell Activated Carbon
|
|
|
End Caps: Polypropylene
|
|
||||
|
Gaskets: Neoprene
|
|
|
Outer Wrap: Polypropylene
|
|
||||
|
Items
|
|
|
|
|
||||
|
HCB - chlorine removal cartridge
|
|
VCB - VOCs removal cartridge
|
|
|
||||
|
ChCB - chloramine removal cartridge
|
|
ECB - emerging compounds removal cartridge
|
|
|
||||
|
LCB - Lead & Cyst removal cartridge
|
|
PCB - PFOA & PFOS removal cartridge
|
|
|
||||
|
ACB - Arsenic & Cyst removal cartridge
|
|
BCB - bacteriostatic cartridge
|
|
|
||||
|
SCB - antic-scale cartridge
|
|
MCB - mineralization cartridge
|
|
|
||||
|
HMCB heavy metals removal cartridge for Chinese market
|
|
|
|
|
||||
|
Pleated Paper Technical Specification of Typical Items:
|
|
|
|
|
||||
|
Items
|
|
Peak Height
|
Micro Rating
|
Option
|
||||
|
EFI-090N
|
|
4.5-15mm
|
10um
|
High turbidity or underground water
|
||||
|
EFI-120N
|
|
4.5-15mm
|
5um
|
Common top water
|
||||
|
EFIF-150N
|
|
4.5-15mm
|
3um
|
To reduce SDI
|
||||
|
EFT
|
|
6-10mm
|
1um
|
To reduce Cyst
|
||||
|
EFB
|
|
6-10mm
|
0.5-1um
|
To reduce bacterial
|
||||
|
Pleated Paper Benefits
|
|
|
|
|
||||
|
1. All materials are with PP or Nano fiber.
|
|
|
|
|
||||
|
2. EFI series replace the three-layer depth filter common used for industry.
|
|
|
|
|
||||
|
3. EFI series are with much higher loading of test dust.
|
|
|
|
|
||||
|
4. EFI series are with 3-7 layer, but apparently only one single layer.
|
|
|
|
|
||||
|
5. Could be pleated with nylon to improve the strength of pleated peak.
|
|
|
|
|
||||
|
6. EFI series out warped with CB is certified by NSF for material safety against NSF42.
|
|
|
|
|
||||
1. Are you a manufacturer?
Yes. We are the China leading manufacturer of high quality solid carbon block filter. We manufactured
over 1300 million piece of the carbon block filters in 2023.
over 1300 million piece of the carbon block filters in 2023.
2. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.
3. Sample leadtime?
Existing items: Within 7-10 days.
4. Can we use our logo/brand?
Of course. Private Label is absolutely welcome. We also have Designing Dept. to help you get your own logo design and packing design free of charge.
5. What’s the order lead time?
Order lead time has relations with the order quantity, order models and packaging. Generally, it takes about 15-20 days to get the order ready.
6. Why should I choose H O?
a. We have a number of patents for producing sinter solid carbon block filter which helps a lot for maintaining the high quality and achieving mass production.
b. Our raw materials are certified by NSF61 and the final products are certified by NSF/ANSI42 issed by WQA. We have strict QC system for raw materials, ongoing production and the final products.
c. Most filters have international certifications such as NSF, WQA, FDA.
d.Your filters are produced in an ISO9001 and ISO14001 factory, in the dust-free workshops and under strict production procedures and multi-QC system.
