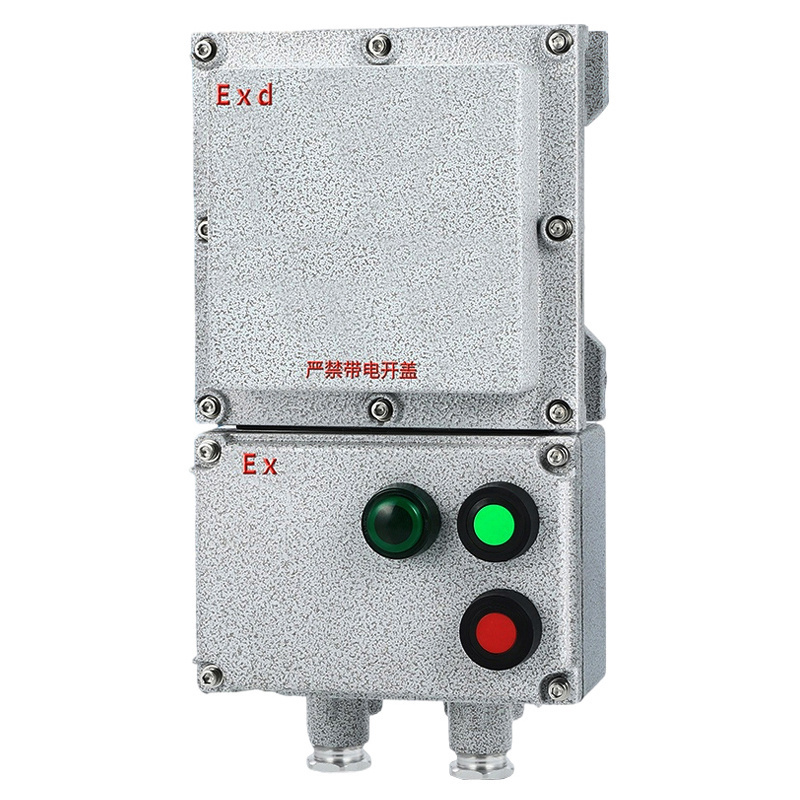

Quick Details
-
Alias:
-
Explosion Proof Magnetic Starter
-
Rated Power:
-
4Kw,5.5Kw,7.5Kw,11Kw,15Kw,18.5Kw,22Kw,30Kw,37Kw,45Kw
-
Inlet Thread:
-
G3/4,G1,G1 1/2
-
Rated Current:
-
9A,12A,18A,22A,25A,32A,40A,50A,65A,80A,100A
-
Rated Voltage:
-
380V
-
Security Level:
-
IP66,WF1*WF2,Ex db eb IIB T4 Gb,Ex db eb IIC T4 Gb,Ex tb IIC T130℃ Db
-
Cable Outer Dia:
-
10mm-14mm,12mm-17mm,18mm-33mm
-
Material Quality:
-
Aluminum Alloy,Stainless Steel
-
Same Series Model 1:
-
BQC-9,BQC-12,BQC-18,BQC-22,BQC-25,BQC-32
-
Same Series Model 2:
-
BQC-40,BQC-50,BQC-65,BQC-80,BQC-100
Quick Details
-
Brand Name:
-
Shen Hai
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
BQC
-
Alias:
-
Explosion Proof Magnetic Starter
-
Rated Power:
-
4Kw,5.5Kw,7.5Kw,11Kw,15Kw,18.5Kw,22Kw,30Kw,37Kw,45Kw
-
Inlet Thread:
-
G3/4,G1,G1 1/2
-
Rated Current:
-
9A,12A,18A,22A,25A,32A,40A,50A,65A,80A,100A
-
Rated Voltage:
-
380V
-
Security Level:
-
IP66,WF1*WF2,Ex db eb IIB T4 Gb,Ex db eb IIC T4 Gb,Ex tb IIC T130℃ Db
-
Cable Outer Dia:
-
10mm-14mm,12mm-17mm,18mm-33mm
-
Material Quality:
-
Aluminum Alloy,Stainless Steel
-
Same Series Model 1:
-
BQC-9,BQC-12,BQC-18,BQC-22,BQC-25,BQC-32
-
Same Series Model 2:
-
BQC-40,BQC-50,BQC-65,BQC-80,BQC-100
Product Parameters
|
Explosion proof sign
|
Rated voltage
|
Protection level
|
Corrosion protection level
|
|
Ex db eb IIB T4 Gb
Ex db eb IIC T4 Gb
Ex tb IIC T130℃ Db
|
380V
|
IP66
|
WF1*WF2
|
|
Model
|
Rated current
|
Thermal relay constant current regulation range
|
Control the maximum power of the motor
|
Cable outer diameter
|
Inlet thread
|
|
BQC-9/□
|
9A
|
6.8~11A
|
4kW
|
φ10~φ14mm
|
G3/4
|
|
BQC-12/□
|
12A
|
6.8~11A
|
5.5kW
|
φ~φmm
|
|
|
BQC-18/□
|
18A
|
10~16A
|
7.5kW
|
φ~φmm
|
|
|
BQC-22/□
|
22A
|
14~22A
|
11kW
|
φ~φmm
|
|
|
BQC-25/□
|
25A
|
20~32A
|
11kW
|
φ12~φ17mm
|
G1
|
|
BQC-32/□
|
32A
|
20~32A
|
15kW
|
φ~φmm
|
|
|
BQC-40/□
|
40A
|
28~45A
|
18.5kW
|
φ15~φ23mm
|
G1 1/4
|
|
BQC-50/□
|
50A
|
40~63A
|
22kW
|
φ18~φ33mm
|
G1 1/2
|
|
BQC-65/□
|
65A
|
40~63A
|
30kW
|
φ~φmm
|
|
|
BQC-80/□
|
80A
|
63~80A
|
37kW
|
φ~φmm
|
|
|
BQC-100/□
|
100A
|
80~100A
|
45kW
|
φ~φmm
|
|
|
BQC-9/□/N
|
9A
|
6.3~10A
|
4kW
|
φ10~φ14mm
|
G3/4
|
|
BQC-12/□/N
|
12A
|
8~12.5A
|
5.5kW
|
φ~φmm
|
|
|
BQC-18/□/N
|
18A
|
10~16A
|
7.5kW
|
φ~φmm
|
|
|
BQC-22/□/N
|
22A
|
12.5~20A
|
11kW
|
φ~φmm
|
|
|
BQC-25/□/N
|
25A
|
20~32A
|
11kW
|
φ12~φ17mm
|
G1
|
|
BQC-32/□/N
|
32A
|
20~32A
|
15kW
|
φ15~φ23mm
|
G1 1/4
|
|
BQC-40/□/N
|
40A
|
37~50A
|
18.5kW
|
φ~φmm
|
|
|
BQC-50/□/N
|
50A
|
37~50A
|
22kW
|
φ18~φ33mm
|
G1 1/2
|
|
BQC-65/□/N
|
65A
|
48~65A
|
30kW
|
φ~φmm
|
|
|
BQC-80/□/N
|
80A
|
63~80A
|
37kW
|
φ~φmm
|
|
|
BQC-100/□/N
|
100A
|
80~100A
|
45kW
|
φ~φmm
|
|
Products Description
1. Aluminum alloy die-casting shell, after high-speed shot peening, the surface is coated with high-voltage electrostatic spraying, which is corrosion resistant and anti-aging;
2. Stainless steel exposed fasteners with high anti-corrosion performance;
3. Equipped with AC contactors, thermal relays, and self resetting universal transfer switches, and equipped with a high breaking small circuit breaker when equipped with a main switch;
4. It can control the direct start and stop of AC 50Hz, 380V three-phase asynchronous motors, and has overload, phase failure, and voltage loss protection;
5. It can be equipped with remote control;
6. Steel pipe or cable wiring is acceptable.
1. Suitable for explosive gas environments in Zone 1 and Zone 2 locations;
2. Suitable for places in Zone 21 and Zone 22 with combustible dust environments;
3. Suitable for IIA, IIB, and IIC explosive gas environments;
4. Suitable for temperature groups T1 to T6;
5. It is suitable for infrequent starting and stopping of three-phase asynchronous motors in dangerous environments such as oil exploitation, oil refining, chemical industry, gas stations, offshore oil platform, oil tankers, metal processing, etc.
