Name: electric motor
Brand: siemens/chinese
Original: Germany/China
famous engines, strong driving force, low fuel consumption, high economic benefits
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
85x54x103cm
-
Weight:
-
90 kg
-
Keyword:
-
groove milling machine
-
Color:
-
Custmized
-
Engine:
-
Simens/chinese
-
Milling Width:
-
200mm
-
Blade:
-
6 Stars 72pcs
-
Milling Depth:
-
1-3mm
-
Power Option:
-
gasoline/ electric
-
Cutter Shaft No:
-
6pcs
-
Model:
-
SW-200E
-
Name:
-
Concrete groove milling machine
Quick Details
-
Working Depth:
-
1-3mm
-
Place of Origin:
-
China
-
Brand Name:
-
suwelin
-
Voltage:
-
220v/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
85x54x103cm
-
Weight:
-
90 kg
-
Keyword:
-
groove milling machine
-
Color:
-
Custmized
-
Engine:
-
Simens/chinese
-
Milling Width:
-
200mm
-
Blade:
-
6 Stars 72pcs
-
Milling Depth:
-
1-3mm
-
Power Option:
-
gasoline/ electric
-
Cutter Shaft No:
-
6pcs
-
Model:
-
SW-200E
-
Name:
-
Concrete groove milling machine
Product Description

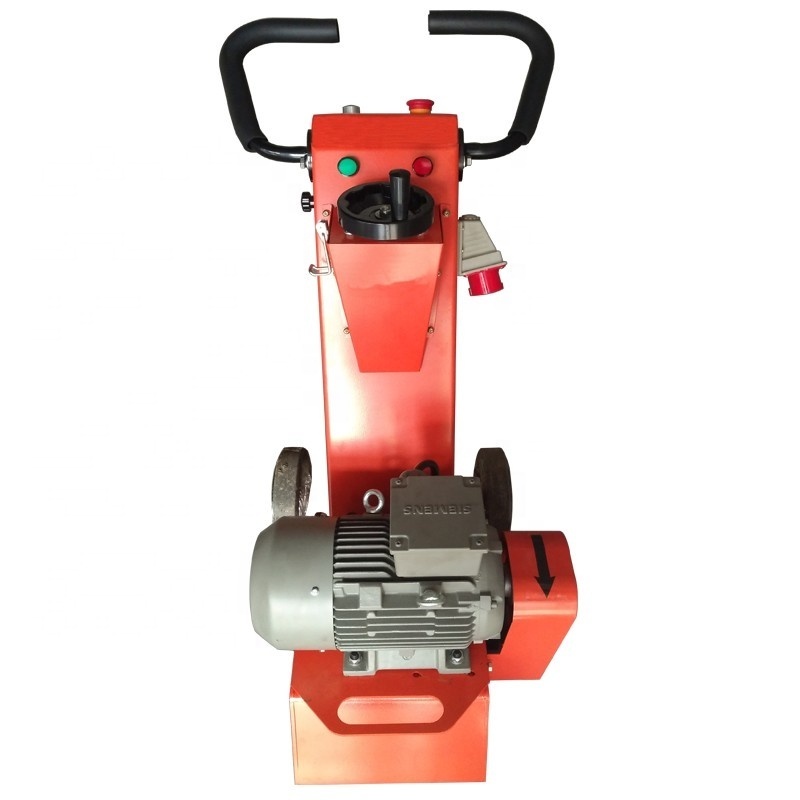

Concrete groove milling machine
The concrete scarifier machine are installed on an amount of shafts, can be changed conveniently, and be used for more purposes, such as cleaning, coarsing, milling, planning, and so on
The control frame system is provided with self-locking function. The milling depth is controlled freely and the operation is flexible
|
Concrete scarifier machine
|
|
|
|
|||
|
Model
|
SW200G
|
SW200G
|
SW-200E
|
|||
|
Engine
|
Honda gx160
|
B&G
|
Siemens/Chinese
|
|||
|
Power
|
4kw/5.5hp
|
3.7kw/5hp
|
2.2kw
|
|||
|
Net weight
|
70kg
|
70kg
|
90kg
|
|||
|
Mill width
|
200mm
|
200mm
|
200mm
|
|||
|
Mill depth
|
0-3mm
|
0-3mm
|
0-3mm
|
|||
|
Cutter bar
|
6pcs
|
6pcs
|
6pcs
|
|||
|
Blade
|
72pcs
|
72pcs
|
72pcs
|
|||
|
Voltage
|
/
|
/
|
380v/220v single phase
|
|||
Features
1.The scarifying machine are installed on an amount of shafts, can be changed conveniently, and be used for more purposes, such as cleaning, coarsing, milling, planning, and so on;
2.The adjustable handle simplifies operation and increase the degree of comfort;
3.The control frame system is provided with self-locking function. The milling depth is controlled freely and the operation is flexible;
Detailed Images
Machine Parts
Name: Control handle
The adjustable handle simplifies operation and increase the degree of comfort
Machine Parts
Name:
Blades
Durable blades works more effecient and long lasting.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
800*480*830mm
|
|
|
Weight
|
120kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Related Products
If you need any information for the concrete scarifier machine please contact freely by swl02(at)suwelin.com
