Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LNEYA
-
Dimension(L*W*H):
-
115*115*185~155*150*210CM
-
Weight:
-
750 KG
-
Product name:
-

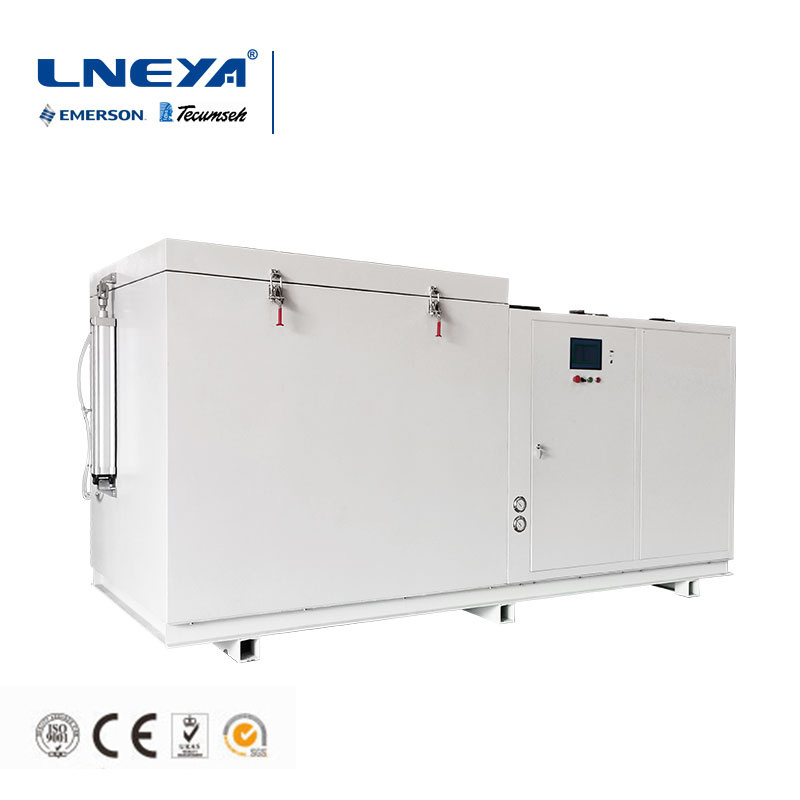

Ultra Low Temperature Industrial Refrigerator Freezer
-
Temperature:
-
-100℃ ~ -30℃ (optional: -150 ~ -5℃)
-
Inner dimension:
-
61*60*76~100*100*100CM
-
Display:
-
LED display
-
Refrigeration machine:
-
Air-cooled
-
Refrigerant:
-
R404A R14
-
Carrying capacity:
-
150~300KG
-
Inner volume:
-
280~1000L
-
Temp. accuracy:
-
±2 ℃
Quick Details
-
Voltage:
-
380V 50HZ, or customization
-
Power:
-
9~18KW
-
Cooling Capacity:
-
-100℃ ~ -30℃ (optional: -150 ~ -5℃)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LNEYA
-
Dimension(L*W*H):
-
115*115*185~155*150*210CM
-
Weight:
-
750 KG
-
Product name:
-
Ultra Low Temperature Industrial Refrigerator Freezer
-
Temperature:
-
-100℃ ~ -30℃ (optional: -150 ~ -5℃)
-
Inner dimension:
-
61*60*76~100*100*100CM
-
Display:
-
LED display
-
Refrigeration machine:
-
Air-cooled
-
Refrigerant:
-
R404A R14
-
Carrying capacity:
-
150~300KG
-
Inner volume:
-
280~1000L
-
Temp. accuracy:
-
±2 ℃
Products Description
Advantages and Features
1. Microcomputer control, cascade temperature controller, digital temperature display, the regulation of unit 0.1℃, inside the temperature range -20 ℃ ~ -125 ℃ adjustable.
2.
Multiple temperature ranges are available, and customization is supported.
-65~-10
℃, -80~-10
℃, -100~-30
℃, -150~-20
℃.
3. France TECUMSEH compressor, Germany DANFOSS compressor, EMERSON compressor, automatic cascade refrigeration technology.
4. With self-diagnosis function, freezer overload protection, high-pressure switches, overload relays, thermal protection device and other security functions, and fully guarantee the use of safety.
5. Three sealed mold layer of insulation, Extra-thick high-density polyurethane foam insulation layer, the effect of good insulation; Inline vacuum insulation panels.
6. Human design, more convenient and flexible.
7. Suitable for mechanical producing plant use.
Product Paramenters
|
Model
|
GX-
A028N
|
GX-
A050N
|
GX-
A0A10N
|
GY-
A028N
|
GY-
A050N
|
GY-
A080N
|
GY-
A0A16N |
||||||
|
Temp range
|
-100~-30 ℃ （optional: -150 ~ -5℃）
|
|
|
|
|
|
|
||||||
|
Cooling capacity -90℃
|
0.7KW
|
1KW
|
2KW
|
0.7KW
|
1KW
|
2KW
|
3KW
|
||||||
|
Effective volume
|
280L
|
500L
|
1000L
|
280L
|
500L
|
800L
|
1600L
|
||||||
|
Type
|
Vertical
|
|
|
Horizontal
|
|
|
|
||||||
|
Cooling capacity at -90℃
|
0.7 kw
|
1 kw
|
2 kw
|
0.7 kw
|
1 kw
|
2 kw
|
3 kw
|
||||||
|
Temp. accuracy
|
±2℃
|
|
|
|
|
|
|
||||||
|
Compressor
|
Emerson Copeland, adopt cascade refrigeration technology
|
|
|
|
|
|
|
||||||
|
Intermediate heat exchanger
|
KAORI Plate heat exchanger
|
|
|
|
|
|
|
||||||
|
Dry filter
|
Emerson
|
|
|
|
|
|
|
||||||
|
Circulating air inside the box
|
1650m³/h
|
2100m³/h
|
2750m³/h
|
2100m³/h
|
2750m³/h
|
3500m³/h
|
6000m³/h
|
||||||
|
Inside size (cm)
|
61*60
*76
|
80*74
*85
|
100*100
*100
|
80*60
*60
|
120*65
*65
|
135*80
*75
|
200*90
*90
|
||||||
|
Expansion valve
|
Electronic expansion valve
|
|
|
|
|
|
|
||||||
|
Evaporator
|
Copper-tube with aluminum-fin
|
|
|
|
|
|
|
||||||
|
Cooling Type
|
Air-cooled with water-cooled auxiliary functions (Ensure good cooling capacity when temp. above 30℃)
|
|
|
|
|
|
|
||||||
|
Means of insulation
|
Polyurethane foam insulation, thermal insulation layer 125 mm, with embedded FIR boards
|
|
|
|
|
|
|
||||||
|
Case material
|
Outside is cold rolled steel painting, internal is SUS304 wire drawing board.
|
|
|
|
|
|
|
||||||
|
Refrigerant
|
R 404A R14
|
|
|
|
|
|
|
||||||
|
Dimension (cm)
|
115*115
*185
|
135*130
*185
|
155*150
*210
|
220*115
*115
|
270*120
*120
|
290*130
*125
|
370*140
*135
|
||||||
|
Power 380V 50HZ
|
9KW
|
13.5KW
|
18KW
|
12KW
|
16.5KW
|
20KW
|
30KW
|
||||||
|
Weight kg
|
470
|
580
|
750
|
495
|
625
|
810
|
940
|
||||||
|
Optional
|
Temp. accuracy ±0.5℃
|
|
|
|
|
|
|
||||||
|
Optional
|
Cooling and heating program controlled, meet cold treatment process requirements(can set 5 programs, each program can edit 45 steps.)
|
|
|
|
|
|
|
||||||
|
Optional
|
Interior door, reduce cooling capacity lost when picking small workpieces (temperature below 60℃ optional)
|
|
|
|
|
|
|
||||||
|
Optional
|
Outside SUS304 wire drawing board case
|
|
|
|
|
|
|
||||||
|
Optional
|
Diameter 50mm cable hole
|
|
|
|
|
|
|
||||||
|
Optional
|
Electric heating vacuum glass observation window (with lighting) 200mm*300mm
|
|
|
|
|
|
|
||||||
|
Optional
|
Low temperature automatic defrost (can be once per hour or use manual button to defrost), ensure it can work at low temperature for long time even the door is open and close frequently）
|
|
|
|
|
|
|
||||||
