Quick Details
-
Brand Name:
-
youkehsu
-
Model Number:
-
yks0014554
-
Item Weight:
-
4.58 pounds
-
Voltage:
-
12 Volts
-
Max power for switch panel::
-
960W
Quick Details
-
OE NO.:
-
-YOUKES001
-
Warranty:
-
12 Months
-
Place of Origin:
-
China
-
Brand Name:
-
youkehsu
-
Model Number:
-
yks0014554
-
Item Weight:
-
4.58 pounds
-
Voltage:
-
12 Volts
-
Max power for switch panel::
-
960W

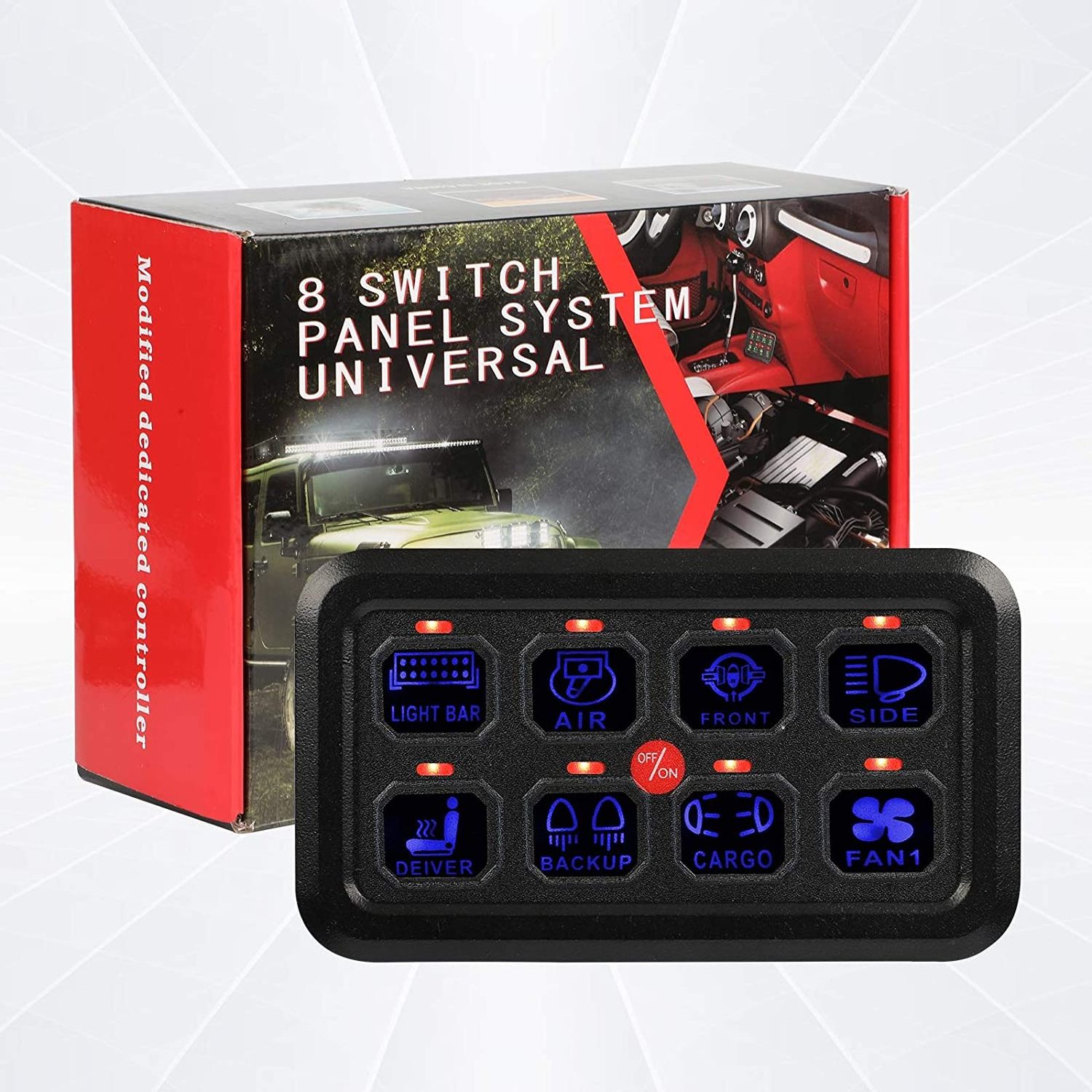

Amazon.com: Partol 8 Gang Switch Panel Automatic Dimmable LED On-Off Car Control Switch Panel Circuit Control Box Relay System Universal Slim Touch Panel with Harness Label Stickers Concealed Mounting Hardware: Industrial & Scientific
About this item
- Make sure this fits by entering your model number.
- Input Voltage : 12-24V; DC Voltage : 30A; Rated voltage:12V 20A / 24V 10A; Operating temperature: -25°-80°; Waterproof rating:IP65.
- All in one design, no need to buy extra parts. Switch Control Box + 9 Gang Switch Panel + Mounting Brackets + Wiring Harness + Voltage Protection Breaker + Self-Adhesive Label + Screw Sets.
- The switch panel can control 8 kinds of led light bar at the same time under 12-24 Volts and a max power rating of 1201 Watts. Adopting Capacitive sensing technology with blue indicator light display, the switch panel has the features of high sensitivity, stability and strong anti-interference ability.
- Easy installation: Plug & play wiring harness with plenty of length. Panel installed by bracket, no need to cut a big hole. Labels attach easily, space saving and time saving. Application: Perfectly suitable for off road, powersports, marine, boat, yacht, trailers, bus, heavy duty etc.
- Installation Guide: Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A. The maximum output current of ground 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A. The recommended connection method is to decrease the current gradually from ground 1 to ground 8.
Input Voltage : 12-24V
DC Voltage : 30A
Rated voltage:12V 20A / 24V 10A
Operating temperature: -25°-80°
Waterproof rating:IP65
Installation Guide:
Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.
The maximum output current of groud 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A. The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.
Make sure all the lamps are connectly before connecting the power cable.
