Quick Details
-
Input Video Signal:
-
0.5-1.0 Volts P-P
-
Input DDC Signal:
-
5 volts p-p(TTL)
-
Support Video format:
-
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
-
Support Video Color Format:
-
xv-YCC/deep color 36bit
-
Support Audio Format:
-
DTS-HD Master Audio,Dolby true-HD etc.
-
Data transfer speed rate:
-
10.2Gbps(Maximum)
-
Power consumption:
-
3watts(Maximum)
-
Dimension (LxWxH):
-
89.2x66.7x25mm
-
Operating Temperature Range:
-
-5 to +35℃(+23 to +95℉)
-
Operating Humidity Range:
-
5 to 90%RH (No Condensation)
Quick Details
-
Model Number:
-
LM-HC01
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINK-MI
-
Input Video Signal:
-
0.5-1.0 Volts P-P
-
Input DDC Signal:
-
5 volts p-p(TTL)
-
Support Video format:
-
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
-
Support Video Color Format:
-
xv-YCC/deep color 36bit
-
Support Audio Format:
-
DTS-HD Master Audio,Dolby true-HD etc.
-
Data transfer speed rate:
-
10.2Gbps(Maximum)
-
Power consumption:
-
3watts(Maximum)
-
Dimension (LxWxH):
-
89.2x66.7x25mm
-
Operating Temperature Range:
-
-5 to +35℃(+23 to +95℉)
-
Operating Humidity Range:
-
5 to 90%RH (No Condensation)
Brand Name: LINK-MI
Model No.: LM-HC01

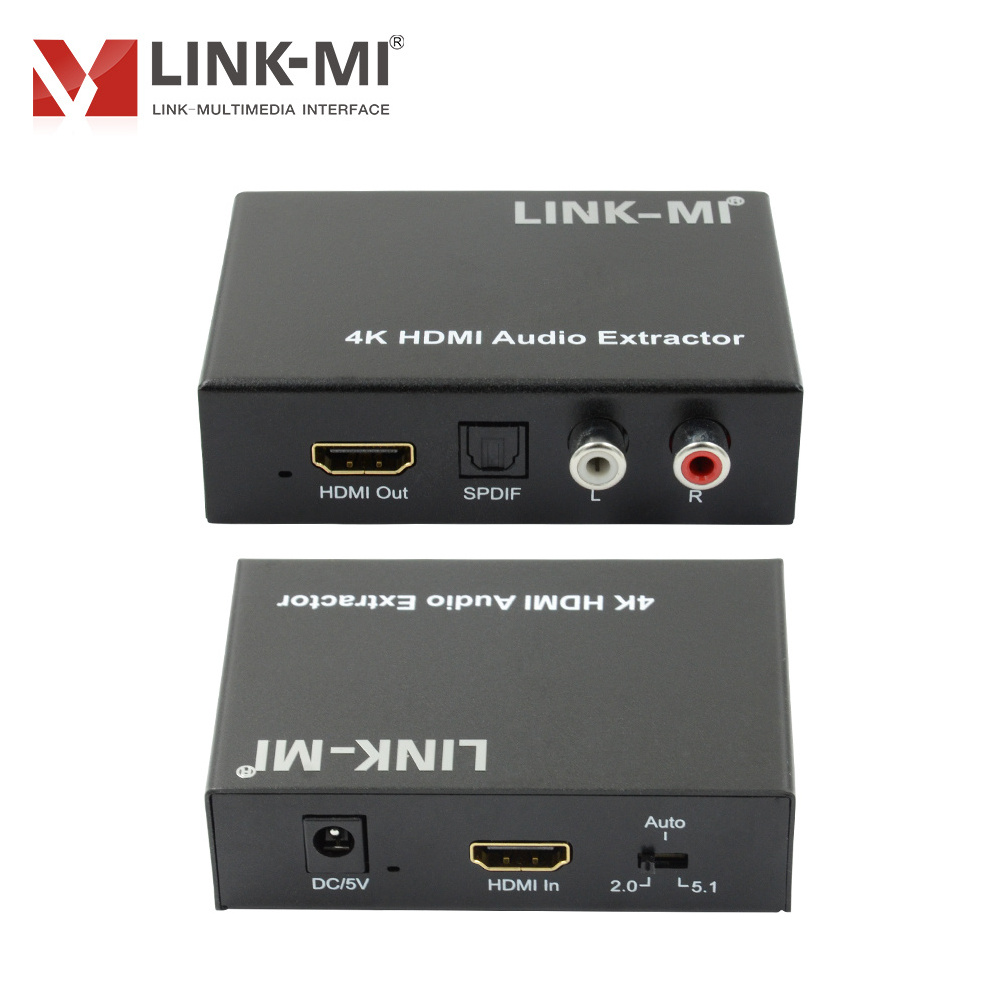

Product Type: 4K HDMI Audio Extractor (HDMI to HDMI+SPDIF / L/R Audio)
LINK-MI LM-HC01 4K HDMI Audio Extractor supports 1 HDMI in, 1 HDMI out, 1x SPDIF out, 1x L/R Audio out. It supports resolution up to 4K@30Hz, 3D. It also supports Audio EDID setting. Support Apple TV and various Blu-ray player, satellite receivers.
1. Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
2. Support resolution up to 4K@30Hz
3. Support deep color up to 36bit
4. Support 3D
5. Three Audio EDID Settings: 2.0CH/5.1CH/By pass
6. Support Apple TV and various Blu-ray player, satellite receivers
1) 1x Main Unit (4K HDMI Audio Extractor)
2) 1x Power Adapter (5V 1A)
3) 1x User Manual
