China supplier magnetic flow switch, electronic flow switch, differential pressure water flow switch

China supplier magnetic flow switch, electronic flow switch, differential pressure water flow switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GN

Model Number:: CX-PFS/FE/FB/FP/FR11/FR12

Operating Temperature:: -20-80C

Medium:: water ,oil , air

Power supply:: 24V/230V

Output:: 4-20MA , PNP

Indicator:: LED

Temperature:: -20-80C

Protection class:: IP67

Body material:: ABS electronic flow switch

Medium temperature:: 0-90C

Pipeline size:: G1",G1/2" ,1 1/2" BSP

Accuracy:2-3%:: 1-3%

Certification:: CE

Quick Details

Media Type:: Liquid

Flow Rate:: 1-30L/min

Place of Origin:: Shanghai, China

Brand Name:: GN

Model Number:: CX-PFS/FE/FB/FP/FR11/FR12

Operating Temperature:: -20-80C

Medium:: water ,oil , air

Power supply:: 24V/230V

Output:: 4-20MA , PNP

Indicator:: LED

Temperature:: -20-80C

Protection class:: IP67

Body material:: ABS electronic flow switch

Medium temperature:: 0-90C

Pipeline size:: G1",G1/2" ,1 1/2" BSP

Accuracy:2-3%:: 1-3%

Certification:: CE

China supplier magnetic flow switch, electronic flow switch, differential pressure water flow switch

Product Description

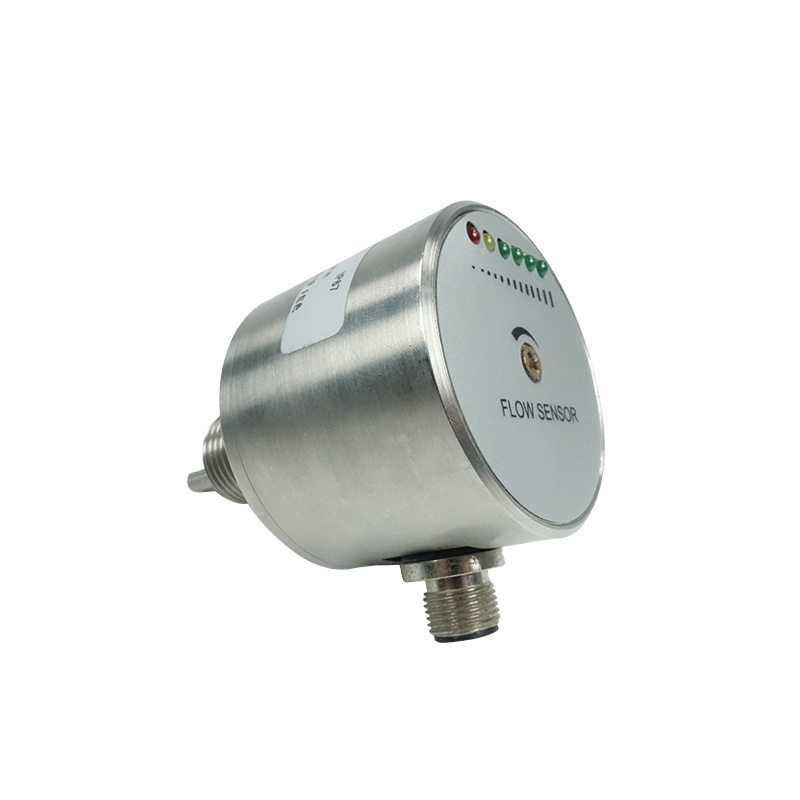

1.CX-FS-FR12 type Electronic flow switch , also known as Differential thermal flow switch and Thermal flow switch . The set range is 1-20m/s. Have relay output (230VAC.4A) .

2.Suitable for different kinds fluid .Concise and direct indicator ,and with high reliable.

Based on the principle of thermal theory, there are two resistances in the closed probe .

3.One resistance was heated and regarded as detected resistance , the other one was heated and regarded as standard resistance .

4.When the medium is flowing ,the heat on the heated resistance will be taken away and the resistances’ value will be changed . The differential resistances value is the basis of determining the flow velocity .

what\s the main features of electronic flow switch flow switch ?

1.No movable parts .

2.Maintenance free.

3.Easy installation.

4.Suitable for variable diameter demand .

5.Switching value can be adjusted continuously.

6.Extremely low pressure loss .

7.Compact structure .

8.LED indicator display flow trend and switch state .

what's the technical parameters of electronic flow switch ?

Type	Description
CX-FS-FR11-G12H-DA-Q	G1/2 connection ,DC24V power supply ,4-20mA output
CX-FS-FR11-G12H-DC-RQ	G1/2 Connection ,DC24V power supply , relay output
CX-FS-FR11-G12H-WC-RC	G1/2 connection ,AC220V power supply , relay output

Type	description
CX-FS-FR12-G12H-DC-RQ	G1/2 connection ,DC24V power supply ,relay output

Real Details

PERFECT UNDER DETAILS

We do Best in every details t o produce Best products .

Application

Gas-liquid dual-use, can be widely used in industrial automation / mechanical equipment / air compressed industrial / refrigeration and air conditioning, industrial applications specific applications in water-cooled welding, laser equipment cooling system, vacuum coating machine, furnace, polycrystalline silicon ingot furnace .

Types

Our Services

1) We are Alibaba Assessed 8 years Gold Supplier .

2) We have about 30 years experience in production.

3) Our products have been exported to more 100 countries and area .

4) 100% QC inspection Before Shippment.

5) ISO,CE standard and factory price.

Exhibition

We believe exhibition is the Direct way to check product quality.
