* Uses the highest efficiency mono-crystalline solar technology
* Ultra-light, waterproof, and corrosion resistant making them the perfect option for marine applications, RVs, camping and
emergency back-up charger
* Optional match charge controller required for safer battery charging
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1130*520*2mm
-
Panel Efficiency:
-
21.4%
-
Product name:
-

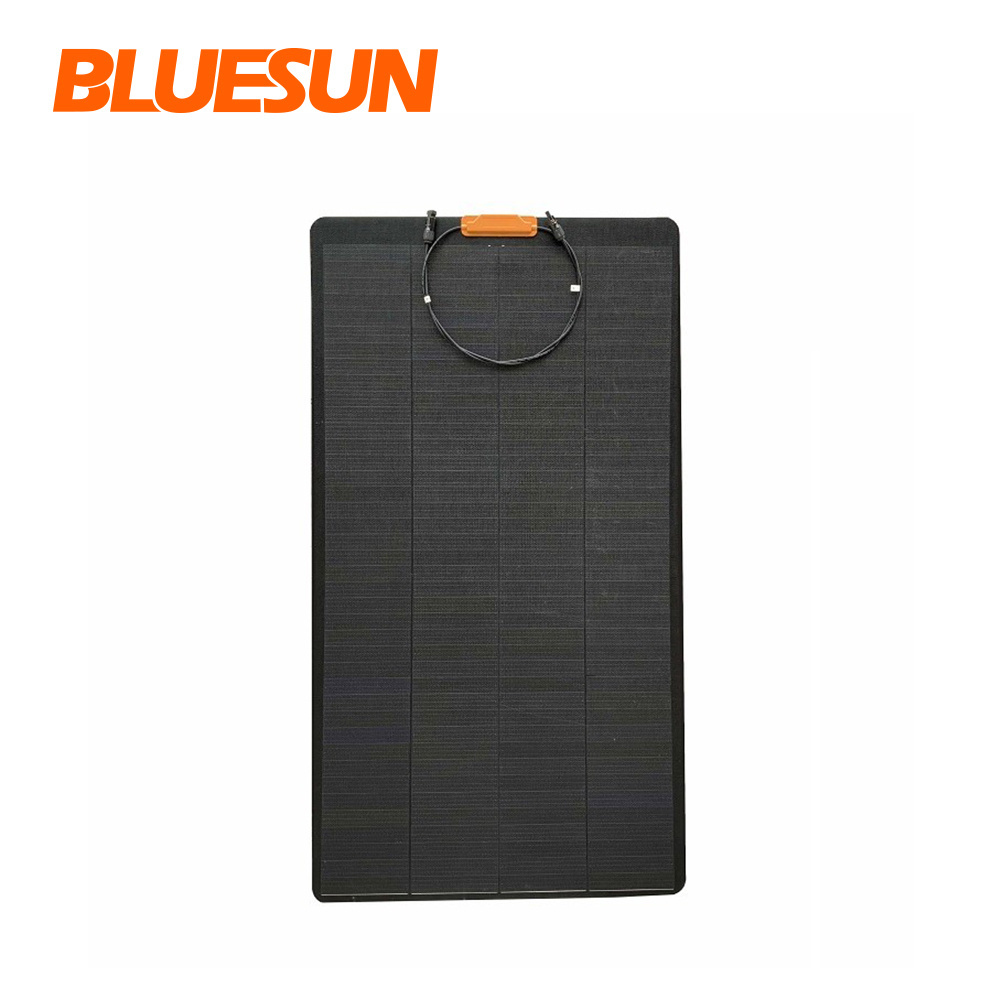

110W Shingled Semi-Flexible Solar Panels
-
Maximum System Voltage:
-
100V
-
Module Weight:
-
2.5KG
-
Cable:
-
900mm / 2.5mm2
-
Warranty:
-
30 Years Warranty
-
Working Temperature:
-
-40℃~+80℃
-
Module Structure:
-
Aluminum Frame / Glass / EVA / Backsheet (Black/White)
-
Pallet Dimensions:
-
1130*520*2mm
-
Gross Weight per Pallet:
-
115kg
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM-SFLEX-110W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1130*520*2mm
-
Panel Efficiency:
-
21.4%
-
Product name:
-
110W Shingled Semi-Flexible Solar Panels
-
Maximum System Voltage:
-
100V
-
Module Weight:
-
2.5KG
-
Cable:
-
900mm / 2.5mm2
-
Warranty:
-
30 Years Warranty
-
Working Temperature:
-
-40℃~+80℃
-
Module Structure:
-
Aluminum Frame / Glass / EVA / Backsheet (Black/White)
-
Pallet Dimensions:
-
1130*520*2mm
-
Gross Weight per Pallet:
-
115kg
-
Certificate:
-
CE
Products Description
-Flexible Solar Panel as wafer thin, lightweight, and can mold to a curved surface
Technical Specification
|
Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ |
|
|
|
|
|
|
|
|||||||
|
Nominal Power
|
|
60W
|
|
110W
|
|
160W
|
|
|||||||
|
Cell Type
|
|
Monocrystalline
|
|
|
|
|
|
|||||||
|
Cell Efficiency
|
|
21.40%
|
|
|
|
|
|
|||||||
|
Maximum Power Current (Impp)
|
|
3.30A
|
|
5.71A
|
|
7.27A
|
|
|||||||
|
Maximum Power Voltage (Vmpp)
|
|
18.15V
|
|
19.25V
|
|
22V
|
|
|||||||
|
Open-circuit Voltage (Voc)
|
|
21.45V
|
|
22.75V
|
|
26V
|
|
|||||||
|
Short-circuit Current (Isc)
|
|
3.81A
|
|
6.22A
|
|
7.79A
|
|
|||||||
|
Maximum System Voltage
|
|
100V
|
|
|
|
|
|
|||||||
|
Output Tolerance
|
|
3.00%
|
|
|
|
|
|
|||||||
|
Cable
|
|
900mm / 1.5mm2
|
|
900mm / 2.5mm2
|
|
900mm / 2.5mm2
|
|
|||||||
|
Connector Type
|
|
PV Compatible
|
|
|
|
|
|
|||||||
|
Module Structure
|
|
ETFE / EVA / Backsheet
|
|
|
|
|
|
|||||||
|
Junction box rating
|
|
≥IP67
|
|
|
|
|
|
|||||||
|
Number of Diodes
|
|
One
|
|
|
|
|
|
|||||||
|
Working Temperature
|
|
-40℃~+80℃
|
|
|
|
|
|
|||||||
Semi-flexible Panels are weather, water and corrosion resistant making them a perfect option for marine applications, RVs, camping and emergency back-up. These panels can continuously recharge batteries with the power of the sun. Light enough and durable enough to mount permanently outdoors on a range of vehicles.
Feature Display
Application Scenario
* Camping trips, as power banks on your tent.
They can also be safely rolled and stored when not in use. (These are also called camping solar panels.
* Long-distance travel in an RV. Of course, you could also carry a noisy generator for your power needs, or simply enjoy a serene drive with a flexible solar panel installed on your RV!
* For boating/fishing/yachting trips. Again, ditch the generator, and let the fish be lured by the serenity of your noise-free environment.
* Daily power backup. Do you find yourself constantly on the road, perhaps off the grid, panicking about your phone losing charge? Instead, you can slap on a flexible solar panel on top of your vehicle and allow it to serve as your sleek, eco-friendly power-bank.
* Long-distance travel in an RV. Of course, you could also carry a noisy generator for your power needs, or simply enjoy a serene drive with a flexible solar panel installed on your RV!
* For boating/fishing/yachting trips. Again, ditch the generator, and let the fish be lured by the serenity of your noise-free environment.
* Daily power backup. Do you find yourself constantly on the road, perhaps off the grid, panicking about your phone losing charge? Instead, you can slap on a flexible solar panel on top of your vehicle and allow it to serve as your sleek, eco-friendly power-bank.
Packing & Delivery
*Exquisite Packaging is Suitable for E-Commerce Sales & Resale
Single Package
Packing specification 30/33/56 Pieces per Pallet
|
Packaging
|
|
|
|
|||
|
Module Dimensions
|
880*350*2mm
|
1130*520*2mm
|
1220*680*2mm
|
|||
|
Module Weight
|
1.3KG
|
2.5KG
|
3.5KG
|
|||
|
Package
|
Single Package
|
|
|
|||
|
Pieces per Pallet
|
56
|
33
|
30
|
|||
|
Gross Weight per Pallet
|
1200*1100*700mm
|
1200*1100*700mm
|
1240*1100*840mm
|
|||
FAQS
Certifications
Our Company
Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!
