Quick Details
-
Max Power:
-
3530W
-
Blades Rotor Diameter:
-
4/4.8m
-
Blade Quantity & Material:
-
3 P cs / F RP
-
Rated Rotate Speed:
-
280(r/min)
-
Approx Start Torque:
-
3.6(N.M)
-
Generator Type:
-
PMG AC Direct Drive
-
Generator Material:
-
Carbon steel body+ 100% copper wire+ Nd-Fe-B
-
Rated Wind Speed:
-
10 m/s (22.4 mph)
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model:
-
3000G
-
Rated Power:
-
3000W
-
Max Power:
-
3530W
-
Blades Rotor Diameter:
-
4/4.8m
-
Blade Quantity & Material:
-
3 P cs / F RP
-
Rated Rotate Speed:
-
280(r/min)
-
Approx Start Torque:
-
3.6(N.M)
-
Generator Type:
-
PMG AC Direct Drive
-
Generator Material:
-
Carbon steel body+ 100% copper wire+ Nd-Fe-B
-
Rated Wind Speed:
-
10 m/s (22.4 mph)
high efficient horizontal 3kw wind turbine for sale
high efficient horizontal 3kw wind turbine features
1. C asting aluminum alloy body , compact , little vibration
2. Excelent output, 1 kw wind genrator is often used in conjunction with solar panels to provide more reliable year-round energy supply.
3 . R einforced glass fiber blades,matched with optimized aerodynamic shape and structure,which
enhance the wind energy utilization and annual output.
4 . T ail adopts mechanical yaw technique , making it survive storm and run safely
7 . Controller,inverter can be matched acco r ding to customers’ specific needs

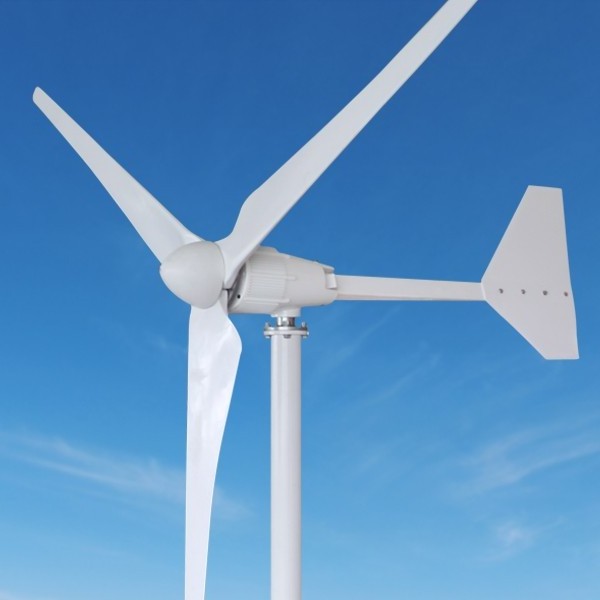

Real Photo of high efficient horizontal 3kw wind turbine for sale
Project Example of high efficient horizontal 3kw wind turbine for sale
We are professional manufacturer of wind turbine system and wind solar system for 7 years. If you need offer of the whole 3kw wind system as above, contact Lareina Ling for more information.
|
Model |
3 000 G |
|
|
Rated Power |
3 000W |
|
|
Max Power |
353 0W |
|
|
Blades Rotor Diameter |
49 00mm /5200mm |
|
|
Blade Quantity & Material |
3Pcs / FRP |
|
|
Rated Rotate Speed |
28 0(r/min) |
|
|
Start Torque |
3 . 6 (N.M) |
|
|
Generator Type |
PMG AC Direct Drive |
|
|
Generator Material |
Carbon steel body+ 100% copper wire+ Nd-Fe-B |
|
|
Normal Output Voltage from Generator |
48v AC / 96v AC /120v AC |
|
|
Optional Output Voltage from Inverter |
110V-240VAC |
|
|
Start Wind Speed |
2.5m/s (5.6 mph) |
|
|
Rated Wind Speed |
1 0 m/s (2 2.4 mph) |
|
|
Working Wind Speed |
3-25m/s (6.72-56 mph) |
|
|
MAX. Design Wind Speed |
50m/s (112mph) |
|
|
Suggested Tower Height |
9 m( 2 9. 52 ft) higher available |
|
|
Approx Top Weight |
220 kg |
|
|
Protection method |
Tail vane Auto lean |
|
|
Working life |
15-20years |
Application of high efficient horizontal 3kw wind turbine for sale
Application:
• Household, Garden, farm
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting
The good quality horizontal 3 kw wind power generator is often used in conjunction with solar panels to provide more reliable year-round energy supply.
P acking way of high efficient horizontal 3kw wind turbine for sale: 2 Cartons (including 3 blades, 1 generator, 1 dome, 1 tail board and 1 tail rod )
1. The wind generator, inner foam protection.
2. Tower with film package only .
3. Controller and inverter with inner carton box.
4. Pakage size and weight, please refer to our sales.
5. Shipping by sea with FCL, LCL or by air and by express, door to door .
If you have any request in package and shipping please tell our sales we will do according to your request.
