Quick Details
-
Model Number:
-
F745X-16
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
norminal pressure:
-
PN16
-
sealing material:
-
rubber
-
media:
-
water
-
Product name:
-
water level remote control hydraulic cast iron water float valve
-
Certificate:
-
ISO9001:2008 CE
-
Body material:
-
Ductile Iron
-
Type:
-
Normal Open, water control valve
-
Connection:
-
Flange Ends
-
Standard:
-
ANSI BS DIN JIS
Quick Details
-
Port Size:
-
DN50-DN600
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
F745X-16
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
norminal pressure:
-
PN16
-
sealing material:
-
rubber
-
media:
-
water
-
Product name:
-
water level remote control hydraulic cast iron water float valve
-
Certificate:
-
ISO9001:2008 CE
-
Body material:
-
Ductile Iron
-
Type:
-
Normal Open, water control valve
-
Connection:
-
Flange Ends
-
Standard:
-
ANSI BS DIN JIS

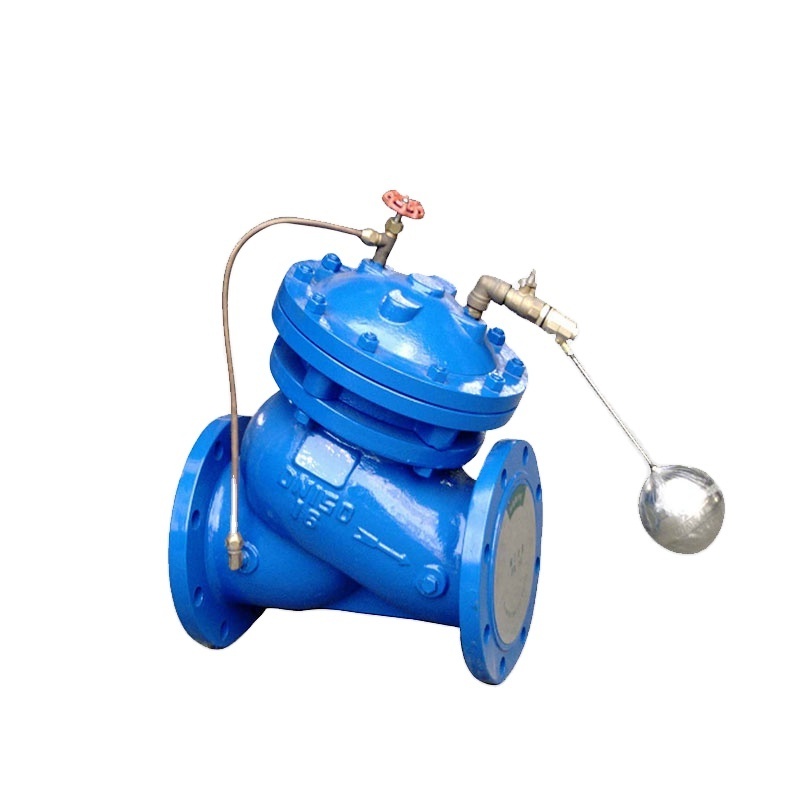

water level remote control hydraulic cast iron water float valve
Brief figure of main structure
main dimensions
| DN(MM) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| valve long | 230 | 245 | 280 | 325 | 325 | 367 | 430 | 505 | 580 | 680 | 750 | 780 | 830 | 900 |
pressure and temperature
| working presssure | 10bar | 16bar |
| testing pressure | shell:15bar; seat:11bar | shell:24bar; seat:17.6bar |
| working temperature | 10°C to 120°C | 10°C to 120°C |
| suitable media | water,oil,gas | water,oil,gas |
Features:
1. Work stable and reliable and big flow pass.
2. Disc open quickly and close slowly without water hammer.
3. High precision reducing regulator with large range.
4. Sealing performance and long service life.
Application:
The floating ball valve is suitable for chemical, petroleum, natural gas, metallurgy, and other industries, including hydrogen sulfide medium, and natural gas pipeline with more impurities and serious corrosion.
