Quick Details
-
Brand Name:
-
F&C, F&C
-
Product name:
-

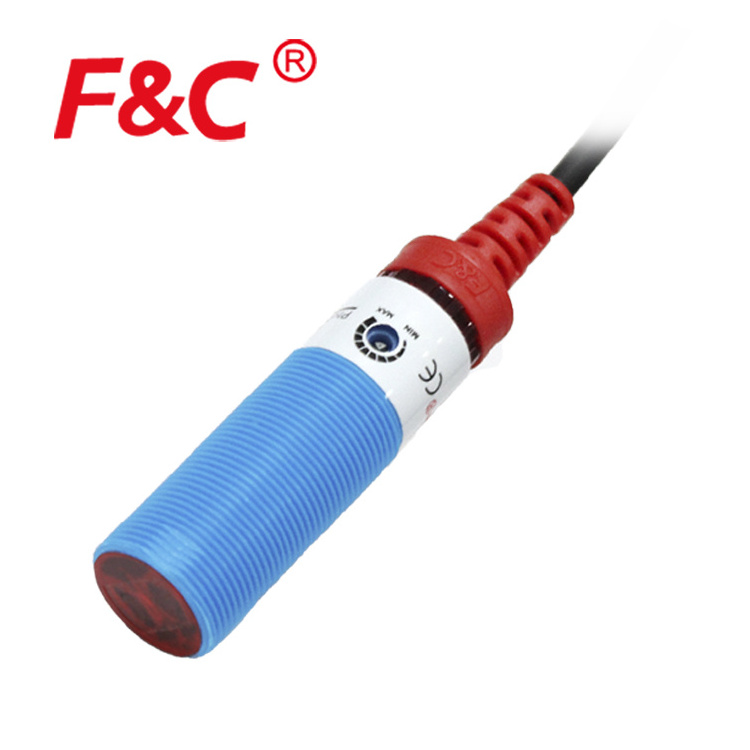

M18 infrared photo light sensor switch diffuse reflex type
-
Detection mode:
-
adjustable NPN.NO. NC/ PNP.NO.NC
-
Voltage:
-
12-24VDC 10%
-
Detection distance:
-
100mm
-
Ligh source:
-
850um infrared
-
Certificate:
-
CE
-
Entry cable:
-
dia4*2m/3 wires
-
Waterproof:
-
IP66
-
photo light sensor switch:
-
photo light sensor switch
Quick Details
-
Usage:
-
Position Sensor
-
Model Number:
-
DR18RI-S10N
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
F&C, F&C
-
Product name:
-
M18 infrared photo light sensor switch diffuse reflex type
-
Detection mode:
-
adjustable NPN.NO. NC/ PNP.NO.NC
-
Voltage:
-
12-24VDC 10%
-
Detection distance:
-
100mm
-
Ligh source:
-
850um infrared
-
Certificate:
-
CE
-
Entry cable:
-
dia4*2m/3 wires
-
Waterproof:
-
IP66
-
photo light sensor switch:
-
photo light sensor switch
PNP.NO.NC M18 infrared photo light sensor switch DR18RI-S10N diffuse reflex type photo switch
Specifications for photo light sensor switch:
| Model | DR18RI-S10N R2M |
| Output Method | NPN NO |
| Detection Type | Diffuse |
| Standard Detection Object Size | 10cm*10cm(White Paper) |
| Detection Distance | 10cm |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |
Features and advantages for photo light sensor switch:
1. Intelligent Type model, not effected by the angle of detection.
2. Powerful visible infrared Led light with 10mm spot.
3. A.P.R circuit .
4. Adjustable NO NC output.
5. OEM order accepted.
Know more information about the products, welcome to contact me at any time via skype: Jelena_wang2016
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production , We will ship our product to you by Air or sea.
