Quick Details
-
Product name:
-

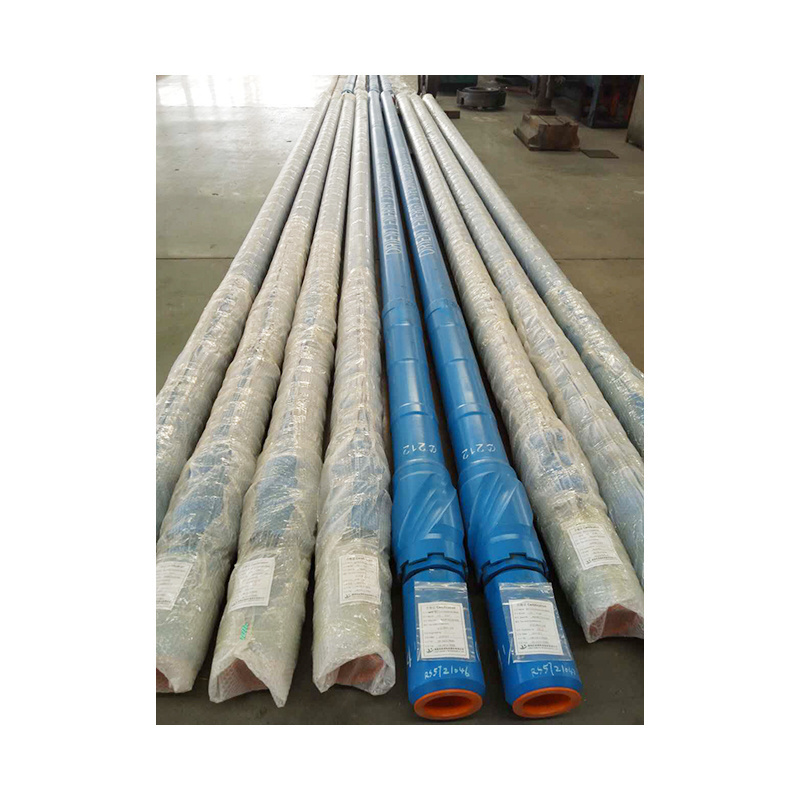

drilling mud motor
-
Size:
-
as request
-
lobe and stage:
-
3:4,5:6,7:8,9:10
-
temperature:
-
95-180 degree
-
Types:
-
Straight housing, Adjustable bend housing, Fixed degree housing
-
characteristic:
-
using to drill with drill bits
-
shape:
-
custom-made
Quick Details
-
Weight (KG):
-
60
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DY On-tech
-
Product name:
-
drilling mud motor
-
Size:
-
as request
-
lobe and stage:
-
3:4,5:6,7:8,9:10
-
temperature:
-
95-180 degree
-
Types:
-
Straight housing, Adjustable bend housing, Fixed degree housing
-
characteristic:
-
using to drill with drill bits
-
shape:
-
custom-made
brushless micro cordless boat mud long electric tail strong drill motor kit for drilling water wells 20 volt machine
1. About the Manual
Drilling MOTOR is a powerful and reliable positive displacement motor. The motor generates an optimum balance of rotational speed and high torque to drive a variety of drill bits at speeds that maximize tool life and performance. We offers a choice of flow rates, speeds, and torques to match a wide range of operational parameters. Our motors are used in applications such as straight hole drilling, directional (steerable) drilling, horizontal drilling, hole opening, and re-entry(work over).
2. CONSTITUTION
Downhole motors differ in size and performance characteristics, but they share the same basic components as follows:
Crossover Sub
Safety Catch Sub
Power Section
Coupling Assembly
Bearing Assembly
| Model |
Bit Size (mm) |
Lobe | Stage |
Flow Rate (lpm) |
Rotary Speed (rpm) |
Diff. Pressure (Mpa) |
Working Torque (N.M) |
Max. Torque (N.M) |
| H7LZ95*7.0 | 118-152 | 7:08 | 3 | 360-780 | 118-260 | 4 | 1748 | 3146 |
| 5LZ105*7.0 | 121-152 | 5:06 | 4 | 450-900 | 146-292 | 3.2 | 1248 | 1656 |
| 7LZ105*7.0 | 121-152 | 7:08 | 6 | 420-780 | 123-228 | 4.8 | 2214 | 3128 |
| 9LZ105*7.0 | 121-152 | 9:10 | 4 | 498-997 | 132-265 | 3.2 | 1630 | 2165 |
| 5LZ120*7.0 | 149-200 | 5:06 | 3 | 694-1388 | 140-278 | 2.4 | 1620 | 2288 |
| 5LZ120*7.0I | 149-200 | 5:06 | 4 | 694-1388 | 140-278 | 3.2 | 2160 | 2869 |
| 5LZ120*7.0II | 149-200 | 5:06 | 5 | 560-1300 | 140-280 | 4 | 2344 | 3312 |
| H5LZ120*7.0 | 149-200 | 5:06 | 2.5 | 480-900 | 114-214 | 3 | 1800 | 3240 |
| 7LZ120*7.0 | 149-200 | 7:08 | 4 | 745-1489 | 130-261 | 3.2 | 2468 | 3277 |
| 7LZ120*7.0I | 149-200 | 7:08 | 6 | 745-1489 | 130-261 | 5.2 | 4010 | 5325 |
We have more than 10 years fabricating experience and more than 3 years international trading experience.
