Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VS
-
Board Size:
-
77mm x 45mm x 12mm
-
Contrast Ratio:
-
500:1 (Typ.) (TM)
-
Video Input:
-
VGA AV1 AV2
-
OSD:
-
Brightness Contrast Auto Language And So On
-
Reversing:
-
Support Automatically Switch To AV2 When Connector ACC to 12V
-
Outline Size:
-
155.2 x89.4x5.7 (HxVxD)
-
Resolution:
-
800x480
-
Brightness:
-
400 cd/m² (Typ.)
-
Interface:
-
Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Quick Details
-
Type:
-
TFT LCD with Board, TFT
-
Display Size:
-
6.5 inch
-
Supplier Type:
-
Manufacture
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VS
-
Board Size:
-
77mm x 45mm x 12mm
-
Contrast Ratio:
-
500:1 (Typ.) (TM)
-
Video Input:
-
VGA AV1 AV2
-
OSD:
-
Brightness Contrast Auto Language And So On
-
Reversing:
-
Support Automatically Switch To AV2 When Connector ACC to 12V
-
Outline Size:
-
155.2 x89.4x5.7 (HxVxD)
-
Resolution:
-
800x480
-
Brightness:
-
400 cd/m² (Typ.)
-
Interface:
-
Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Product Description
|
Product Name:
|
Reversing Driver Board Vga 2Av 50Pin Ttl 6.5'' Ultra Thin Lcd Screen 6.5 Inch Replacement Lcd Screen For Lg Tv
|
|
Details
:
|
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480 Outline Size 155.2 × 89.4×5.7 (H×V×D) Display Area 143.4 × 76.7 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC Backlight WLED Input Voltage 3.3V (Typ.) |
|
Compatible Work With:
|
LCD Controller Board
|
|
Details:
|
VGA 2AV LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: VGA AV1 AV2 Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:77mm x 45mm x 12mm |
|

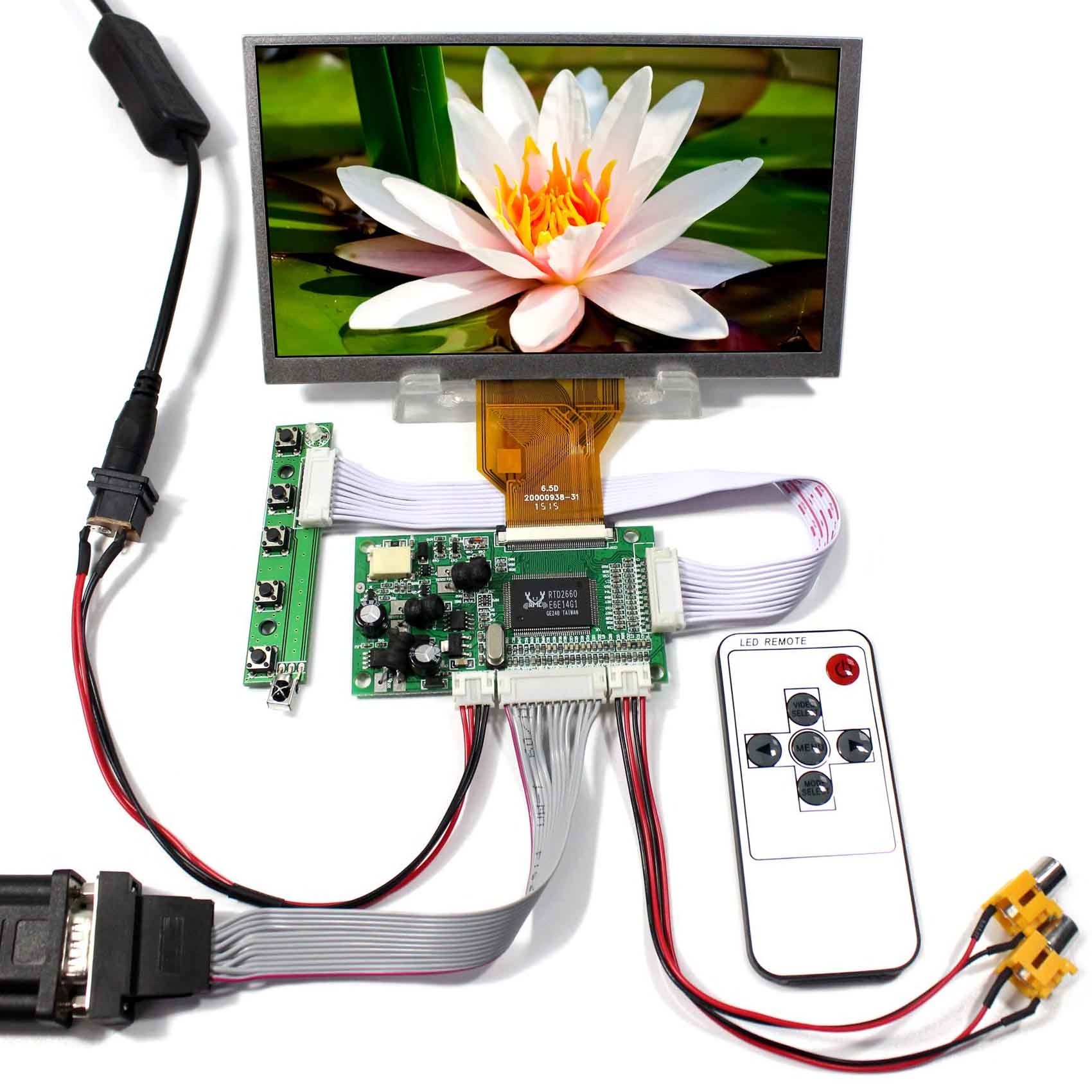

Packing list:
|
1× VGA+2AV LCD Controller Board VS-TY50-V1
1× 6.5inch AT065TN14 800X480 LCD Screen 1× Keyboard With Cable 1× Remote Control(Battery Not included) |
