Using Class A Non-inflammability material, all of the index is zero including combustion index, heat dissipation index, flame index, smog index, etc. No radioactivity for A type decoration material and unlimited for the production, sale and application range. The green wall material is consisted of unique nicotinamide crystal molecular structure after high temperature and high pressure process with many silicate and calcium substances, with excellent stable performance.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiaheng
-
Model Number:
-
XWLS
-
Color, pattern and Diemension:
-
Can be Customized
-
Surface:
-
polished, sanding,textured
-
Thickness:
-
6/7/8/9/10/12/20/24 mm
-
Edge:
-
Square Edge
-
Density:
-
1.25---1.4 G/cm3
-
Fire Resistance:
-
A Class
-
Max Length:
-
3000mm
-
Width:
-
1200-1220mm
-
Service:
-
OEM
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiaheng
-
Model Number:
-
XWLS
-
Color, pattern and Diemension:
-
Can be Customized
-
Surface:
-
polished, sanding,textured
-
Thickness:
-
6/7/8/9/10/12/20/24 mm
-
Edge:
-
Square Edge
-
Density:
-
1.25---1.4 G/cm3
-
Fire Resistance:
-
A Class
-
Max Length:
-
3000mm
-
Width:
-
1200-1220mm
-
Service:
-
OEM
Jiaheng product line
Product details
Green Wall Material
Green Energy Conservation
Effectively reduce the water and electricity, consumptive material, reduce the construction waste and dust pollution, shorten the construction period, greatly reduce the building activities and energy consumption for building use, reduce 50% civilized construction cost of the part project of branch company.
Green Construction Working
Greatly improve the labor efficiency, reduce the site construction workers quantity, save the labor cost, realize the aim of energy conservation, saving land, saving water and environment protection. Reduce the dust, noise, pollution water, poison gas and construction waste.
Class A Environmental Protection
Using the class A non-inflammability and inorganic property materials. No radiation, no deformation, stable physical and chemical performances.
Specification
|
Items
|

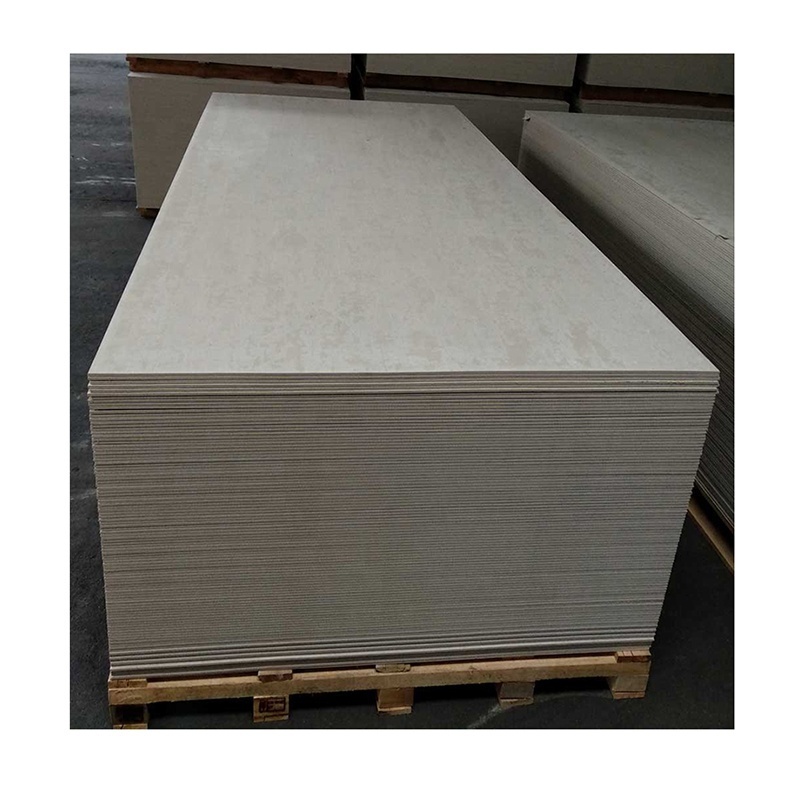

Middle Density Fiber Cement Board, FC Partition Wall Board
|
|
|
||
|
Executive Standard
|
JC/T412.1-2006 Fiber Cement Flat Sheets Part 1: Non-asbestos Fiber Cement Flat Sheets.
|
|
|
||
|
Product Ingredient
|
Low alkali cement/high purity quartz sand/ perlite and other mineral fillers/plant fibers
|
|
|
||
|
Standard dimension (mm)
|
2440×1220×6-24mm,other size can be customized
|
|
|
||
|
Density (g/cm3)
|
1.25<D≤4
|
|
|
||
|
Water Absorption %
|
≤40
|
|
|
||
|
Rate of Water Content %
|
≤10
|
|
|
||
|
Bulking Factor %
|
≤0.25
|
|
|
||
|
Rupture Strength (MPa)
|
≥10
|
|
|
||
|
Thermal Conductivity W/(m.k)
|
≤0.3
|
|
|
||
|
Freezing Resistance
|
After 25 freeze-thaw cycles, there was no rupture and stratification.
|
|
|
||
|
Water Impermeability
|
After 24 hours of inspection, there were no wet marks or water droplets on the opposite side of the board.
|
|
|
||
|
Environmental Protection Evaluation
|
100% asbestos-free, non-hazardous substances
|
|
|
||
|
Radioactivity
|
Class A materials, with unrestricted range of production, sale and use in conformity with the Limits of Radionuclides in Building Materials(GB6566-2001)
|
|
|
||
|
Non-inflammability
|
Class A in-combustibility conforms to Classification for Burning Behavior of Building Materials and Products (GB8624)
|
|
|
||
|
Color, pattern and surface
|
Can be customized
|
|
|
||
Colors
Applications
Certifications
Carry Notice
Notice for Storage and Carry
1. The board materials must be put on the wood pallet/bracket in horizontal placement.
2. It is not allow to put the board materials at the place of fixed position.
3. Make a measure to prevent rain and snow weather if the board materials in outdoor circumstance.
4. Make sure to keep the board materials untouched the water or liquid substance directly at any time.
5. Lift up the two end of the board materials in carefully when carry them, keep the oblique angle of the board materials when move them.
6. Single people to carry and operate the board materials is prohibited, deformation handling of the board materials is not allowed too.
FAQ
1.
Brand Positioning
A: Be the first choice of building board for international buyers.
2.
Brand advantages
A: reasonable price
B: good quality
C: on time delivery
3.
Product categories
A: Ceiling Board
B: Fireproof Board
C: Interior Wall Board
D: Exterior Wall Board
E: Floor Board
4. Are you manufacturer?
A: Yes, we are a factory founded in 2006 with oversea team for international service.
We have 4 production lines, yearly capacity can be 100,000 square meters.
5.Which port can you support?
A: Guangzhou Port or Shenzhen port or any other China port you need.
6. What's your MOQ?
A: Most customers choose 1x20"GP as trial order. Small orders are also accepted.
7. What is your Payment methods?
A:T/T 30% deposit and 70% defore shipment.
8. What is your lead time/production time?
A: Within 15 working days after receiving deposit.
9. How is Jiaheng brand?
Jiaheng has:
A: Jiaheng has:
13+ years: manufacture and R&D experience
20,000 square meters factory
Output capacity: 10 million square meters
10. What certifications do you have?
A: ISO9001, CE, ISO8001 certifications etc. 100% quality check before each shipment.
11. What is the Shipping Way?
A: By sea to your nearest seaport.
12. What kinds of fiber cement board you can provide?
A: Support fiber cement board, calcium silicate board, fiber cement siding board, colored cement board, lightweight composite wall panel, fireproof board, ceiling board, customized board etc.
13. What is the standard size?
A: 1220*2440mm, 3000*2440mm, thickness 5-24mm
14.Is it possible to customization for special size?
A: Yes, support to produce the special size if bulk order.
15. What is advantage of your fiber cement board?
A: –Surface: Polished treatment on surface
–Pakage: Loaded by pallet with good packing
–Asbestos free: 100% asbestos free
–Approved: CE, ISO9001, SGS, Test Report
16.Q16: Do you have samples?
A: –Yes, we can send you the sample for free, but the freight is collected.
