Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6100x1300x2000
-
Machine Weight:
-
7000 kg
-
Bucket capacity:
-
1.2CBM
-
Marketing Type:
-
Hot Product 2023
-
Rated Speed:
-
2400r/min
Quick Details
-
Engine Brand:
-
YUCHAI
-
Power:
-
66.2kw
-
Brand Name:
-
customizable
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6100x1300x2000
-
Machine Weight:
-
7000 kg
-
Bucket capacity:
-
1.2CBM
-
Marketing Type:
-
Hot Product 2023
-
Rated Speed:
-
2400r/min
|

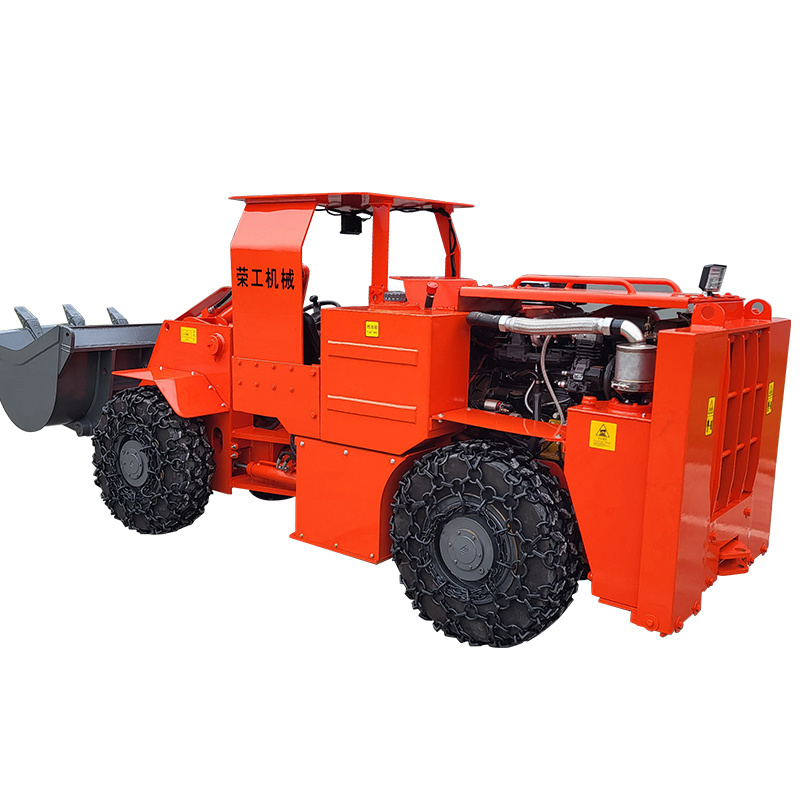

Performance parameters of RGCY-10 scraper
|
|
|
|
|
||||
|
Machine parameters (theoretical )
|
|
|
Machine parameter
|
|
||||
|
Item
|
Argument
|
|
Item
|
Argument
|
||||
|
Minimum turning radius（MM）
|
4760
|
|
Body length（MM）
|
6100
|
||||
|
Theoretical climb Angle（°）
|
18
|
|
Body width（MM）
|
1300
|
||||
|
Maximum travel speed（KM）
|
9.5
|
|
Body height（MM）
|
2000
|
||||
|
Minimum travel speed（KM）
|
5
|
|
Minimum ground clearance（MM）
|
180
|
||||
|
Maximum unloading height（MM）
|
1700
|
|
Wheel track（MM）
|
980
|
||||
|
No-load lifting time（S）
|
≤3.1
|
|
Rated load mass（KG）
|
2000
|
||||
|
No-load descent time（S）
|
≤2.5
|
|
Machine weight（KG）
|
7000
|
||||
|
Unloaded time（S）
|
≤1.2
|
|
Bucket is long, deep.high（MM）
|
1300.1270.720
|
||||
|
Ternary sum（S）
|
≤7.8
|
|
A surname （m³）
|
1.0
|
||||
|
Wheelbase（MM）
|
2294
|
|
Maximum rising power（KN）
|
55
|
||||
|
Discharge distance（MM）
|
1200
|
|
Maximum tractive effort（KN）
|
48
|
||||
|
Discharge Angle（°）
|
35.1
|
|
Combined tractive force（KN）
|
51
|
||||
|
Engine parameter
|
|
|
Transmission system parameter
|
|
||||
|
Item
|
Argument
|
|
Item
|
Argument
|
||||
|
Rated power（KW）
|
66.2
|
|
Type
|
280 High low speed
|
||||
|
Rated speed（r/min）
|
2400
|
|
Braking form
|
Air brake
|
||||
|
Number of cylinders
|
4
|
|
Tyre type
|
975-18
|
||||
FAQ
1. How about the sample policy?
We can accept sample order for testing quality. But sample and express charge should be on customer’s account.
2. How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order,so that we will give you a detailed schedule.
3. How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
4.Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.
5.Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
