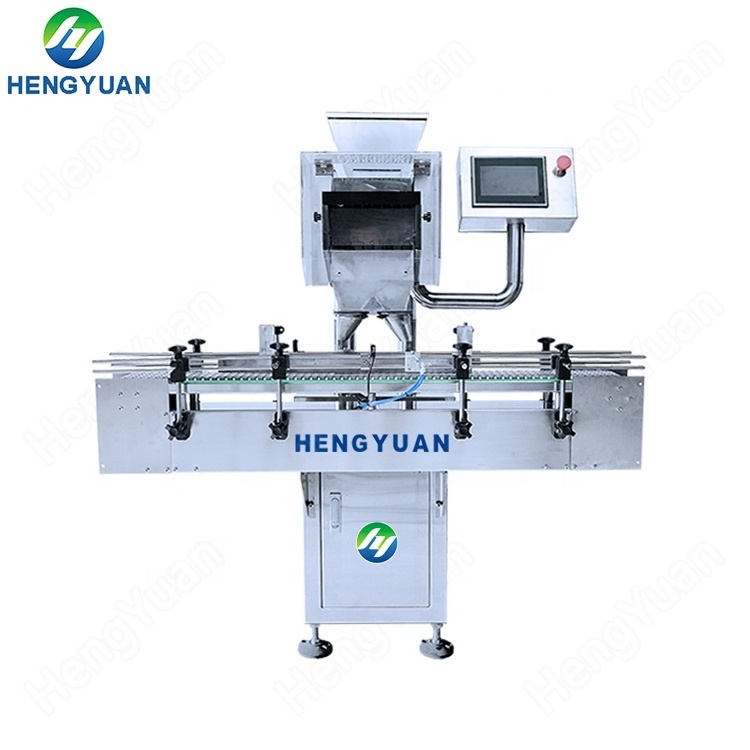

Automatic Electronic Counting Machine is mainly used for bottle packing of tablets (including abnormal tablets), capsules, gels (including transparent gels and opaque gels) pills and similar solid granules. Highly accurate counting.
Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.
Feeding evenly with quiver, special patent filling part protects materials from harm.
No bottle under the filling hopper, no materiel in the supply hopper, or the photoelectric sensor box is abnormal, the machine makes alarm.
The special filling hopper avoids the materials jam, small mouth bottle can quickly bottling. (Available as an option)
You can choose the advanced device of getting rid of powder and the device of getting rid of static electricity. (Available as an option)
Sound and light alarm. (Available as an option)
Detection options include: lack of products in the supply hopper, damaged tablet, weighing systems online. (Available as an option)
Fully compliant to GMP regulations.
Product Application
Automatic Electronic Counting Machine is mainly used for bottle packing of tablets (including abnormal tablets), gels (including transparent gels and opaque gels) pills and similar solid granules.
|
Technical Parameters
|
|
|
||
|
Model
|
HYJF-8-2-A
|
HYJF-8-2-B
|
||
|
Applicable
|
0-5#capsules, soft capsules, φ5.5-12 normal tablets, special shape tablets, coating tablets and other solid granules
|
00-5#capsules, soft capsules, <φ22 normal tablets, special shape tablets, coating tablets, φ3-20pills and other solid granules
|
||
|
Capacity
|
0-40BPM
|
|
||
|
Working range
|
Adjust from 2-9999 per bottle
|
|
||
|
Power supply
|
220V/110V, 50Hz/60Hz, 0.6kw
|
|
||
|
Air supply
|
0.6Mpa, 10-18l/min
|
|
||
|
Size
|
140x130x165cm
|
|
||
|
Weight
|
350kg
|
350kg
|
||
|
Remarks
|
Capacity is subject to the type and size of the bottle and tablet, as well as the quantity filled per bottle
|
|
||
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Accurate measuring to get excellent filling effect.
4) Running in a high automatization and intellectualization,no pollution
5) Suitable for a wide range of granules, such as tablets, capsules, gels, beans, hardwares, candy, etc.
Name: Single nozzle filling
Brand: Hengyuan
Original: China
There is photoelectric sensor detect the bottle, bottle is stopped by rail, then fill granules, quantity reachs, filled bottle is conveyed away.
Name:
8 channels feeding material
Brand:
Hengyuan
Original:
China
8 vibrating channels works the same time.
Name:
Vibrating device for channels
Brand:
Hengyuan
Original:
China
It is power of granules running to filling nozzle.
Name:
Operation and setting parameters
Brand:
Delta, Siemens
Original:
Worldwide famous
Operate on touch screen, make machine smart and easy to learn. Multi-language can be customized to meet different needs of user. Brand name can be chosen.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
150 (L) * 140 (W) * 180 (H) cm
|
|
|
Weight
|
460kg
|
|
|
Packaging Details
|
1.The machine is packed by PE film first. Then packed in wooden box.
2. For full container load, we will use pallet. If container is too tight, we will use pe film for packing or pack it according to customers special request. |
|
