Coagulation Analyzer Coagulometer 4 Channels Medical Device

Coagulation Analyzer Coagulometer 4 Channels Medical Device

FOB Reference Price: Get Latest Price

≥1 Pieces

US $290

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: HY5004

Place of Origin:: Anhui, China

Product name:: Semi-Auto Coagulation Analyzer

Software timer:: 4 positions

Test wavelength:: 470nm

Sample consume:: 20uL-40ul

Reagent consume:: 20uL-40uL

Temp control precision:: 37±0.3℃

Repeatability:: Cv < 2%

Coincidence indicator:: ≤3%

Memory:: 10000 test result

Power supply:: 220VAC±15% 50-60Hz

Quick Details

Warranty:: 1 Year

After-sale Service:: Free spare parts

Brand Name:: HouYuan Medical

Model Number:: HY5004

Place of Origin:: Anhui, China

Product name:: Semi-Auto Coagulation Analyzer

Software timer:: 4 positions

Test wavelength:: 470nm

Sample consume:: 20uL-40ul

Reagent consume:: 20uL-40uL

Temp control precision:: 37±0.3℃

Repeatability:: Cv < 2%

Coincidence indicator:: ≤3%

Memory:: 10000 test result

Power supply:: 220VAC±15% 50-60Hz

PRODUCT DESCRIPTION

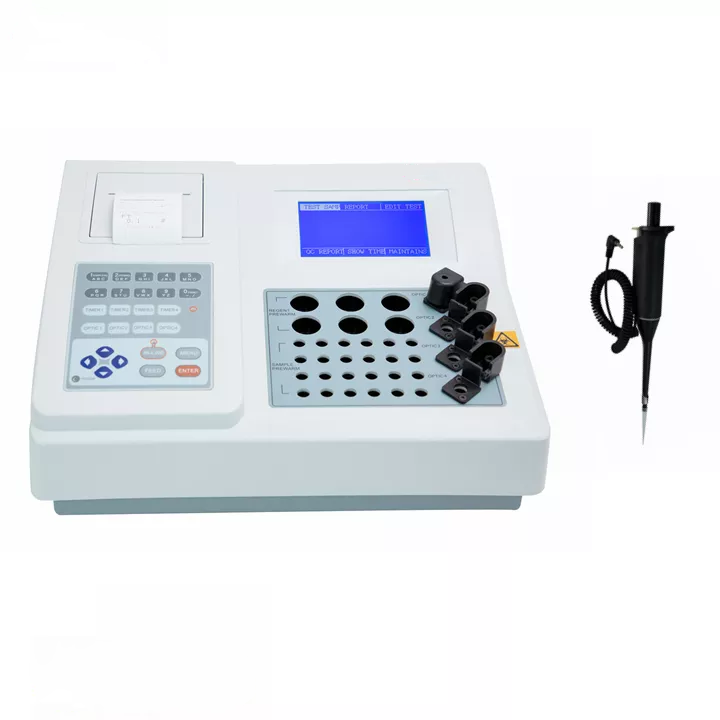

Coagulation Analyzer Coagulometer 4 Channels Medical Device

* Semi Auto Coagulation Analyzer Features:

* Advanced scattered light principle and percentage analysis ensure accurate results.
* Low reagent consumption less than 20uL, open reagent.
* Special testing cup locationsystem, adding sample bracket
* Advanced optical light matching system ensure precision result.
* Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
* Memory for 10.000 testing result
* Internal thermal-sensitive printer
* 240* 128 large LCD display.
* Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors.
* RS232 interface, PC connecting for management software e

Model: HY5004 Semi-auto Coagulation Analyzer

Application Fields: Medical, Clinical, Laboratory, Dental, Vet Etc

Usual test list

Prothrombin PT

Activated Partial thrombopiastin time APTT

Thrombin Time TT

Fibrinogen FIB

RT、VT、VII、IX、 XI、 XII、 II、 V

VII、 X、 PS、 PC、 Xa、 etc

Technical Parameters

HY5004 Semi-Auto Coagulation Analyzer Specification
Testing channels			4 different parameters analysis in the same time
Sample pre-warming position			24 positions
reagent pre-warming position			6 positions
Software timer			4 positions
Test wavelength			470nm
Sample consume			20uL-40ul
Reagent consume			20uL-40uL
Temp control precision			37±0.3℃
Repeatability			Cv < 2%
Coincidence indicator			≤3%
Memory			10000 test result
Notation of Result			S, %, PTR, INR, g/L
Operation language			English
Power supply			220VAC±15% 50-60Hz
Dimensions			370mm(L)×370mm(W)×120mm(H)
Temperature			15℃-30℃ wet≤90%
Weight			8Kg
