The lower mold is fixed and the upper mold is mobile, the inserts have good positioning, and the finished product is automatically ejected.
Low pressure mold closing device to protect mold and shot safety
2-3-4 section temperature control, stepless adjustment of shooting speed, back pressure and screw speed. suitable for molding various precision plastic parts.
Backing machine can be installed to make processed products more perfect.
- Product Details
- {{item.text}}
Quick Details
-
Theoretical Shot Volume(cm³):
-
56 cm³
-
Injection Rate (g/s):
-
20 g/s
-
Injection Weight (g):
-
31 g
-
Screw Speed (rpm):
-
0 - 205 rpm
-
Screw diameter (mm):
-
20 mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Henan, China
-
Open Stroke(mm):
-
300 mm
-
Model Number:
-
JW-200D
-
Brand Name:
-
JAWO
-
Power (kW):
-
6.2 kW
-
Name:
-
Vertical Injection Molding Machine
-
Keywords:
-
Vertical Injection Molding Machine
-
BRAND:
-
JAWO
-
After-sales Service Provided:
-
Spare Parts
-
Voltage:
-
220/380v
-
Feature:
-
High Efficiency Low Cost
-
Advantage:
-
Easy Operation High Efficiency
-
MOQ:
-
1 Set
-
Packing:
-
Woodnen Case
-
Material:
-
SUS304/SUS316L
Quick Details
-
Plasticizing Capacity(g/s):
-
35
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
150 kN
-
Theoretical Shot Volume(cm³):
-
56 cm³
-
Injection Rate (g/s):
-
20 g/s
-
Injection Weight (g):
-
31 g
-
Screw Speed (rpm):
-
0 - 205 rpm
-
Screw diameter (mm):
-
20 mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Henan, China
-
Open Stroke(mm):
-
300 mm
-
Model Number:
-
JW-200D
-
Brand Name:
-
JAWO
-
Power (kW):
-
6.2 kW
-
Name:
-
Vertical Injection Molding Machine
-
Keywords:
-
Vertical Injection Molding Machine
-
BRAND:
-
JAWO
-
After-sales Service Provided:
-
Spare Parts
-
Voltage:
-
220/380v
-
Feature:
-
High Efficiency Low Cost
-
Advantage:
-
Easy Operation High Efficiency
-
MOQ:
-
1 Set
-
Packing:
-
Woodnen Case
-
Material:
-
SUS304/SUS316L
Product Overview

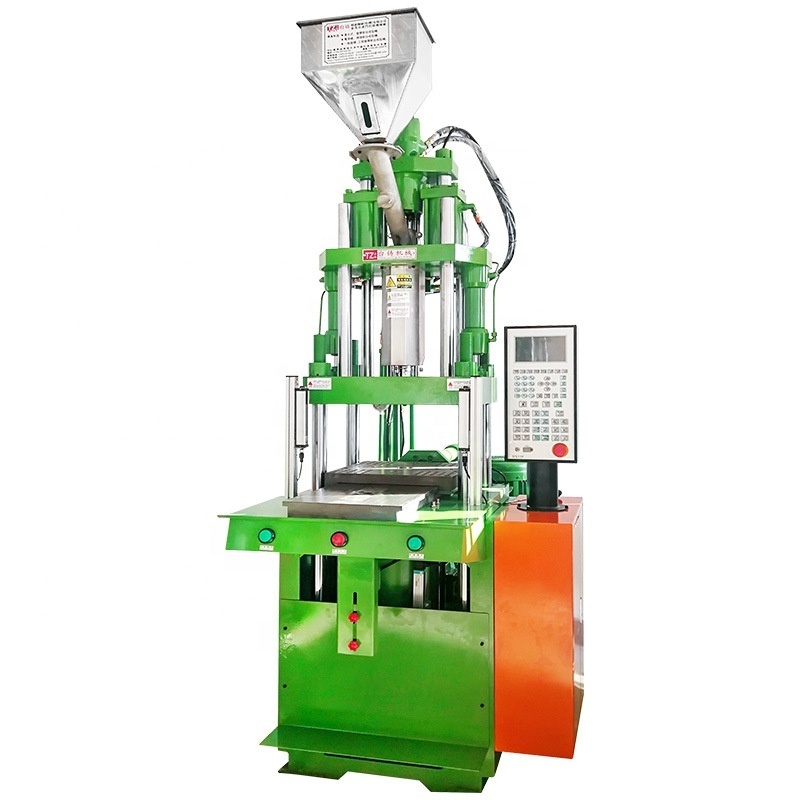

Mini Plastic Injection Molding Machine Pet Preform Injection Molding Machine Vertical Injection Molding Machine
It's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors,cables,auto parts, Plug ,etc.
Features:
Product Paramenters
|
SPECIFICATION
|
|
JW-200D(DM)
|
|
|
|||
|
Screw Type
|
|
A
|
B
|
C
|
|||
|
Screw Diameter
|
mm
|
20
|
25
|
30
|
|||
|
Injection Pressure
|
Kg/cm²
|
2730
|
1747
|
1213
|
|||
|
Injection Weight(PS)
|
g
|
31
|
49
|
71
|
|||
|
Screw Stroke
|
mm
|
100
|
|
|
|||
|
Screw Speed
|
rpm
|
0-205
|
|
|
|||
|
Temperature Section
|
-
|
3
|
|
|
|||
|
Hopper Capacity
|
Liter
|
20
|
|
|
|||
|
Clamping Force
|
ton
|
30
|
|
|
|||
|
Platen Size
|
mm
|
520*370
|
|
|
|||
|
Space Between Tie Bars
|
mm
|
355*205
|
|
|
|||
|
Min.Mold Height
|
mm
|
160/100
|
|
|
|||
|
Opening Stroke
|
mm
|
180
|
|
|
|||
|
Max. Opening Distance
|
mm
|
340/280
|
|
|
|||
|
Ejector Force
|
tons
|
1.3/1.3
|
|
|
|||
|
Ejector Stroke
|
mm
|
45/95
|
|
|
|||
|
Sliding Stroke
|
mm
|
350
|
|
|
|||
|
Max. Mold weight
|
kg
|
90
|
|
|
|||
|
Max. Hydraulic Pressure
|
Kg/cm²
|
140
|
|
|
|||
|
Pump Motor Power
|
KW
|
3.5
|
|
|
|||
|
Heater power
|
KW
|
2.7
|
|
|
|||
|
Total Power
|
KW
|
6.2
|
|
|
|||
|
Machine weight
|
tons
|
1.1/1.2/1.3
|
|
|
|||
|
Machine Dimension(L*W*H)
|
m
|
1.6*1.24*1.9
|
|
|
|||
