Quick Details
-
Lamp Body Material:
-
Aluminum plate
-
Input Voltage(V):
-
110V 220V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25-+60
-
Working Lifetime(Hour):
-
300000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOL
-
Product name:
-
light engine
-
Keyword:
-
led light engine
-
Beam Angle(°):
-
customize
-
Input Voltage:
-
AC90-120V or AC200-240V
-
LED Chip:
-
2835 3030 5050
-
PF:
-
>0.95
-
custom made:
-
YES
Quick Details
-
Color Temperature(CCT):
-
2700-6500k
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Warranty(Year):
-
3-Year
-
Lamp Body Material:
-
Aluminum plate
-
Input Voltage(V):
-
110V 220V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25-+60
-
Working Lifetime(Hour):
-
300000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOL
-
Product name:
-
light engine
-
Keyword:
-
led light engine
-
Beam Angle(°):
-
customize
-
Input Voltage:
-
AC90-120V or AC200-240V
-
LED Chip:
-
2835 3030 5050
-
PF:
-
>0.95
-
custom made:
-
YES

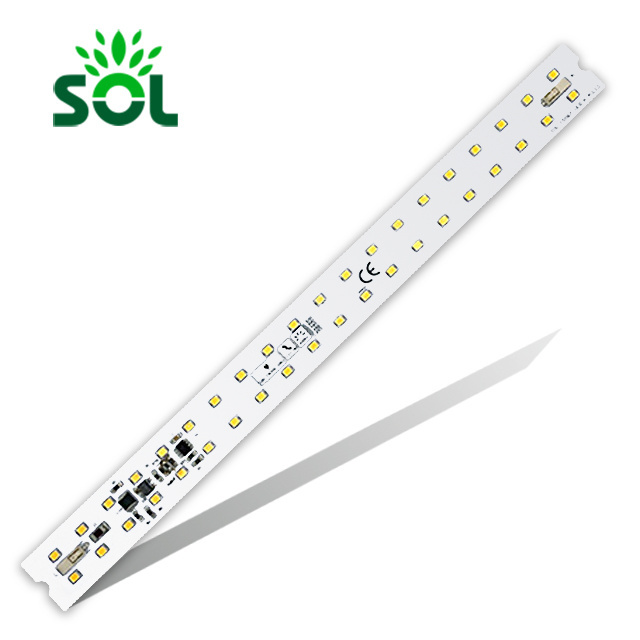

AC LED LIGHT ENGINE
AC LED LIGHT ENGINE ,also called AC MODULE and ac led module, integrate the driver components on the board together with led,No requirement of AC-DC converter. By simply design and reduces components count,it provide a lower cost for your new design or retrofit applications. Also the freedom of size and power make your design flexibility and fast, that keep you ahead of competition on the market.
Features of SOL AC LED Module
|
1.I ntegrated driver(direct to 110Vac/220Vac), high reliability,PF>0.95/no flicker 2. With OVP, OTP and OCP protection and 4KV surge protection, 3 .CE, RoHS certification, 4. CCT:2700K,3000K,4000K,5600K,6500K,CRI>80 or CRI>90 Options, 5. Long life:30,000 hrs,3 years warranty, 6.120 degree beam angle, 7. Dimmable optional(TRAIC,0-10V,PWA) 8. Sensor optional(motion sensor,PIR) 9.High efficiency,high lumen,85lm/W,,100lm/W,120lm/W 10.No UV or infrared Radiation, |
|
|
|
Country: |
India |
|
Products: |
Round AC Module |
|
|
Power: |
12W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
1200lm Ra>80 |
|
|
Material: |
1.0mm thickness ALU |
|
|
Dimension: |
D50mm |
|
|
Application: |
LED bulb lighting source |
|
|
Country: |
Iran |
|
Products: |
Linear AC Module |
|
|
Power: |
18W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
1700lm Ra>80 |
|
|
Material: |
1.0mm thickness ALU |
|
|
Dimension: |
L1160*W9.6mm |
|
|
Application: |
LED tube lighting source |
|
|
Country: |
USA |
|
Products: |
0-10V dimmable AC Module |
|
|
Power: |
20W |
|
|
Input Volate: |
90-130Vac |
|
|
Luminous Flux(CRI): |
1200lm Ra>90 |
|
|
Material: |
1.0mm thickness ALU |
|
|
Dimension: |
D118mm |
|
|
Application: |
American Lamp
|
|
|
Country: |
Croatia |
|
Products: |
AC Module with Magnet |
|
|
Power: |
15W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
1650lm Ra>80 |
|
|
Material: |
1.0mm thickness alu |
|
|
Dimension: |
Outer D140mm Inner D88mm |
|
|
Application: |
Retrofit ceiling lamp |
|
|
Country: |
Germany |
|
Products: |
AC Module |
|
|
Power: |
3W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
400lm Ra>80 |
|
|
Material: |
1.0mm thickness alu |
|
|
Dimension: |
286x28mm |
|
|
Application: |
Car decoration lamp |
|
|
Country: |
Brazil |
|
Products: |
AC COB |
|
|
Power: |
50W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
4000lm Ra>80 |
|
|
Material: |
1.2mm thickness alu |
|
|
Dimension: |
10080x65mm |
|
|
Application: |
Flood light |
|
|
Country: |
USA |
|
Products: |
AC Module |
|
|
Power: |
20W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
2000lm Ra>80 |
|
|
Material: |
1.0mm thickness alu |
|
|
Dimension: |
195x195mm |
|
|
Application: |
Retrofit light fixture |
step1:send me your requirments(power,input voltage,size,CRI,CCT,luminous flux and others)
step2:agreements on design, price,payment,shipping menthod.
step3:samples firstly,if no problem,produce in bulk.
