Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JOBEST Hydraulic Press
-
Voltage:
-
380V/220V Optional, 220V/380V/415V/440V/customized
-
Dimension(L*W*H):
-
1940x950x2350mm
-
Weight (T):
-
63 T
-
Model Number:
-
HP Series Hydraulic Press Machine
-
Motor Power (kw):
-
4 kw
-
Marketing Type:
-
Hot Product 2024
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Product name:
-
High Quality Small Hydraulic Press
-
Keywords:
-
Hydraulic Press Machine
-
Hydraulic Press Machine Usage:
-
Press Machine
-
Press Machine Application:
-
Press
-
Model:
-
HP - 30T 50T 63T 100T 150T 200T 300T 400T 500T
-
Manufacture:
-
JOBEST Hydraulic press machine
-
Optional Parts:
-
Press Brake Mold
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Return Force (kN):
-
450 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JOBEST Hydraulic Press
-
Voltage:
-
380V/220V Optional, 220V/380V/415V/440V/customized
-
Dimension(L*W*H):
-
1940x950x2350mm
-
Weight (T):
-
63 T
-
Model Number:
-
HP Series Hydraulic Press Machine
-
Motor Power (kw):
-
4 kw
-
Marketing Type:
-
Hot Product 2024
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Product name:
-
High Quality Small Hydraulic Press
-
Keywords:
-
Hydraulic Press Machine
-
Hydraulic Press Machine Usage:
-
Press Machine
-
Press Machine Application:
-
Press
-
Model:
-
HP - 30T 50T 63T 100T 150T 200T 300T 400T 500T
-
Manufacture:
-
JOBEST Hydraulic press machine
-
Optional Parts:
-
Press Brake Mold
Small 300 Ton Hydraulic Press Price /300 Ton Hydraulic Press For Track Chain Track Press
Small 300 Ton Hydraulic Press Price /300 Ton Hydraulic Press For Track Chain Track Press

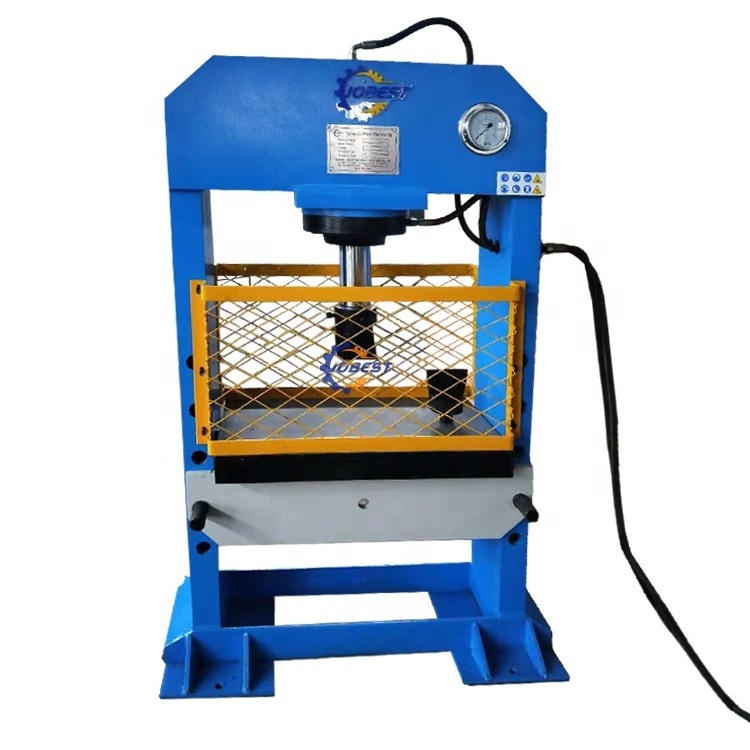

HP (HPB) series hydraulic press (bending machine) is ideal equipment for automotive service. It could be used for mounting, dismounting, alignment, calendaring, stretching, bending, punching, etc.
It adapted Italy CNK and CBZ pump, the double pump combined together to supply oil, so it could save energy 60% and improve efficiency 2-3 multiple compare with the traditional hydraulic press. It takes the advantages of simple structure, high pressure, small size and light weight.
The worktable could be reciprocate moving, so enlarged the open-close height of the machine, and make the machine easy operation.
Design Characteristics
- High efficiency, low-noise
- Well hydraulic control
- Excellent quality
- Can add Press Brake Mould for Bending Function
- Table can be lifted through a chain driven by the main cylinder
Optional Special Device
- Manual Book
- Foot Pedal
- Micro-switch for traverse adjustment
- Hydraulic press include replaceable top tools V-block and support table with stops.
- Operating modus: Semi-automatic,
Small 300 Ton Hydraulic Press Price /300 Ton Hydraulic Press For Track Chain Track Press
| Model | Capacity (KN) |
Pressure (Mpa) |
Travel (mm) | Weight (kg) | Dimension (mm) |
| HP-30T | 300 | 25 | 300/270 | 650 | 1230x550x1180 |
| HP-50T | 500 | 25 | 220/405 | 1100 | 1500x650x1950 |
| HP-63T | 630 | 30 | 220/405 | 1200 | 1850x1500x730 |
| HP-100T | 1000 | 30 | 250/405 | 1420 | 1840x750x2250 |
| HP-150T | 150 | 40 | 250/405 | 1750 | 1840x750x2250 |
| HP-200T | 2000 | 42 | 300/405 | 2400 | 1940x950x2350 |
| HP-300T | 3000 | 42 | 300/405 | 4500 | 2100x950x2700 |
| HP-400T | 4000 | 42 | 300/405 | 5850 | 2300x1000x2900 |
| HP-500T | 5000 | 50 | 300/405 | 6900 | 2300x1000x2900 |
