Quick Details
-
Gross Vehicle Weight:
-
15000
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Dimensions (L x W x H) (mm):
-
8500*2500*3500, 8500*2500*3500
-
Place of Origin:
-
Hubei, China
-
Product name:
-
LPG Tanker Truck
-
Tank material:
-
Q345 Carbon Steel
-
Horse power:
-
120HP/140HP/160HP/170HP/190HP/210HP
-
Driving type:
-
LHD/RHD
-
Emission standard:
-
Euro2/3/4
-
Volume:
-
11-51 CBM
-
Tire:
-
12R22.5
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.Shacman
-
Medium:
-
Lpg Liquified Petroleum Propane Delivery Trucks
Quick Details
-
Condition:
-
New
-
Drive Wheel:
-
4X2
-
Brand Name:
-
Sinotruk
-
Gross Vehicle Weight:
-
15000
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Dimensions (L x W x H) (mm):
-
8500*2500*3500, 8500*2500*3500
-
Place of Origin:
-
Hubei, China
-
Product name:
-
LPG Tanker Truck
-
Tank material:
-
Q345 Carbon Steel
-
Horse power:
-
120HP/140HP/160HP/170HP/190HP/210HP
-
Driving type:
-
LHD/RHD
-
Emission standard:
-
Euro2/3/4
-
Volume:
-
11-51 CBM
-
Tire:
-
12R22.5
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.Shacman
-
Medium:
-
Lpg Liquified Petroleum Propane Delivery Trucks

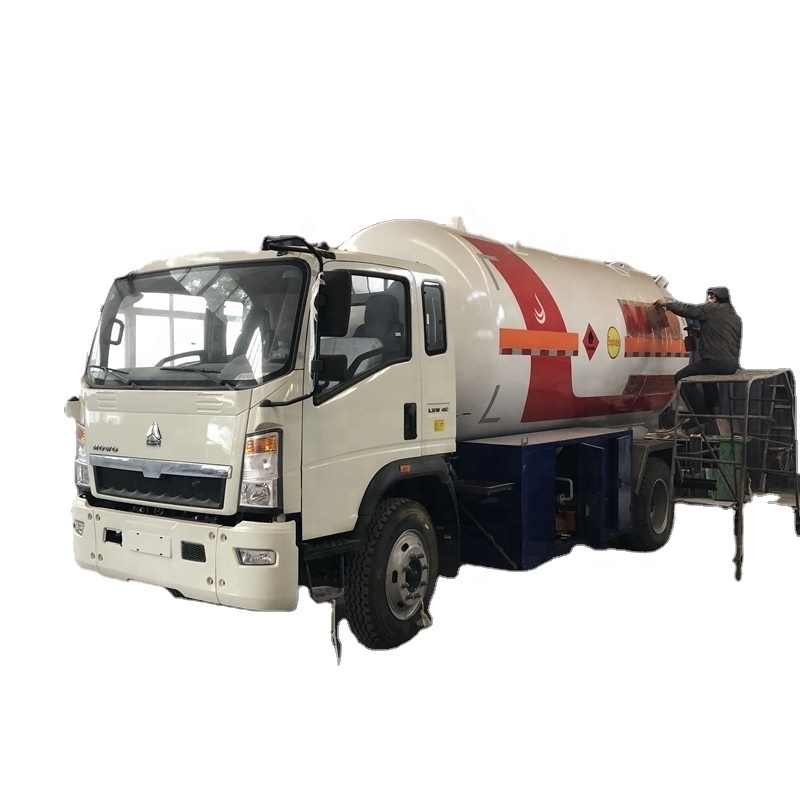

Sinotruk HOWO 4*2 5T 10T LPG delivery tanker truck cooking gas bobtail LPG truck for sale
The lpg gas tank truck is also called lpg road tanker truck, lpg transportation truck, lpg tanker truck, bulk lpg truck, bobtail, etc. The lpg gas tank truck consists of truck chassis, lpg tank, thermometer, pressure gage, safety valve, pipeline systems, etc.
The lpg gas tank truck is mainly used to transport lpg gas. It also can be used as a mobile gas station after equipped gas dispenser, lpg gas pump, etc.
The lpg tank of lpg trucks are made of Q345R or Q370R, one high quality steel produced by Chinese famous steel manufacturer ---WUGANG. The Q345R is instead of 16 Manganese. It is special material for LPG gas tank.
Tank features:
2) Tank Volume: 3m3, 5m3, 8m3, 10m3, 12m3, 15m3, 18m3/ 3000L, 5000L, 8000L, 10000L, 12000L, 15000L, 18000L etc.
3) Truck engine brand: Weichai Yuchai Yunnei for option
4) Main parts installed on lpg bobtail: blackmer/corken pump, cylinder filling gun, dispenser filling weight scale, flow meter, Pressure Gauge, Level Gauge etc.
Technical paremeter for LPG tank truck
|
Cabin |
Driving type 4x2 LHD |
|
|
2080 cab ,with two seats and one sleeper, with A/C, with wind deflector. |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
7995×2500×2650 |
|
Wheel base (mm) |
4500 |
|
|
Wheel track (front/rear) (mm) |
1805/1795 |
|
|
Approach/Departure angle(°) |
18/18 |
|
|
Weight in KGS |
Tare Weight |
5060 |
|
payload |
8000 |
|
|
Front axles loading capacity |
2700 |
|
|
Rear axles loading capacity |
7200 |
|
|
Max. driving speed ( km/h ) |
95 |
|
|
Engine |
Brand |
Commins |
|
Model |
ISF3.8 |
|
|
Horse Power(HP) |
154hp |
|
|
Emission standard |
Euro Ⅱ |
|
|
Gearbox |
WLY6T53, 6 forwards & 1 reverse |
|
|
Steering |
Left hand drive |
|
|
Tire |
8.25R16 radial steel tires with one spare |
|
|
Fuel tank |
120L |
|
|
TANK BODY |
||
|
Capacity |
10,000 liters |
|
|
Dimensions |
5260*1840*2210mm |
|
|
Thickness |
10mm, corrosion allowance:1mm |
|
|
Material |
Carbon Steel Q345R |
|
|
Design pressure |
1.77MPa ( 256.65 Psi) |
|
|
Filling medium |
Liquefied Petroleum Gas |
|
|
Accessories |
Safety valve, liquid indicator, pressure gauge, thermometer, fire extinguishers, bumpers |
|
Detailed Images
LPG tank production flow
lpg tank truck can be shipped by bulk,ro-ro, or containers
