Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TSD
-
Resolution:
-
800x480
-
Outline Dimension:
-
164.9x100x5.7mm
-
Active Area:
-
154.08x85.92mm
-
Interface Type:
-
RGB 24bits
-
Backlight:
-
27LEDs, 180mA, 9.3V
-
Brightness:
-
400Cd/m2
-
Viewing direction:
-
12 O'clock
-
Color:
-
16.7M
-
Operating Temperature:
-
-20~+70 degree
Quick Details
-
Type:
-
TFT
-
Display Size:
-
7.0inch
-
Supplier Type:
-
manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TSD
-
Resolution:
-
800x480
-
Outline Dimension:
-
164.9x100x5.7mm
-
Active Area:
-
154.08x85.92mm
-
Interface Type:
-
RGB 24bits
-
Backlight:
-
27LEDs, 180mA, 9.3V
-
Brightness:
-
400Cd/m2
-
Viewing direction:
-
12 O'clock
-
Color:
-
16.7M
-
Operating Temperature:
-
-20~+70 degree

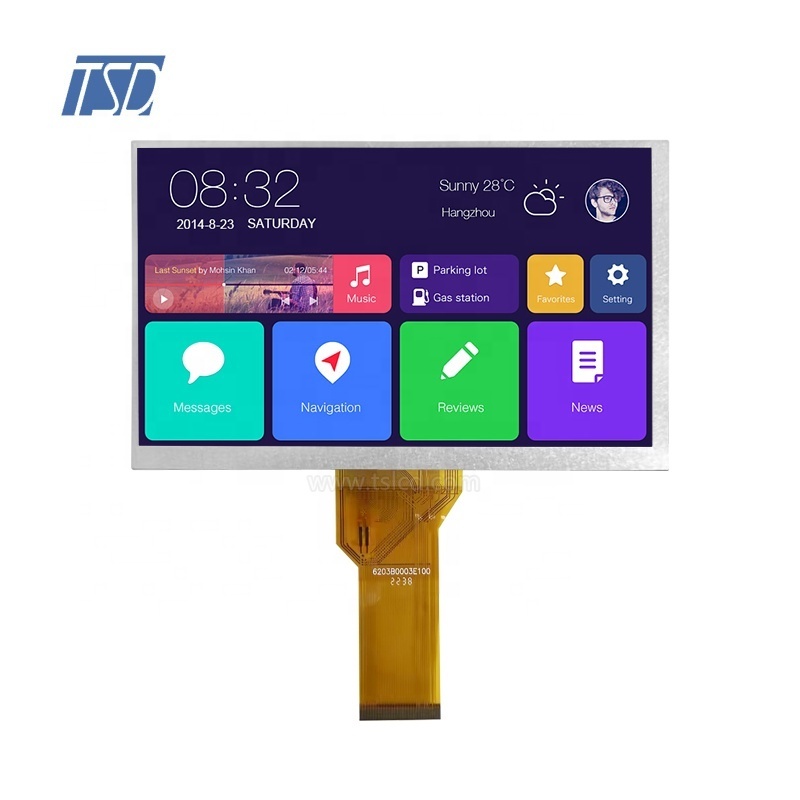

Elevator display 7'' lcd screen 800x480 RGB 50pin interface 7.0 inch tft display module
Products Description
|
Item
|
Specification
|
|
Display Mode
|
7.0''/α-Si TFT/TN/
Transmissive/Normally White
|
|
Part NO.
|
TST070TN94
|
|
Resolution
|
800x480
|
|
Outline Size
|
164.90x100x5.7mm
|
|
Active Area
|
154.08x85.92mm
|
|
View Direction
|
12l O'clock
|
|
Color Depth
|
16.7M
|
|
Interface
|
RGB 24bits 50pin
|
|
Backlight
|
27LEDs, 180mA, 9.3V
|
|
Surface Lumiannce
|
400nits
|
|
Surface Treatment
|
Anti-glare
|
|
Operating Voltage
|
3.3V
|
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
What TSD has?
1)TFT:
0.96''-32''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.
0.96''-32''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.
2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.
3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...
ILITEK, ST...
4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Control graphics and RTP and CTP and audio etc...
About us
Production Process
Application
Exhibition & Certificate
Packing & Delivery
FAQ
Q: How can i find the right product?
A : Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost → Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
A : Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost → Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
