Android motherboard mainboard driver controller control board for dual screen monitor tablet vending machine

For more information and better price please contact us:

Whatsapp Tel We-chat: +86 18682001573

Email: mariah @yf-meta.com

Product Name:

All-in-one Android OS 11 Linux Debian 10 RJ45 Blue-tooth RS232 TTL IIC-Touch Screen panel Android Embedded Motherboard Mainboard Driver Board Controller Board PCBA for Digital-signage Smart Home Advertising Advertisment Machine Self-service Terminal Machine.

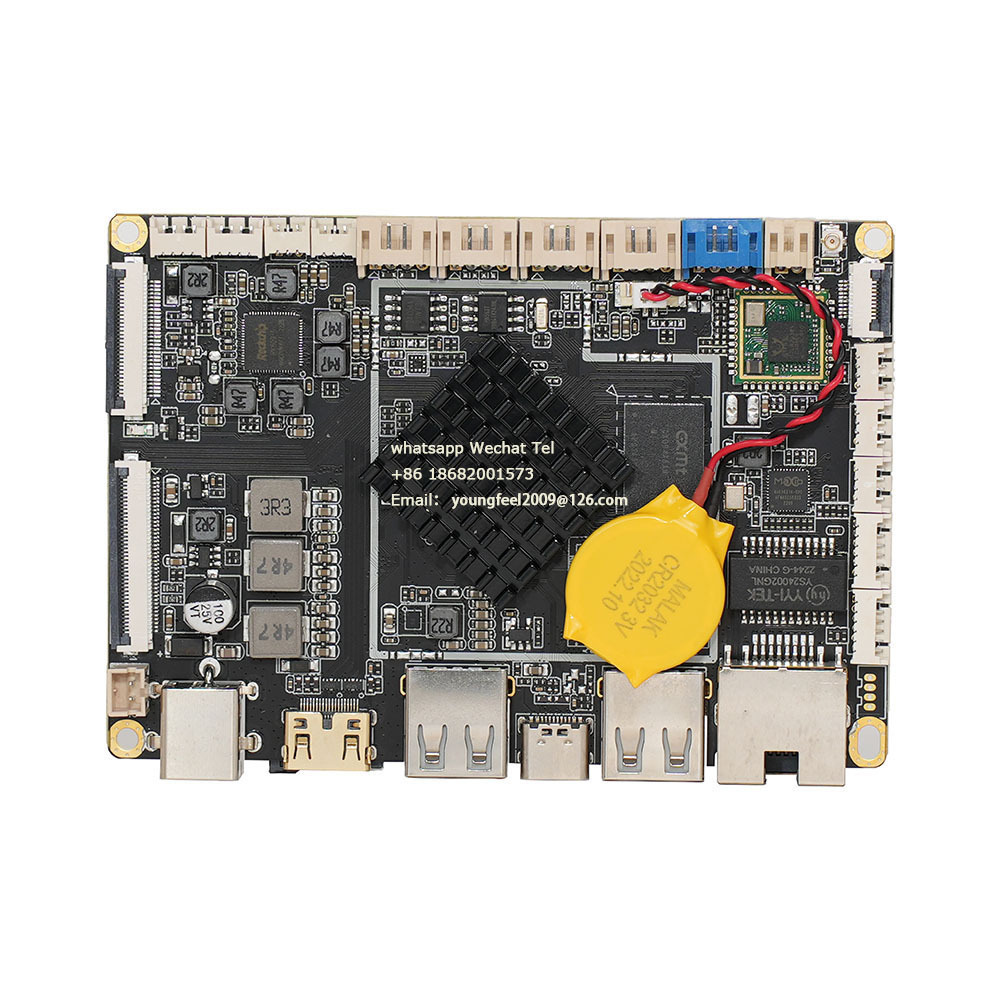

Rockchip RK3568 Android Embedded Motherboard with 2MIPI & 1 eDP Supporting One Board Driving 3LCD Panels with Different Display

Android motherboard mainboard driver controller control board for dual screen monitor tablet vending machine

Item No.: YF-011E

General Product Description

1.1: General Product Description

The YF-011E board uses Rockchip RK3568 high-performance, low-power quad-core application processor, equipped with Android11.0 system, with a main frequency of up to 2.0GHz.  The embedded 3D GPU makes RK3568 fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1.  The special 2D hardware engine will maximize display performance and provide very smooth operation.  The built-in NPU supports 1.0T, supports almost all formats of H.264 decoder 4K@60fps, H.265 decoder 4K@60fps, also supports H.264/H.265 encoder 1080p@60fps, high-quality JPEG encoder/decoder  .  .  Integrating multiple LCD drivers, Ethernet, and dual-band WIFI/BT power amplifiers into one, it supports decoding of most popular video and picture formats. eDP/dual MIPI supports 2K-level output and is compatible with driving various TFT LCD displays, simplifying the entire  machine system design.

1.2: Key Features

High integration level.  Integrated USB/eDP/Gigabit Ethernet/dual-band WIFI/BT/eDP/TF card expansion/microphone and other functions simplify the overall machine design and make the overall machine design more beautiful.

High definition.  Supports 1080P/H.265 (4K2K) video decoding and various Edp/MIPI*2 signal LCD displays.

Comes with built-in power amplifier.  Supports dual-channel 8R/3W power amplifier.

Rich interfaces.  Supports USB/serial/GPIO/ADC interface expansion and can meet mainstream peripherals on the market.

Full-featured.  Supports horizontal and vertical screen playback, video split-screen, rolling subtitles, timer switch, USB data import and other functions.

Convenient management: Humanized playlist creation software facilitates advertising playback management and control.  Playback log makes it easy to understand the playback status.

Three-screen differential display function MIPI*2/EDP

Suitable for scenes: hospitals/conference rooms/government signs

Hardware Specification

• Mini Order Qantity: 1pieces
• Ready for ship goods
• OEM ODM on android motherboard hardware and software based on Rockchip, Allwinner, Mstar
• Quality Guarantee:1 year
• After Sale Service: Response within 5 minutes

Android Development Motherboard SKD Samples

Android Development Motherboard Round LCD solutions

Solutions for Commmercial Android Tablet with Strip Light

Android development motherboard Solutions for Smart Cashier POS machine (one board driving two LCD screen with same or different display)

Android development motherboard Solutions for Strip LCD panels (Used for Hospital, Subway, high-speed train, goods Display Rack, Digital-Signage Display

Android development motherboard Solutions for KIOSK, Self-service Terminal, POS machine, HMI, Smart Home, Etc (Used for Supermarket, Elevator, Hospital, Government affairs, Digital-signage Display)

Android development motherboard Solutions Applications Field

Where is YF located?

Gushu, Bao'an District, Shenzhen. no more than15 minutes from ShenZhen International Airport by subway.

What Service does YF provides?

R&D, production and sales as one. Provides solutions for Android platform software and hardware, Android operating system layer software consulting and custom development and OEM, ODM, and other related services.

What platform solutions YF provided?

• Rockchip: RK3566, RK3568, RK3588, RK3288,RK3399
• ALL Winner: A64
• Mstar: V56 V53

What kind of panel YF android motherboards can drive?

What serial ports does these android motherboard have?

• TTL
• RS232
• GPIO

Do these android boards support multi-panel same or different display?

yes,

• RK3568 support three panel different/same display(one board drives 3panels at the same time)
• RK3288 RK3399, RK3568 Support dual-panel different/same display. (one board drives 2panels at the same time)

What is the applications of all the boards used for?

• Smart-home
• Smart-Door bell
• Digital signage
• Kiosk
• self-service equipment (medical terminal equipment, tax terminal equipment, self-service vending machines, etc.),
• smart cash register equipment,
• face recognition equipment,
• education all-in-one machine,
• live broadcast equipment,
• Human Interactive Machine

What is the most popular items amoung YF available clients?
