- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12E / LB16B / LB19E / LB22C
-
Product name:
-
LB12E / LB16B / LB19E / LB22C
-
Product type:
-

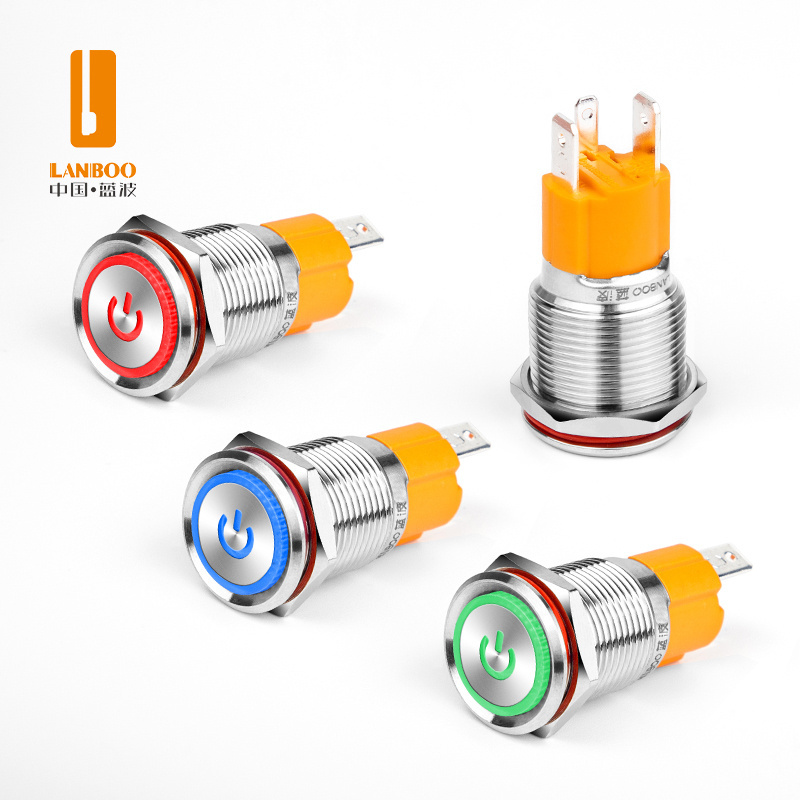

Metal High Current Push Button Switch
-
Operation type:
-
Self-locking / Self-resetting
-
Mounting Hole Size:
-
12mm / 16mm / 19mm / 22mm
-
Button color:
-
stainless steel/copper chrome/aluminum oxide/titanium
-
Head shape:
-
Flat Head / High Head
-
LED color:
-
Red / Green / Blue / Yellow / White
-
LED Voltage:
-
3V/6V/12V/24V/36V/110V/220V/250V
-
Mechanical Life:
-
300000 Cycles
-
Electrical Life:
-
10000times
-
Certification:
-
CCC CE ROHS ISO9001
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
10A/20A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12E / LB16B / LB19E / LB22C
-
Product name:
-
LB12E / LB16B / LB19E / LB22C
-
Product type:
-
Metal High Current Push Button Switch
-
Operation type:
-
Self-locking / Self-resetting
-
Mounting Hole Size:
-
12mm / 16mm / 19mm / 22mm
-
Button color:
-
stainless steel/copper chrome/aluminum oxide/titanium
-
Head shape:
-
Flat Head / High Head
-
LED color:
-
Red / Green / Blue / Yellow / White
-
LED Voltage:
-
3V/6V/12V/24V/36V/110V/220V/250V
-
Mechanical Life:
-
300000 Cycles
-
Electrical Life:
-
10000times
-
Certification:
-
CCC CE ROHS ISO9001
| Mounting Aperture | 12/16/19/22mm |
| Serial Number | LB12E/16B/19E/22C Safety High Current Series Switch |
| Head shape | Flat Head / High Head (custom) |
| Switch combination | Self-locking (default) / Self-recovering (custom) |
| Action form |
12E/19E: 1NO-Normally Open Contact, Slow Acting Double Contact 16B: 1NO-Normally Open Contact, Slow Single Contact 22C: 2 NO-Normally Open Contact, Slow Acting Double Contact |
| Waterproof level | Customized IP67, Anti-collision IK10 (refer to GB/T 20138) |
| Heating current |
12E-Ith: 10A, 250VAC 16B- Ith: 15A, 250VAC 19E/22C-Ith: 20A, 250VAC |
| Working environment | -40°C~+80°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage |
12E/19E: 5-24V,220V / Customized: 25-48V,110V 16B/22C: 9-24V, 220V / Customized: 3-8V, 25-48V,110V |
| Rated curren |
12E: AC-12: 220V:7A, DC-13: 12V/24V:7A 16B: AC-15: 110V/220V:10A, DC-13: 12V/24V:10A 19E: AC-15: 110V/220V:16A, DC-13: 12V/24V:16A 22C: AC-15: 110V/220V/250V:15A, DC-13: 12V/24V:15A |
| Inductive load |
12E: AC-12: 110V/220V:3A, DC-13: 12V/24V:3A 16B: AC-15: 110V/220V:3A, DC-13: 110V:3A 19E: AC-15: 110V/220V:4A, DC-13: 110V:4A 22C: AC-15: 110V/220V/250V:4A, DC-13: 110V:4A |
| Glowing shape | Ring/Ring+Power Symbol / Customized: Custom Pattern Symbol |
| Glow color | Red, Green, Blue / Customized: Yellow, White |
