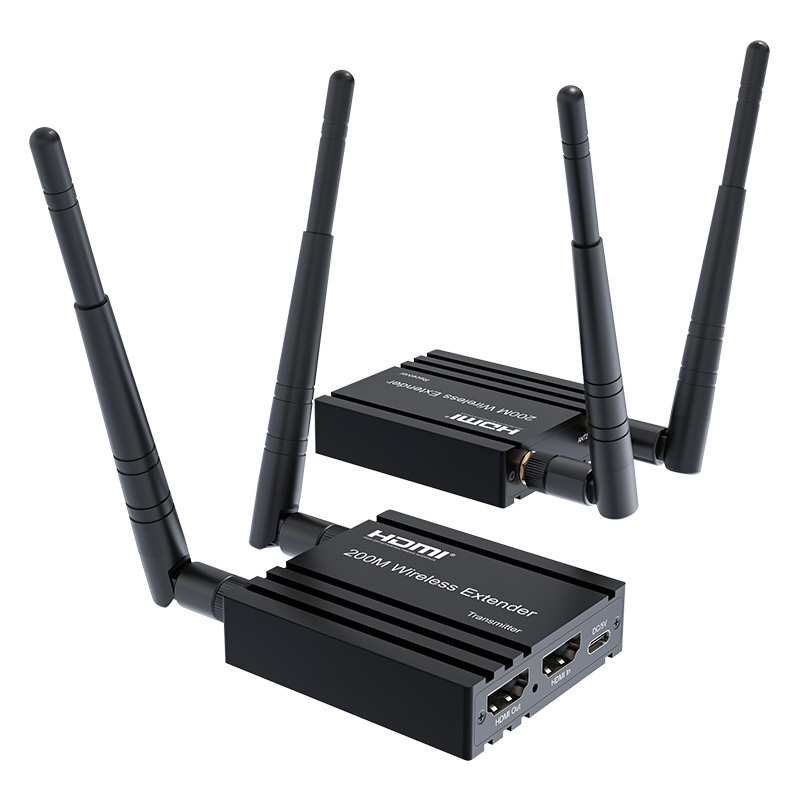

200M HD Wireless Extender Essential Audio & Video Accessories for Seamless Audio & Video Transmission

200M HD Wireless Extender Essential Audio & Video Accessories for Seamless Audio & Video Transmission

FOB Reference Price: Get Latest Price

≥2 Pieces

US $100

≥50 Pieces

US $80

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: 200M HD Wireless Extender

Color:: Black

Material:: metal-back

Dimension (L x W x H):: 80x63x16 (mm)

Weight:: 123gx2

Quick Details

Brand Name:: OEM

Model Number:: 200M

Place of Origin:: Guangdong, China

Product name:: 200M HD Wireless Extender

Color:: Black

Material:: metal-back

Dimension (L x W x H):: 80x63x16 (mm)

Weight:: 123gx2

Product Description

Product Name	200 meters wireless extender
Material	ironclad
Function	200m HDMI wireless extender 200 m wireless transmission One-to-one transmission
Package	box

Product performance description
This HDMI Wireless extender uses 2.4G and 5G modules to enable high-speed, high
performance wireless communication among consumer electronics, computer and mobile
devices.
It combines high bandwidth capacity and strong error correction capability, to transmit
HD video. It transmit the signal up to 200m in the open area,also go through the wall.

* Support HDCP1.3;
* Support one to one and one to four transmission modes；
* Support the highest rate 1.485G and TMDS clock up to 148.5Mhz;
* Working in 2.4G/5G frequency band,not easy disturbed to wireless signals;
* The longest distance can be 200m when open space without any barriers, normal go
through the wall up to 40 meters.
F

Product Usage

Title goes here.

- Product usage introduction

产品使用方式介绍

1. Connect the HD source to the input of the wireless extender TX with 1 HDMI cable；2: Connect the output of the wireless extender RX to the display device with 1 HDMI cable；3: Charging the TX and RX with Type-c USB cable

Description of product use effect
Wireless extender transmitter and receiver have been matched in the factory.If the users need to match again, Please follow the steps:1) Charging the transmitter and receiver.2) After connecting the receiver to the display device, long press the code button at the receiver for (5 seconds) to display 'Release the button to pair with Transmitter', and release the code button at the receiver to enter the code mode 'Ready to pair'. At this time, long press the code button of the transimitter to display 'Pairing', and release the button of the transimitter to end the whole pairing process. After pairing, the connection displayed on the screen changes from '' X to √ '', indicating that the connection is successful.
