Quick Details
-
Billet Diameter:
-
4.7~5.5 inch
-
Max Size of Aluminum Profile:
-
W:200 H:130 mm
-
Sawing Range:
-
550 mm
-
Sawing Power:
-
3 KW
-
Pulling Speed:
-
0~0.8 M/S
-
Pulling Force:
-
30~200 Kg/Nm
-
Roller Center from the Wall:
-
1650mm
-
The Fan Height:
-
1800 mm
-
Weight:
-
12.5T
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUEHANG
-
Puller Model:
-
1250T
-
Billet Diameter:
-
4.7~5.5 inch
-
Max Size of Aluminum Profile:
-
W:200 H:130 mm
-
Sawing Range:
-
550 mm
-
Sawing Power:
-
3 KW
-
Pulling Speed:
-
0~0.8 M/S
-
Pulling Force:
-
30~200 Kg/Nm
-
Roller Center from the Wall:
-
1650mm
-
The Fan Height:
-
1800 mm
-
Weight:
-
12.5T
Product description

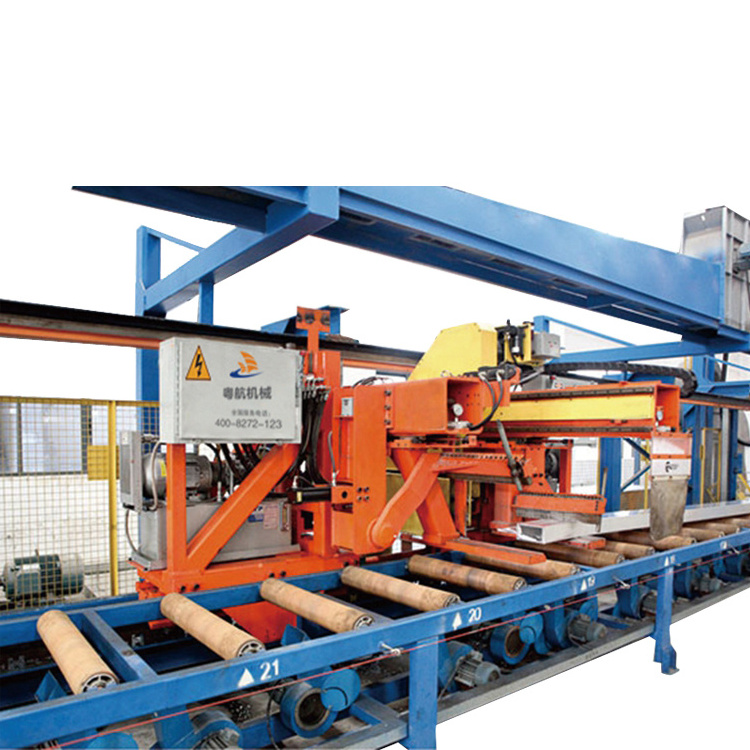

Factory price used aluminium extrusion puller machine manufacturers
| Puller Model | 1250T | 1450T | 1650T | 1800T | 2000T | 2500T |
| Billet Diameter | 4.7~5.5 inch | 6 inch | 7 inch | 7 inch | 8 inch | 9.6 inch |
| ø120~ø140 | ø152 | ø178 | ø178 | ø203 | ø245 | |
| Max Size of Aluminum Profile | W:200 ×H:130 mm |
W:250 ×H:160 mm |
W:250 ×H:180 mm | W:250 ×H:180 mm | W:300 ×H:200 mm | W:350 ×H:245 mm |
| Diameter of Saw Blade | ø455 | ø500 | ø500 | ø550 | ø600 | ø700 |
| Sawing Range | 550 mm | 650 mm | 650 mm | 700 mm | 700 mm | 800 mm |
| Sawing Power | 3 KW | 4 KW | 4 KW | 5.5 KW | 5.5 KW | 11 KW |
| Pulling Speed | 0~0.8 M/S | 0~0.6 M/S | 0~0.6 M/S | 0~0.6 M/S | 0~0.6 M/S | 0~0.5 M/S |
| Pulling Force |
30~200 Kg/Nm |
30~200 Kg/Nm | 30~200 Kg/Nm | 30~300 Kg/Nm | 30~300 Kg/Nm | 30~400 Kg/Nm |
| Roller Center from the Wall | 1650 mm | 1700 mm | 1700 mm | 1700 mm | 2200 mm | 2600 mm |
| Center Height | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| The Fan Height | 1800 mm | 2000 mm | 2000 mm | 2000 mm | 2000 mm | 1800 mm |
| Weight | 12.5 T | 14 T | 14 T | 14 T | 17.5 T | 22 T |
