Quick Details
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
woodworking
-
Weight (KG):
-
750 KG
-
Power (kW):
-
6.25KW
-
Max.Cutting Height at 90°(mm):
-
75mm
-
Max.Cutting Height at 45°(mm):
-
50mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Name:
-
Precision Sliding Table Saw
-
Product name:
-
45 Degree Electric Lifting
-
Keyword:
-
Multi Blade Sawmill
-
Model:
-
MJA-6132
-
Blade Size:
-
300X30MM
-
Motor Power:
-
5.5kw/7.5kw
-
Service:
-
Guarantee
-
Tilting saw blade:
-
0-45 Degree
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongQinag Weiye
-
Usage:
-
Wood Cutting
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
woodworking
-
Weight (KG):
-
750 KG
-
Power (kW):
-
6.25KW
-
Max.Cutting Height at 90°(mm):
-
75mm
-
Max.Cutting Height at 45°(mm):
-
50mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Name:
-
Precision Sliding Table Saw
-
Product name:
-
45 Degree Electric Lifting
-
Keyword:
-
Multi Blade Sawmill
-
Model:
-
MJA-6132
-
Blade Size:
-
300X30MM
-
Motor Power:
-
5.5kw/7.5kw
-
Service:
-
Guarantee
-
Tilting saw blade:
-
0-45 Degree
Product Overview

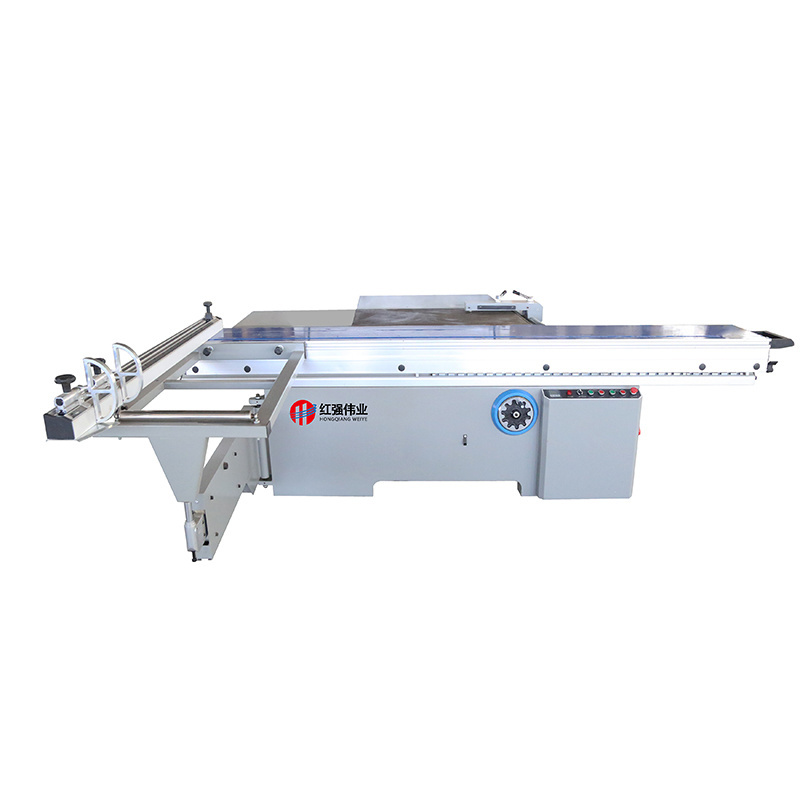

MJA-6132
Wood Cutting Panel Sliding Table Saw Machine
The precision panel saw are used for all kinds of MDF, Chipboard, Man-made board, ABS board, PVC board, Organic glass sheet, solid
wood and wood with similar hardness.
wood and wood with similar hardness.
* Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
* Import columnar guide rail assembled with sliding table ,higher precision and longer service life.
* The working table surface is oxdation treated, beautiful and hardwearing.
* Best sliding table saw with 0-45 degree tilting.
* Import columnar guide rail assembled with sliding table ,higher precision and longer service life.
* The working table surface is oxdation treated, beautiful and hardwearing.
* Best sliding table saw with 0-45 degree tilting.
MJA-6132 Europe Table style
Sliding table length 3200mm, 45 and 90 degree
Details Images
Technical Parameter
|
Max length panle cut
|
3200/ 3800 x 375 mm
|
|
Max height panel cut
|
75 mm
|
|
Max height panel cut at 45 degree
|
50 mm
|
|
Tilting angle saw blade
|
0 -45
|
|
Diameter of main saw blade
|
300 mm
|
|
Diameter Scoring saw blade
|
120 mm
|
|
Speed of Scoring saw blade
|
6000 / 8000 rpm
|
|
Speed of main saw blade
|
4500 / 600 rpm
|
|
Spindle Diameter
|
30 mm
|
|
Spindle Diameter of Scoring saw blade
|
20 mm
|
|
Main motor
|
5.5 kw
|
|
Scoring motor
|
0.75/1.1 kw
|
|
Voltage
|
380- 220-400V \ 60hz-50hz \ 3-1 phase
|
|
Body Packing
|
2150 * 1100 * 1100
|
|
Table Packing
|
3050/3250/3850/ * 420 * 280
|
Model Functions
|
Available Function
|
6128G
|
MJ6130A
|
MJ6130GT
|
MJ6132C
|
MJA6132
|
MJ6132TD-E
|
|
3.2 m
|
|
✓
|
✓
|
✓
|
✓
|
✓
|
|
3.8 m
|
|
✓
|
|
✓
|
✓
|
✓
|
|
Motor Power kw
|
4*0.75
|
5.5*0.75
|
4.0*0.75
|
5.5*0.75
|
5.5*0.75
|
5.5*1.1
|
|
45 degree
|
|
|
✓
|
✓
|
✓
|
✓
|
|
Main saw angle tilting digtal display
|
|
|
|
✓
|
✓
|
✓
|
|
Europe table style
|
|
|
|
✓
|
✓
|
✓
|
|
Main saw angle tilting
|
Manual
|
Manual
|
Manual
|
Manual
|
Manual
|
Auto
|
|
Main saw up and down
|
Manual
|
Manual
|
Manual
|
Manual
|
Auto
|
Auto
|
Exhibition
Certifications
Product packaging
Our Services
1. Provide the free consultation of the equipment
2. Provide the standard device and the flow chart
3. According to the clients’ special requirement, we offer the reasonable plan and free design helping to select the equipment.
4. Welcome to visit our factory
Services during the sales
1. Inspect the machine before leaving the factory.
2. Oversea install and debug the equipment.
3. Train the first-line operator.
After sale services
1. 24 hours online service
2. Provide the VIDEO with Install and debug the equipment
3. Provide technical exchanging
