Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2600*1980*2050MM
-
Sheet Thickness (mm):
-
1.0mm
-
Production Capacity:
-
1-38M/MIN
-
Type:
-
Galvanized Spiral duct making machine
-
Thickness:
-
0.4-1.2mm
-
Diameter:
-
80-1500mm
-
Control system::
-
Touch screen, PLC,
-
Cutting system::
-
saw/shear/plasm cutting
-
Lock seam::
-
interlock, inside or outside
-
Forming mould::
-
steel strip, fixed mould
-
Drive system::
-
Hydrualic + Motorised
-
Oversea market:
-
Australia , Brazil, Russia, Japan , Hungary , Pakistan
Quick Details
-
Brand Name:
-
SBJX
-
Condition:
-
new
-
Weight:
-
1900 kg
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2600*1980*2050MM
-
Sheet Thickness (mm):
-
1.0mm
-
Production Capacity:
-
1-38M/MIN
-
Type:
-
Galvanized Spiral duct making machine
-
Thickness:
-
0.4-1.2mm
-
Diameter:
-
80-1500mm
-
Control system::
-
Touch screen, PLC,
-
Cutting system::
-
saw/shear/plasm cutting
-
Lock seam::
-
interlock, inside or outside
-
Forming mould::
-
steel strip, fixed mould
-
Drive system::
-
Hydrualic + Motorised
-
Oversea market:
-
Australia , Brazil, Russia, Japan , Hungary , Pakistan

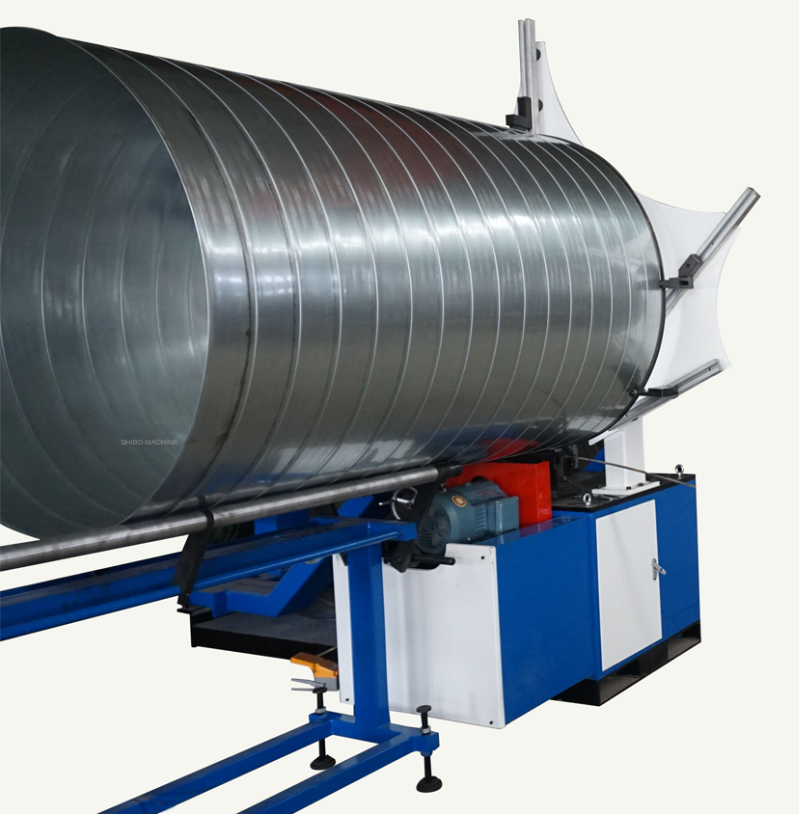

HVAC spiral duct making machine /HVAC duct pipe former machine
Main features of Spiral round tube forming machine air duct spiro machine
1.1 Varous diameter for optional choice
1.2 Large diameter range
1.3 High speed synch flying cutting system.
1.4 Japanese electrical parts
1.5 Light and small, suitable for site work.
|
Main technical data---- Galvanized Spiral duct making machine |
|
|
Diameter Range |
80-1500mm |
|
Maximum Tube Length |
Unlimited mm |
|
Thickness of Strip |
0.4-1.0mm |
|
Width of Strip |
137-mm |
|
Strip Speed |
1-40m/min |
|
Suitable Material |
Aluminum, Stainless steel, Galvanized steel,etc |
|
Dimension (L x W x H) |
2600mm*1980mm*2050mm |
|
Weight |
1800kg |
|
Main Motor Power |
5.5kW |
|
Cutting Motor Power |
4kW |
