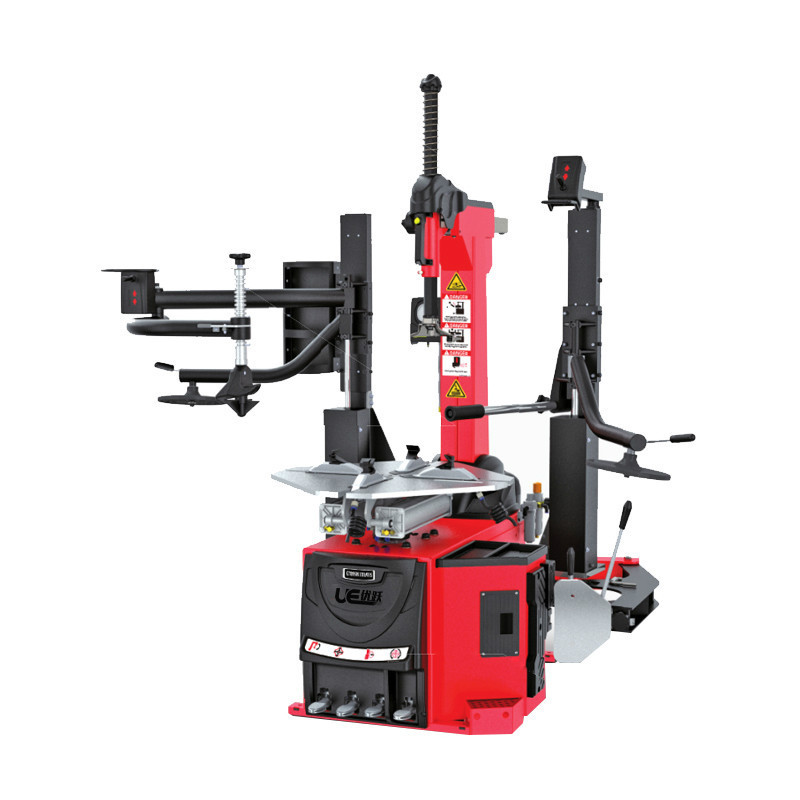

UE-GT895N Full automatic tyre Changer automatic side swing arm with help arm

Description

The third generation of 895, exceeds itself once again. Meeting the higher standards in every aspects to ensure bringing the improvement performances and luxurious experience in mounting and demounting .Positive exploring the development
of global large-sized tire. Improvement and exceeded again and again, fearless

and outstanding. The large box body with the double assist arms show its solid.

Highlights

Demounting head is made of special material, lifetime warranty, the 41mm diameter hex bar can deal with all kinds of tyres.

The shape of bead breaker disc is arc shape, movable back and forth, left and right, so it can better release the bead breaker disc force during working , equipped with protective cover. Two shift of bead breaker arm can be adjusted to fit wider wheels.

Adopted special parkerising technique cylinder, avoid the cylinder rust , increasing service life.

The Italian-design pedal assembly has ergonomic structure, sealing performance is stable, appearance updated, unified brand image.

Standardly equipped with lock air cylinder, to prevent minor movement of the horizontal shaft.

Double-bending column is made of steel plate with 5mm thickness, high strength.

Standardly equipped with 80mm diameter small cylinder in working table , the clamping force increases to 58kg .The rim can be held firmly and assure no rim damage due to claw’s slippery. Standardly equipped with spacer and scale, which meets the CE requirement and protects the operator.

Adopted tilted back structure , tilted back and forth are driven and locked by pneumatic control.

Standardly equipped with two assist arms, it is easy to mount and demount RSC tyres , run-flat tyres and oversized tyres.

There is blast inflation function, air tank is approved by CE.
Optional equipped with SR68, it can help to lift tyres and labor-saving. Optional equipped with AL320 assist arm.
