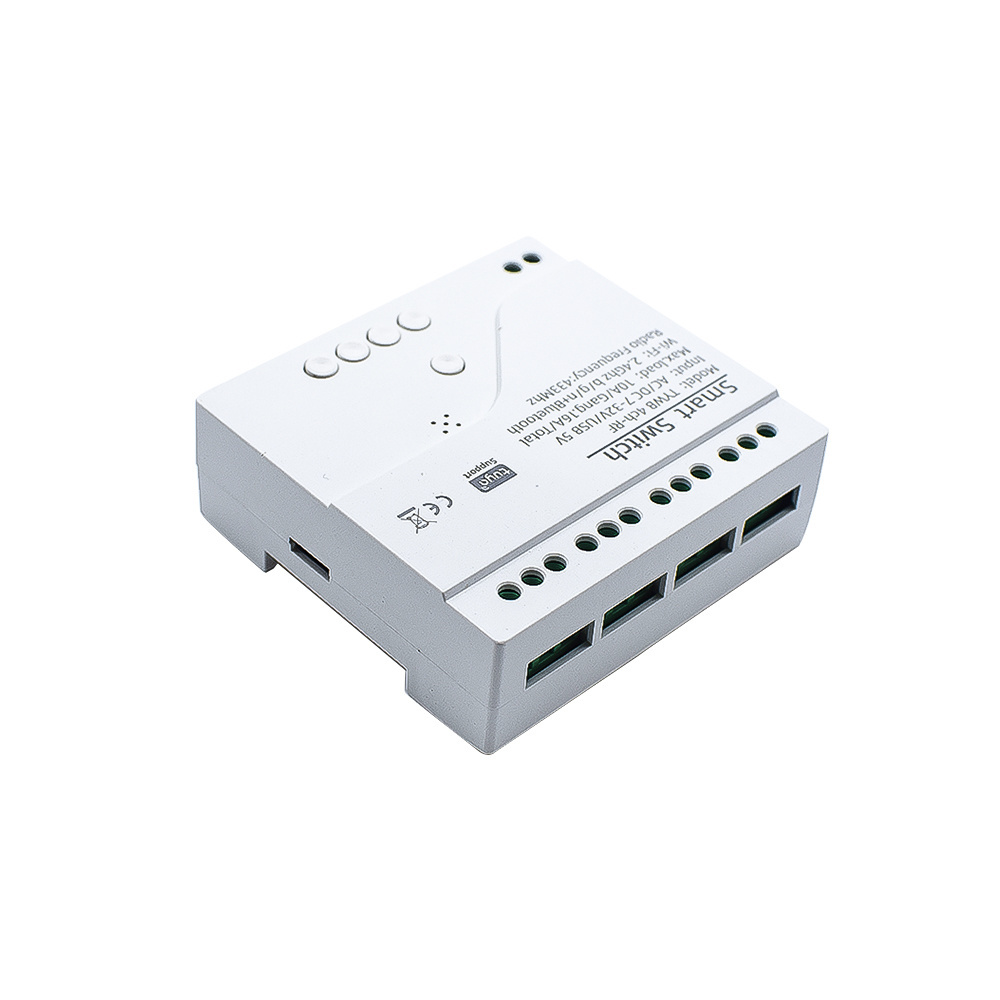

4CH RF Smart Switch 12V 24V 7-32V AC DC WIFI Tuya Remote Control 433 Light Switch 10A Rele Relay Self-locking interlock inching

4CH RF Smart Switch 12V 24V 7-32V AC DC WIFI Tuya Remote Control 433 Light Switch 10A Rele Relay Self-locking interlock inching

FOB Reference Price: Get Latest Price

≥10 Pieces

US $8

≥100 Pieces

US $7.5

≥1000 Pieces

US $6.5

≥10000 Pieces

US $5.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: MU

Model Number:: MU-E0803 4CH 7-32V

Operating Temperature:: -20 degrees to +70 degrees

Scale:: Smart Switch

Control Channels:: 4 Channels

Max Speed:: Wireless Light Switch

Frequency:: 2.4Ghz

Name:: Smart module RF Switch

APP:: Smart Life / Tuya

Input voltage:: USB 5V,AC/DC 7V-32V

Operating Humidity:: 40% ~ 80% RH

Feature 1:: Work with Alexa

Feature 2:: Work with Google home

Certification:: CE ROHS

Quick Details

Max. Current:: 2200W/10A.

Max. Voltage:: DC 7-32V

Network:: WIFI

Place of Origin:: Guangdong, China

Brand Name:: MU

Model Number:: MU-E0803 4CH 7-32V

Operating Temperature:: -20 degrees to +70 degrees

Scale:: Smart Switch

Control Channels:: 4 Channels

Max Speed:: Wireless Light Switch

Frequency:: 2.4Ghz

Name:: Smart module RF Switch

APP:: Smart Life / Tuya

Input voltage:: USB 5V,AC/DC 7V-32V

Operating Humidity:: 40% ~ 80% RH

Feature 1:: Work with Alexa

Feature 2:: Work with Google home

Certification:: CE ROHS

Product Description

Name	Tuya Smart Switch WiFi DIY Timer 7-32V 4CH RF Voice Control Smart Home Automation Module Works with Alexa Google Home
Wi-Fi	2.4Ghz b/g/n+ Bluetooth
Compatible 1	Amazon Alexa
Compatible 2	Google Home
Support App	Tuya or Smart Life

DIY Smart Switch, enjoy smart life

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP Smart life in order to remotely control connected home appliances or devices.
In self-locking mode, customers can remotely turn on/off connected devices immediately.
When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP .
WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.
RF mode , you can control the board with RF433 remote controller.

Noted :

Your have the correct wifi password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 0.5s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).

include:

1* Smart switch module 1* Manual

Body with shell

Which is working with most of mounting boxes. It is Compatible with Alexa, Google Home, but also powerful. it can be used for most of home appliances and lighting.

Relay Status Setting

Never worry about power failure, you can set this switch to restore the state after power on.

APP Control From Anywhere

You can rermote control smart device via mobile phone APP antytime and anywhere.

Family Sharing

Share the control with family member.Enjoy the convenience and happiness together

Smart Scene

Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

Group Control

Set all of your smart switches in a group by Smart Life app. Then one-click to turn/off all of your appliances or lighting by smartphone.

Timer Schedule

Create schedules to automatically turn the home appliances or lighting on/off. Helping you saving energy and electric fee.

Hands-Free Voice Control

Compatible with Alexa & Google Home,the smart switch allows you to control lights on/off with your voice

Features:

Input voltage : DC/AC 7-32V , Micro USB 5V input.

Max current : 2200W/10A.

WiFi standard : WiFi 2.4 ghz b/n/g.

The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time
in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut
off.

Details Images

Packing&Shipping

Recommend Products

Certifications

After Sales Service

Please contact us anytime if you have any problem about our products.

Company Introduction

MIXIYOU Company is located in Shenzhen and is specialized in producing and developing wireless remote controls, receiver control boards, receiver modules, photocell beam sensors and other products for automation many years.

FAQ

1. How long will delivery take? Generally takes 4-5 working days shipped by DHL, Fdex, TNT, UPS, EMS...... 2. How long for production? For small orders will be dispatched in 2 working days. For orders more than 500pcs, it will take about 5 working days, for customized or special order, will take 15-20 working days. 3. How will my order be sent? Usually for small orders will be sent with express (DHL, FEDEX, UPS, TNT......) 4.What’s your MOQ? Our MOQ is 100 pcs per model for normal orders, mixed order is acceptable. 5. What is a compatible remote? A compatible remote is an aftermarket remote not produced by the same manufacturer as the original but will be compatible with your motor. 6. How is the payment Tern? T/T, Western Union Paypal for small orders or sample orders. 7. Can I customized? Yes, you can send us details or sample, we can develop for you. 8. Are you a manufacture or supplier only? We are manufacture.
