Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Weight:
-
Customized
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Anlida
-
Model Number:
-
Anlida-Grating 2
-
Product name:
-
Customized Stainless Steel Hot-dip Galvanized Drainage Cover Grating
-
Surface treatment:
-
Hot Dipped GI,PVC coated, no treatment
-
material:
-
stainless steel, carbon steel
-
color:
-
Black, Silver, Red, etc.
-
Type:
-
welded
-
Certificate:
-
ISO9001:2005, CE
-
Bearing bar size:
-
25x3mm, 30x3mm, 40x3mm, 25x5mm, 50x5mm, etc
-
Bearing bar pitch:
-
30mm, 40mm
-
Cross bar:
-
6mm, 8mm
-
Cross bar pitch:
-
50mm, 100mm
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Return and Replacement
-
Project Solution Capability:
-
total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Weight:
-
Customized
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Anlida
-
Model Number:
-
Anlida-Grating 2
-
Product name:
-
Customized Stainless Steel Hot-dip Galvanized Drainage Cover Grating
-
Surface treatment:
-
Hot Dipped GI,PVC coated, no treatment
-
material:
-
stainless steel, carbon steel
-
color:
-
Black, Silver, Red, etc.
-
Type:
-
welded
-
Certificate:
-
ISO9001:2005, CE
-
Bearing bar size:
-
25x3mm, 30x3mm, 40x3mm, 25x5mm, 50x5mm, etc
-
Bearing bar pitch:
-
30mm, 40mm
-
Cross bar:
-
6mm, 8mm
-
Cross bar pitch:
-
50mm, 100mm

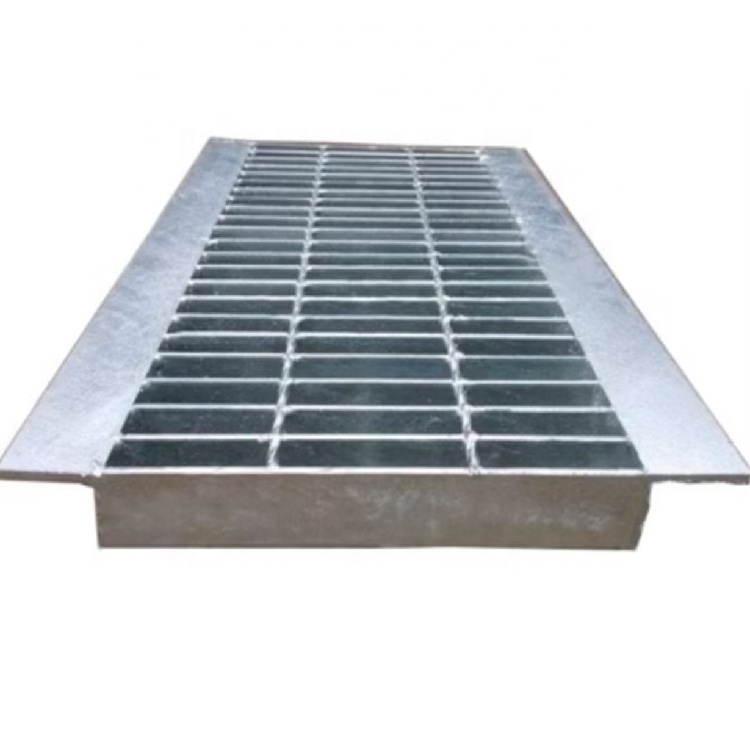

Factory Wholesale Standard Customized Stainless Steel Hot-dip Galvanized Drainage Cover Grating
Bar grating is designed to hold heavy loads with minimal weight. Bar gratings are made of bearing bars and cross bars. The bearing bar is the main load carrying bar which runs the same direction as span. The cross bars are connectors made from a strip or rolled bars which extent across or through the bearing bars. Cross bars are welded, forged or mechanically locked.
| Product Name | Steel Grating |
| Material | Mild steel, Low carbon, Iron, Stainless steel |
| Surface tratment | Hot Galvanized, S pray painting, C hemical polishing |
| Bearing (Flat) bar spacing | Center spacing commonly 30mm, 40mm |
| Corss bar spacing | Commonly 50mm, 100mm |
Specification
1. Flat bearing bar thickness: 3mm, 5mm
2. Bearing bar depth: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
3. Flat bearing bar spacing: 30mm, 40mm, 60mm,etc.
4. Cross bar size: 5x5mm, 6x6mm, 8x8mm, etc.
5. Cross bar spacing: 50mm, 100mm.
Application
1. Walkway Grating:
Also known as "hot galvanized steel grating platform walkway", the application range is very wide, the general factory, workshop, mining industry, port of all kinds of platforms can only be used, and beautiful generous, simple installation, is a new building material. Can be in the peripheral welding kick plate (fender), decorative plate protection plate, installation fittings and other accessories.
2. Bar Grating for ceiling:
Steel Grating Ceiling Indoor Offers Enough Space to Hang Light & Others, Steel grating panel as secondary ceiling increasingly apply to the indoor ceiling construction in residential and commercial applications. Adding steel grating help to install lighting system, acoustic system and fire sprinklers. The tanglesome concrete ceiling and damage was hided perfect. Offer a beautiful ceiling to people.
3. Bar Grates Stair Tread
4. Platform Steel Grating Channels
