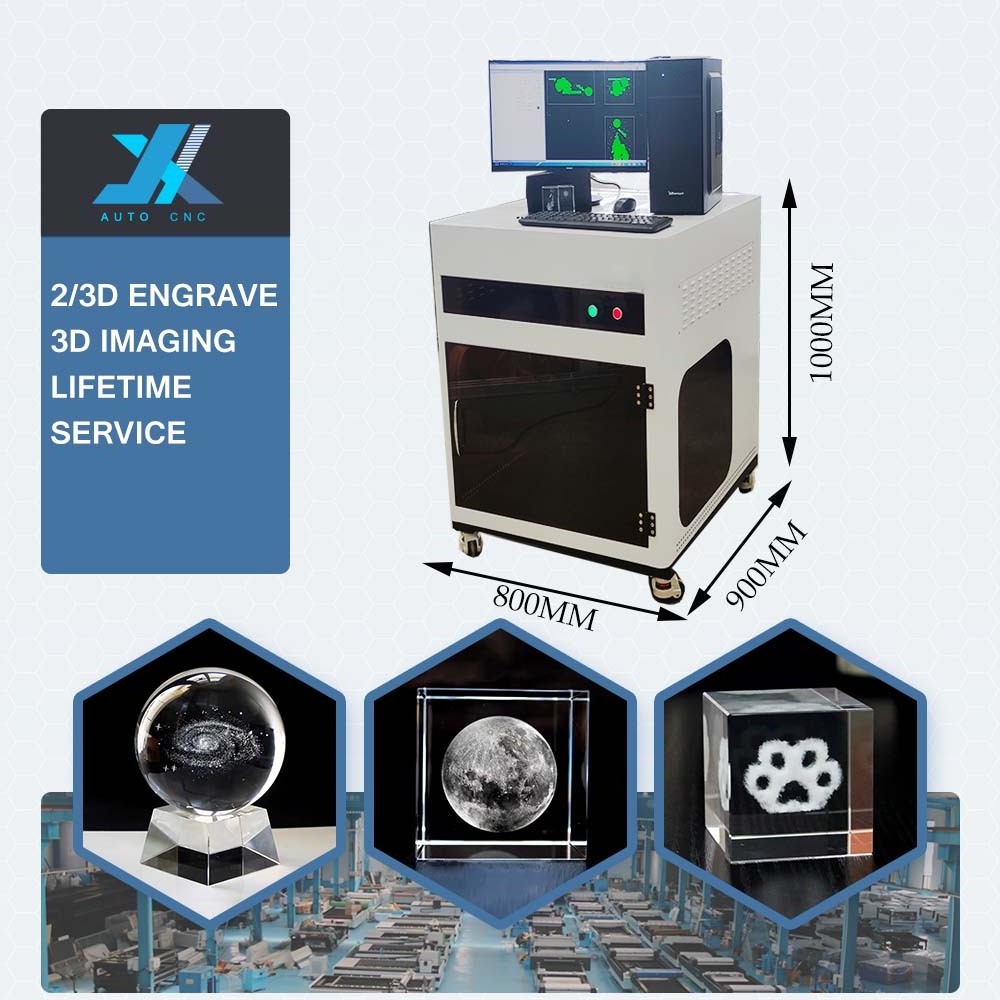

Cheap lazer printer 3D photo Crystal mini 2D 3D inner laser crystal subsurface cube photo engraving machine price for crystal

Cheap lazer printer 3D photo Crystal mini 2D 3D inner laser crystal subsurface cube photo engraving machine price for crystal

FOB Reference Price: Get Latest Price

≥1 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, DXP

Cooling Mode:: Air Cooling

Place of Origin:: Shandong, China

Brand Name:: JX AUTO CNC 3D inner laser

Dimension(L*W*H):: 900*1000*1100mm, 800*900*1000mm

Weight (KG):: 300 KG

Core Components:: 3D crystal engraver

Resolution:: 1200DPI

Lifetime:: 25000hours

beam quality:: M2<1.5

Quality:: High-quality

Power supply:: AC220V/110V 50HZ

Quick Details

Engraving Area:: 400*300mm, 400*300mm

Laser Type:: Diode

Engraving Speed:: 5000dots/s

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, DXP

Cooling Mode:: Air Cooling

Place of Origin:: Shandong, China

Brand Name:: JX AUTO CNC 3D inner laser

Dimension(L*W*H):: 900*1000*1100mm, 800*900*1000mm

Weight (KG):: 300 KG

Core Components:: 3D crystal engraver

Resolution:: 1200DPI

Lifetime:: 25000hours

beam quality:: M2<1.5

Quality:: High-quality

Power supply:: AC220V/110V 50HZ

Products Description

Feature-

1). Machine no consumables, no need to change the spare parts, just power is ok.

2). Import germany laser can working 25000 hours,whole machine can be use more then ten years. and can continue 24 hours working.

3). Free computer Free 500 design photo Free
English menu, Free training 3-5 days,Free make sample for you

4).2 years whole machine warranty, life-time maintenance service,any problem we can solve on- line by special software.

5).Large engraving area 320*400*150 , fast speed 5KHZ (5000dos/s), good for qty and large size glass engraving.

Product Paramenters

item	Blank crystal 3D inner laser engraving machine
Laser wavelength	532NM
Application material	Acrylic, Crytal, Glass, Metal
Working/ beam quality	with high speed scanner+X+Y+Z(5axis)
Laser Type	DIODE
Engraving Speed	5000dots/s
Cooling Mode	Air Cooling
Brand Name	JX AUTO CNC
Dimension(LWH)	8009001000mm
Laser	Semiconductor DIODE
Weight (KG)	300KG
Engraving Area	300mm400mm150mm
Laser device	Coherent
maximum pulse energy	1.2mj
Resolution	1200DPI
Laser Type	Diode
beam quality	M2<1.5
Lifetime	25000hours
software	1. Dots cloud 2. for optimizing & control machine
Graphic Format Supported	BMP, DST, DWG, DXF, DXP, PLT, OBJ JPG
Positioning accuracy	10um
Gross power/noise	1.5w/50db
Voltage	AC220v±10%50-60Hz

Details Images

Engraving Principle

Functions

Engraving plane or three-dimensional patterns in transparent materials such as crystal and glass.
It can engrave 2D / 3D portraits, personal footprints, trophies and other personalized gift souvenirs, and can also mass-produce
2D / 3D animals,plants, buildings, cars, ships, aircraft and other model products and 3D scene display.

Samples
